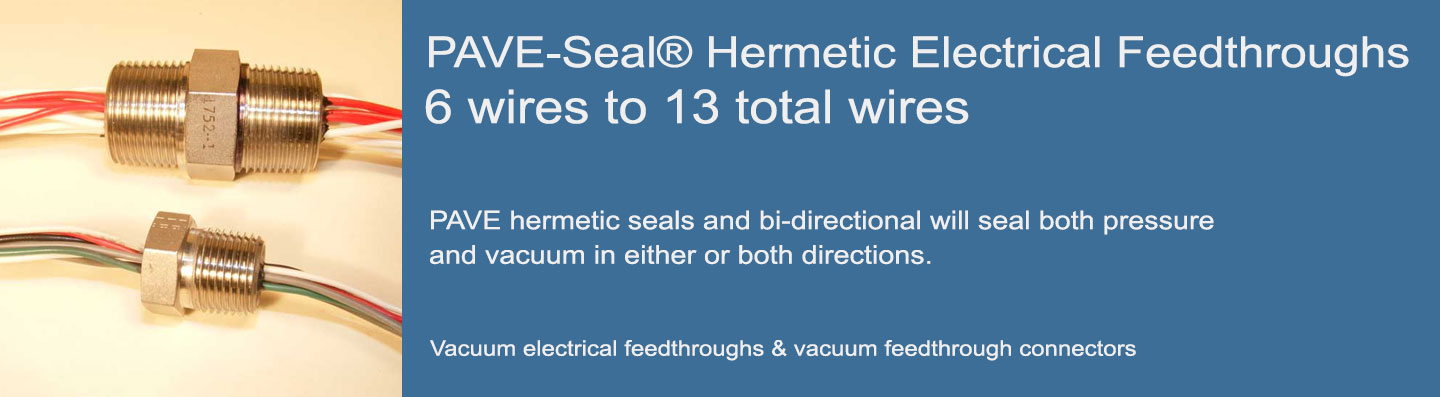

PAVE-Seal® Hermetic Electrical Feedthroughs

Hermetically Sealed Wire or Cable Harness Feedthrough Bulkhead Connectors

6 wires to 13 total wires

Any type of commercial or military type insulated electrical wire or jacketed cable is available as a hermetic, gas-tight, fluid-tight, vacuum-tight bulkhead pass through seal for both low and high Pressure And Vacuum Electrical seals including bi-directional pressure direction uses. Operating temperatures can vary and be modified depending on the design and materials from -200C to 200C depending upon the design and customer requirements. All our seals are hermetic, meaning they will pass a very low helium leak test (10^-9cc/sec depending on design), regardless of the leak test shown on the drawings that also can be modif2704ied. In most cases, the seals are also capable of significantly higher pressure as well than what may be shown on the drawings if so requested. There is no detectable leakage of gasses or fluids anywhere in the seal including through the interior of the wires and the wires can be cut shorter with no effect on the seal.

Both standard and custom design hermetic seal designs are available for both small and large quantities with a variety of mounting styles and cost-efficient and compact high wire density space-saving designs, most using o-rings either piston or face seal with NPT seals and electron or laser weld designs also available. Our hermetic epoxy wire seals are highly resistant to chemicals of all types including solvents, fuels, oils and gasses and are NASA and AMAT approved for low outgassing in high vacuums to 10^-8 Torr. Epoxy samples are also available for customer testing as well.

The below listing has PDF links to our current designs, arranged in ascending order of the number of wires or conductors grouped in mounting style. If you need a customized hermetic wire feedthrough seal, please either mark up any PAVE drawing for your desired changes or send your own drawing or sketch for quoting and we will be glad to quickly assist you in your hermetic seal design requirements.
Hermetic Electrical Feedthroughs

Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.

Summarized listing of Hermetic Designs by number of conductors, sizes and types

6 wires to 13 total wires

Thumbnail Installation Wire Type Total Wires PAVE Description Wires 1 AWG # Wires 2 AWG # Part #

950

M24 PTFE 6 M24-AL-150-6-HARM20-4-2 KEMA 6 20     950

1732

M24 PTFE 6 M24-V-150-2/2/2-TE22-6-144/24/6 6 22     1732

1984

M24 PTFE 6 M24-V-80-6-TE22-625-150mm 6 22     1984

5077

3/4″mNPT PTFE 6 PT12-SS-200FR-2/2/2-TEE8/16/22-48-48 2 8 2+2  16+22  5007

4805

1″ NPT PTFE 6 PT16-SS-150-6-TEE10-48-96 6 10     4805

5046

1″ mNPT FEP 6 PT16-SS-150-6-FEP12-120-72 6 12     5046

2180

1″ NPT ETFE 6 PT16-B-80-6-TZ8-12-12 6 8     2180

0771

1″ NPT PTFE 6 PT16ES31-SG-200-6/2-EE22/RG303-X-Y+24 6 22     0771-1

2605

1″ NPT PVC 6 PT16-SS-150-4/2-PC10-22-12-30 4 10   22 2605

4346

⅜” NPT PTFE 6 PT6-B-150-2/2SP-TE18/TE26-24-4 18 4 26 4346

1720

⅜” NPT PTFE 6 PT6-SS-80-6-TEE18-6-6 6 18     1720

4760

¼” NPT PTFE 6 PT4-B-150-6-TE28-18-18 6 28     4760

1387

¼” NPT nipple PVC 6 PTN4-B-80-6-PC24-24-24 6 24     1387

3695

½” NPT PTFE 6 PT8-BN-150-4/2-TEE16/20-6-6 4 16   20 3695

3363

½” NPT ETFE 6 PTNL8-B-150-6-TZZ18-60-6 6 18     3363

2723

½” NPT PVC/Shield 6 PTN8-SS-150-1-METTLER CABLE-360-24 6 28     2723
  ½” NPT PTFE 6 PTN8-SS-150-6-TEE18-60-6 6 18     1619

2695

⅜” NPT PVC 6 S06-SS-150-6-G26-18-5 6 26     2695

4475

5.2mm piston o-rings PTFE 6 SP3.3-E-150-6-TE32-1.5-6 6 32     4475

2857

⅜” piston o-ring PTFE 6 SP6L-E-150-1-CW5103-36-8 6 28     2857

4202

½” piston o-rings FEP 6 SP8M-E-150-4C/1P-E28/K24S-36-36 4 28   24 Type K 4202

4635

½” piston o-ring PTFE 6 SP10M-E-150-4/2-TE28/TEE12-15-15 4 28   12 4635

3483

17.37mm piston o-rings PTFE 6 SP11M-E-150-6-TE30-36-36 6 30     3483
  17.37mm piston o-rings PTFE 6 SP11M-E-150-2/4-TE14/18-12-8 2 14 4 18 1678

2775

17.37mm piston o-rings PTFE 6 SP11M-E-150-3TSP-TE20-48-96 6 20     2775

2488

1.84″ piston o-rings Polyolefin 6 SP26-E-150-4/2-XLP8/18-12-24 4 8   18 2488

1812

⅜” piston o-rings PTFE 6 SP6-E-150-6-TEE28-25-9 6 28     1812

1597

⅜” piston o-rings PTFE 6 SP6-E-200-3TP-TE26-6-24 6 26     1597

1618

⅜” piston o-rings PTFE 6 SP6-E-200-3TP-TE26-6-24 6 26     1618

4158

⅜” piston o-rings PTFE 6 SP6-E-200-6-TE28-72-72 6 28     4158

1753

⅜” piston o-rings PTFE 6 SP6-E-200-6-TE28-72-72 6 28     1753

5044

3/8″ piston o-ring PTFE 6 SP6L-E-150-6-TE28-15CM-15CM 5k psi 6 28     5044

2704

½” piston o-rings PTFE 6 SP8L-E-150-6-TK24-25-50CM 6 24     2704

4791

½” piston o-ring seal PTFE 6 SP8M-E-150-6-TE24-12-12 6 24     4791

2895

½” piston o-rings PTFE 6 SP8M-E-150-2TP/1P-TE26/KT24-36 4 26   24 2895

2519

½” piston o-rings PTFE 6 SP8M-E-200-6-TE22-50mm-350mm 6 22     2519

2570

½” piston o-rings PTFE 6 SP8M-E-200-6-TE24-100mm-350mm 6 24     2570

4740

½” piston o-rings ETFE 6 SP8S-E-200-6-TZ22-10-6 6 22     4740

889

½” piston o-rings PVC 6 SP8S-E-150-3P-IPC24-12-12 6 24     889

4705

½” piston o-rings seal ETFE 6 SP8L-E-200-6-TZZ18-12-12 6 18     4705

3867

¾” piston o-rings PTFE 6 SPF12-PK-150-3-TSP22-36-12 shielded pairs 6 22     3867

699

¾” piston o-rings PTFE 6 SPF12-E-150-1C/2-4EE22S/EE12-24-35 6 12     699

1830

¾” piston o-rings PTFE 6 SPF12-E-150-2/4-TEE10/16-24-36 2 10 4 16 1830

1408

¾” piston o-rings PTFE 6 SPF12-E-150-6-TEE18-4-4 6 18     1408

5024

¾” piston o-ring seal ETFE 6 SPF12-E-150-6-TZ18-20T-7T 6 18     5024

5026

¾” piston o-ring seal ETFE 6 SPF12-E-150-6-TZ18-20T-7T 6 18     5026

5045

¾” piston o-ring seal ETFE 6 SPF12-E-150-6-TZ18-21-8 6 18     5045

5025

¾” piston o-ring seal ETFE 6 SPF12-E-150-6-TZ18-6.4T-7T 6 18     5025

2491

¾” piston o-rings PTFE 6 SPF12-E-150-6-TZZ18-533-188mm 6 18     2491

2563

¾” piston o-rings Polyethelene 6 SPF12-E-150-6-XLPE18-636-188mm 6 18     2563

4807

¾” piston o-ring ETFE 6 SPF12L-E-150-2/4-TZ16/18-9-54 2 16 4 18 4807

4997

¾” piston o-ring PTFE 6 SPF12-E-150-3TSP-TE22-36-15 twisted shielded pairs 6 22 shielded 4997

3595

⅞” o-ring face seal PTFE 6 VS7F-SS-150-6-E26-4-35 AMAT 0090-09016 6 24     3595

1218

¾” piston o-rings PTFE 6 VS12b0666-B-150-6-TEE16-36-3 6 16     1218

1605

¾” o-ring face seal PTFE 6 VS12-SS-150-6-TE20-12-12 6 20     1605

3384

0.86″ piston o-rings PTFE 6 SPF14-E-150-2/2/2-E18/E16/GXL12-29-39   12 4 18 3384

4064

27.79mm piston o-ring GXL 6 SPF14-E-150-2/4-GXL18/12-59-79 2 18 4 12 4064

4817

1″ piston o-ring PTFE 6 SP16-E-150-6-TEE12-36-36 6 12     4817

4660

1″ piston o-ring ETFE 6 SP16-E-150-6-TZ14-12-12 6 14     4660

1816

1″ o-ring face seal PTFE w/foil 6 VS15-SS-150-1-6c-20-19-3.75 6 20     1816

1784

1¼” o-ring face seal PTFE 6 VS18-SS-200-6-TEE12-12-12 6 12     1784

3306

1⅝” o-ring face seal PTFE 6 VS22-SS-150-6-TEE10-144-72 6 10     3306
  ½” o-ring face seal PTFE 6 VS8-B-150-3TP-TE26-6-24   26     944

1815

½” o-ring face seal PTFE 6 VS8-B-80-4/2-TEE28/22-12-12 4 28   22 1815
  ½” o-ring face seal PVC 6 VS8-B-80-6-pc22-UL1061-240M-275M 6 22     1696
  ½” o-ring face seal PTFE 6 VS8-B-80-6-TE26-24-24 6 26     886

2357

½” o-ring face seal PTFE 6 VS8-SS-80-6-TE24-12-12 6 24     2357

2492

⅜” NPT PVC 7 PT6-SS-150-7-PC22-24-24 7 22     2492

1765

½” NPT PVC 7 PT8-PS-80-TUBE/C-.25tube/7#26-6-38 7 27     1765

769

1″ NPT PTFE 7 PTES31-SG-200-7-E22-24-24 7 22     769

4340

¾” NPT nipple PVC 7 PTN12-SS-150-7-THHN12-36-36 7 12     4340

2890

17.37mm piston o-ring rf 7 SP11M-E-150-2/1-3-TEE18/RG174-TEE26-18-6 5 18     2890

4882

½” piston o-ring PTFE 7 SP8L-E-150-7-E24-10-10 7 24     4882

3934

½” piston o-rings FEP 7 SP8L-E-150-7-TK24-20-16 7 24     3934

3358

½” piston o-rings PTFE 7 SP8L-E-150-7-TK24-25-50CM 7 24     3358

1705

½” piston o-ring PTFE 7 SP8M-E-80-7-TE22-10-10 7 22     1705

1320

0.563″ piston o-ring PTFE 7 SP9/128-E-200-3/2/1-EE16/26/TSP 7 24     1320

4632

¾” piston o-ring PTFE 7 SPF12-E-150-7-TE26-18-18 7 26     4632

4605

¾” piston o-ring ETFE/PTFE 7 SPF12-E-150-3/4-TZ12/TEE24-8-18 3 12 4 24 4605

1136

¾” piston o-ring PTFE 7 SPF12-E-150-4/1/1-TEE18/2C20/TI 7 18     1136

2805

¾” piston o-ring PTFE 7 SPF12-E-150-7-TEE20-18-18 7 20     2805

2926

¾” piston o-ring ETFE 7 SPF12-E-150-7-TZZ20-18-18 7 20     2926

2100

¾” piston o-ring ETFE/shield 7 SPF12-E-200-1/3TSP-TZ20/24-18-18 1 20 6 24 2100

1818

½” o-ring face seal PTFE/shield 7 VS8-SS-150-7S-TE26-12-12 7 26     1818

1817

½” o-ring face seal PTFE 7 VS8-SS-150-7-TEE26-12-12 7 26     1817

4562

NW12 o-ring seal PTFE 8 V6-304SS-150-8-ET28-762mm-762mm 8 28     4562

4033

NW16 Flange Kapton 8 NW16-AL-150-4TP-K24-8-8 8 24     4033

1821

¼” NPT PTFE 8 PT4-SS-150-8-TE26-12-12 8 26     1821

4362

¾” NPT PTFE 8 PT12-B-150-8-TEE14-72-72 8 14     4362

4774

¾” piston o-ring PVC 8 SPF12-E-150-1-CAT6-500mmT-500m CAT 6 8 24     4774

4678

1 ” piston o-ring PVC 6 SP16-E-150-RJ45 Cat5 Cat6 ethernet SMFO CAT6 RJ45     4678

4033

NW 16 Flange Polyimide #24 8 NW16-AL-150-4TP-K24-8-8 24 Kapton wire       4033

4528

KF25 NW25 QF25 DN25 ISO flange FEP 8 NW25-SS-150-1-CAT6A-39T-39T RJ45 CAT6 CAT5 LAN Ethernet 8 24     4528

3407

1″ NPT CAT 5 PVC 8 PTN16-SS-150-1-CAT5-600-24 RJ45 (Ethernet) 8 24     3407

2438

¾” SAE PVC 8 S012-AL-80-3/5-PC18/26-12-5 3 18 5 26 2438

2471

¾” SAE PTFE 8 S012-SS-80-8-TE32-*-X 8 32     2471

1522

½” SAE PTFE 8 S08-SS-150-8-TE24-24-24 8 24     1522

2078

17.37mm piston o-ring PTFE 8 SP11M-E-150-2/6-TE14/26-80-80CM 2 14 6 26 2078

1845

17.37mm piston o-ring PTFE 8 SP11M-E-150-3/5-TE14/TE22-12-12 3 14 5 22 1845

2496

17.37mm piston o-ring PTFE 8 SP11M-E-150-3/5-TE14/TE22-7-5 3 14 5 22 2496

4604

17.37mm piston o-ring seal ETFE 8 SP8S-E-150-8-3/5-TZ20/TZ24-16-6 3 20 5 24 4604

3554

17.37mm piston o-ring PTFE 8 SP11L-E-150-2/6-TEE10/TE22-24-36   10 6 22 3554

2153

¾” piston o-ring PTFE 8 SP12X-E-150-3/5-TE14/26-12-4 3 14 5 26 2153

2122

1″ piston o-ring GXL 8 SP16-E-150-1TSP/2/6-FP20/GXL12/GXL16-47-12 6 16   12 2122

2643

1″ piston o-ring PTFE 8 SP16-E-150-3/5-TEE10/24-24-24 3 10 5 24 2643

4820

1″ piston o-ring ETFE 8 SP16-E-150-8-TZ16-800-800mm 8 16     4820

3442

⅜” piston o-ring PTFE 8 SP6-E-200-8-TE32-24-24 8 32     3442

1413

⅜” piston o-ring PTFE 8 SP6-E-150-4TP-TE28-24-24(WHT) 8 28     1413

5067

1″ o-ring face seal Cat5eE 8 VS15L-SS-150-1-CAT5e-84T-144T6 8 24     5067

4582

½” piston o-ring PVC/PTFE 9 SP8/100-E-150-8/1-PC24/RG178-16-16 8 24 1 rg 178 4582

4581

½” piston o-ring PVC 8 SP8/100-E-150-8-PC24-24-14 8 24     4581

1854

½” piston o-ring PTFE 8 SP8A-E-150-8-TE24-6-6 8 24     1854
  ½” piston o-ring PVC 8 SP8-E-80-8-PC26-18-8 8 26     989

2274

½” piston o-ring PTFE 8 SP8L-AL-150-8-TE26-18-18 8 26     2274

2965

½” piston o-ring PTFE 8 SP8M-E-150-2/6-TEE18/26-12-12 2 18 6 26 2965

2333

½” piston o-ring PTFE 8 SP8M-E-200-8-TEE26-2-12 8 26     2333

4937

½” 12mm piston o-ring ETFE 8 SP8S-E-200-8-TZ24-800-600mm 8 24     4937

4569

½” piston o-ring   8 SP8S-E-150-8-TE24-800-600mm 8 24     4569
  ½” piston o-ring PTFE 8 SP8S-E-150-2/6-TE22/26-200-200mm 2 22 6 26 2615

1429

½” piston o-ring PTFE 8 SP8S-E-150-5/3-TE26/TE20-12-12 8 26     1429

1846

½” piston o-ring PVC 8 SP8S-E-150-8-IPC22-24-24 8 22     1846

1795

½” piston o-ring PTFE 8 SP8S-E-150-8-TE24-24-24 8 24     1795

4061

½” piston o-ring ETFE 8 SP8-E-200-8-TZ22-36-36 8 22     4061

4633

¾” piston o-ring PTFE 8 SPF16L-E-150-8-TE16-18-18 8 16     4633

3688

¾” piston o-ring PTFE 8 SPF12-E-150-1C/2/2-4EE22S/EE18/EE16-12-12 4 22 4 18 3688

3866

¾” piston o-ring PTFE 8 SPF12-PK-150-4-TSP22-36-12 shielded pairs 8 22     3866

2396

¾” piston o-ring PVC 8 SPF12-E-150-2/2/4-PC14/24/28-10 2 14 6 28 2396

2509

¾” piston o-ring PTFE 8 SPF12-E-150-3/5-TE14/28-32-12 3 14 5 28 2509

2699

¾” piston o-ring PTFE 8 SPF12-E-150-3/5-TEE18/24-12-12 3 18 5 24 2699

2844

¾” piston o-ring ETFE 8 SPF12-E-150-3/5-TZ16/22-19-5 3 16 5 22 2844

698

¾” piston o-ring PTFE 8 SPF12-E-150-8-TEE18-7T-4T 8 18     698

2784

¾” piston o-ring PTFE 8 SPF12-E-200-3/5/1P-TEE14/20/KT20-12-48 3 14 5 20 2784

2081

¾” piston o-ring PVC 8 SPF12-E-80-8-PC20-15.5-2T 8 20     2081

2099

¾” piston o-ring PVC 8 SPF12-E-80-8-PC20-15.5-2T 8 20     2099

4640

¾ piston o-ring PTFE 8 SPF12-E-150-2/4/2-TE20/TE22/TE26-300-12 8 20-26     4640

4709

1″ piston o-rings seal ETFE 8 SP16-E-150-4/4-TZ14/20-12-12 4 14 4 20 4709

3413

1⅞” piston o-ring ETFE 8 SP26S-E-200-6/2-TZ8/18-24-24, 6 8   18 3413

4483

½” o-ring face seal PTFE 8 VS8-SS-150-8-TE24-200mm-200mm 8 24     4483

1800

¾” o-ring face seal PTFE/foil 8 VS12L-SS-150-2-CABLE 4/#22-6-6 8 22     1800

1952

¾” o-ring face seal PTFE/tc 8 VS12L-SS-150-4/2P-TEE16/KT24-24-24 4 16 4 24 1952

2281

¾” piston o-ring PVC 9 FL12-AL-150-9C/PP23-12-33 9 23     2281

2165

¾” NPT PTFE 9 PT12-SS-150-9-TE18-12-23 9 18     2165

1892

½” NPT PTFE 9 PT8-SS-150-9-TE22-12-12 9 22     1892

3110

¾” NPT nipple PTFE 9 PTN12/M20-SS-200-9-TEE18-48-24 9 18     3110

1752

¾” NPT nipple PTFE 9 PTN12-SS-200-9-TEE18-24-48 9 18     1752

4338

¾” NPT nipple PVC/PTFE 9 PTN12-SS-150-9-THHN18-36-36 9 18     4338

367

1½” NPT nipple PVC/PTFE 9 PTN24-PS-150-9-THHN\TEE10-100-11 9 10     367

3574

½” NPT nipple PTFE 9 PTN8-SS-200-9-TEE18-24-48 9 18     3574

1250

½” NPT ETFE 9 PTN8-SS-200-9-RA22-6-16 9 22     1250

2046

½” NPT nipple PTFE 9 PTN8-SS-200-9-TEE18-24-48 9 18     2046

5004

3/4″-12 SAE o-ring ETFE 9 SO12-SS-200-9-TZ20-3-3 9 20     5004

3437

¾” SAE PVC 9 S012-AL-150-9-PC20-12-6 9 20     3437

1771

¾” SAE PTFE 9 S012-SS-200-3/4/1P-TE26/24/JT24-250cm-60cm 7 26   24 1771

1384

1-1/16″ SAE PTFE 9 S016-SS-150-4TP/1-TE28/22-72-36V 9 28     1384

4522

⅜” piston o-ring seal PTFE 9 SP6-E-150-9-TE28-19.7-19.7 9 28     4522

1130

17.37mm piston o-ring PTFE 9 SP11-E-4/5-TE18/14-24-24 9 14     1130

1749

17.37mm piston o-ring PTFE 9 SP11L-E-150-7/1TSP-TE24-25CM-50CM 9 24     1749

1423

17.37mm piston o-ring PTFE 9 SP11L-E-150-9-TE24-25CM-50CM 9 24     1423

3218

17.37mm piston o-ring PTFE 9 SP11L-E-150-9-TE26-650MM/800MM-150mm 9 26     3218

1375

17.37mm piston o-ring PTFE 9 SP11M-E-80-5/4-TE14/18-24-8/4 5 14 4 18 1375

1411

1″ piston o-ring PTFE 9 SP16-E-150-6/3-TEE18/24-.14M-.31M 9 18     1411

2713

½” piston o-ring PTFE 9 SP8L-E-150-9-22-SC-SC 9 20     2713

2951

½” piston o-ring PTFE 9 SP8L-E-150-9-LAPPWIRE-50CM-50C 9 22     2951

3179

½” piston o-ring PTFE 9 SP8L-E-150-9-TE28-24-24 9 28     3179

2170

½” piston o-ring PTFE 9 SP8L-E-150-9-TK24-25CM-50CM 9 24     2170

4176

½” piston o-ring seal ETFE 9 SP8L-E-150-9-TZ22-4-9-4 DOUBLE seal 9 22     4176

597

½” piston o-ring PTFE 9 SP8L-E-150-9-TZ22-28-28 9 22     597

4851

½” piston o-ring ETFE 9 SP8M-E-150-9-TZ22-12-120 9 22     4851

2414

½” piston o-ring Kapton 9 SP8M-E-150-9-K22-80-12 9 22     2414

2018

½” piston o-ring PVC 9 SP8M-E-150-9-PC22-12-12 9 22     2018

3711

½” piston o-ring PTFE 9 SP8M-E-150-9-TE26-11-72 9 26     3711

3277

½” piston o-ring PVC 9 SP8S-E-150-9-IPC24-24-24 9 24     3277

1357

½” piston o-ring PTFE 9 SP8S-E-200-9-TE24-24-24TE=22759/11 9 24     1357

2314

¾” piston o-ring PTFE 9 SPF12-E-150-7/1-TEE18/2C20-13cm-* 7 18   20 2314

2101

¾” piston o-ring ETFE 9 SPF12-E-200-1/2/3TP-TZ16/20/24-18-18 1 16 8 24 2101

4641

¾ piston o-ring PTFE-FEP 9 SPF12-E-150-2/4/1-TSP24/TE26/COAX-300-12 9 24-26 1   4641

4685

44mm weld hermetic PVC 10 FL44MM-SS-150-M17 coax Cat5e RS232 RS 485 USB         4685

2949

M24 Valox PVC 10 M24-V-150-1-10C-PVC22-216-24 10 22     2949

1731

M24 Valox PTFE 10 M24-V-150-2/2/6-TE22-6-144/24/6 10 22     1731

4188

¾” NPT PVC 10 PT12-B-150-10-TFFN18-300-66 10 18     4188

4479

1″ NPT nipple PTFE 10 PTN16-SS-150-5TSP-TE16-72-180 shielded pairs 10 16     4479

3135

1″ NPT PTFE 10 PT16-SS-150-10-EE16-100FUSED-BIW12#16 10 16     3135

1655

1″ NPT PVC 10 PT16-SS-80-10-PC12-120-120 10 12     1655

4934

1.25″ mNPT ETFE 10 PT20-SS-150-10-TZZ10-65-65 2800 psi 10 10 4934

2431

1¼” NPT PVC 10 PT20-B-80-2/2/1/4/4-TEE8/10/16/18/22-T-* 2 8 8 10 2431

1529

¼” NPT PTFE 10 PT4-SS-80-10-TE26-12-12 10 26     1529

2268

¾” SAE PTFE 10 S012-AL-150-10-TE24JS-48-18 10 24     2268

1690

¾” SAE PTFE 10 S012-SS-150-10-TEE24-12-12 #1690 10 24     1690

2525

¾” SAE PTFE 10 S012-SS-150-3/7-TE24/28-12-12 3 24 7 28 2525

2783

1-1/16″ SAE SAE cable seal 10 S016-SS-200-10-TEE18-36-18 10 18     2783

1265

0.737″ piston o-ring 2x PTFE/foil 10 SP11.8-E-200-5-5TSJP-E20/24/26-48-56 10 20     1265
  17.37mm piston o-ring PTFE 10 SP11-E-150-4/6-TE16/TE20-36-6 10 16     870

2316

17.37mm piston o-ring PTFE 10 SP11L-E-150-1O-TE24-60-15cm 10 24     2316

2273

17.37mm piston o-ring PTFE 10 SP11M-AL-150-10-TE20-18-18 10 20     2273

3400

17.37mm piston o-ring Silicone 10 SP11LX-E-150-10-S26S-200-36 10 26     3400

3841

½” piston o-ring FEP 10 SP8L-E-200-10-TK24-200mm-200mm 10 24     3841

3589

½” piston o-ring PTFE Sn pl 10 SP8L-E-150-10-TK24-25-50CM 10 24     3589

2102

½” piston o-ring ETFE 10 SP8H-E-200-10-TZ22-12-12 10 22     2102

4639

½” piston o-ring ETFE 10 SP8L-E-150-8/2-TZ26/22-508mm-635mm 8 26   22 4639

2072

½” piston o-ring ETFE 10 SP8L-E-150-8/2-TZ26/22-500mm-500mm 8 26   22 2072

1782

¾” piston o-ring PTFE 10 SPF12-E-150-3/7-TE20/24-4-4 3 20 7 24 1782

2226

¾” piston o-ring ETFE/shield 10 SPF12-E-200-2TSP/3TSP-TZ22/TZ26-21-21 4 22 6 26 2226

1895

¾” piston o-ring PVC 10 SPF12-E-80-2/8-PC14/22-8-14 2 14 8 22 1895

4793

¾” o-ring face seal GXL & ETFE 10 VS12L-SS-150-10-GLX20/TZ20-20FT-5FT 10 20     4793

4783

1″ o-ring face seal ETFE 10 VS15L-SS-200-10-TZ20-12-12 10 20     4783

3707

1 ⅝ o-ring face seal   10 VS22-304SS-150-10-TZZ14-72-24 10 14     3707

3826

½” piston o-ring PVC 11 SP8M-E-150-9/2-PC24/20-12-76 9 24   20 3826

4707

½” piston o-rings seal PTFE 11 SP8M-E-150-2/9-TE24/28-12-12cm, 2 24 9 28 4707

4203

0.558″ piston o-rings PTFE 10 SP9/128-E-200-4TP/2-ET24/TE18-36-36 8 24   28 4203

2639

17.37mm piston o-ring PVC 11 SP11M-E-80-6/2P/2-RPC28/K24S/PC22-18-18 6 28 4 24 2639

4348

¾” piston o-ring PTFE 11 SPF12-E-150-9/1/1-TZ22/RG179/USB2.0-80-30cm 9 22 101 RG179/USB 4348

2306

¾” piston o-ring PTFE 11 SPF12-E-150-11-TE20-54-6 11 20     2306

4465

¾” piston o-ring PTFE 11 SPF12-E-150-6/5-E22/E28-6-10 6 22 5 28 4465

4181

11/16″ -24 SAE PTFE 9 VS11P-SS-200-3/6-TE24/28-6-182 3 24 6 28 4181

2447

1″ o-ring face seal PTFE/shield 11 VS15L-SS-150-3/1/1/1-4C/2C/2C/3C-6-6 11 22     2447

2282

0.85″ 0-ring face seal ETFE 11 VS16GD16-AL-150-6/5-TE16/20-6-26 6 16 5 20 2282

4450

2×1″ custom o-ring face seal flange PTFE 12 FL32/23-SS-150-12-TE26-24-24 12 26     4450

5069

NS40 KF40 flange PVC 12 NW40-SS-150-3- BELDEN 8489-36-36 12 18     5069

3848

NW40 Flange PVC 12 NW40-SS-150-3 CABLE-4C18-240-120 12 18     3848

1730

M24 Valox PTFE 12 M24-V-150-4/2/6-TE22-6-144/24/6 12 12     1730

2247

½” NPT PTFE 12 PT8-SS-150-12-TE26-12-12 12 26     2247
  ¾” NPT PTFE 12 PTF12-SS-150-6TP-TE24-12-24 12 24     981

1783

¾” NPT nipple PTFE 12 PTN12-SS-150-12-TEE16-72-72 12 16     1783
  ¾” NPT nipple PTFE 12 PTN12-SS-200-12-TEE18-24-24 12 18     2703

1630

¾” NPT nipple PTFE 12 PTN12-SS-200-12-TEE18-24-240 12 18     1630

0903

¾” NPT nipple PTFE 12 PTN12-SS-200-12-TEE18-24-48 12 18     0903

2466

¾” NPT nipple PTFE 12 PTN12-SS-200-12-TEE22-17-17 12 22     2466

4762

1″ NPT PTFE 12 PT16-SS-150-12-TEE18-23-23 12 18     4762

2171

1″ NPT nipple PVC 12 PTNL16-B-150-12-PC16-12-72 12 16     2171

4471

1½” NPT ETFE 12 PTN24-PS-150-12-TZ14-120-24 12 14     4471

1703

TIG Welded PTFE 12 PTW20L-SS-200-6TSP-TE18-36-144 12 18     1703

4169

.397″ piston o-ring PTFE 12 SPF8-E-150-9/3-TE28/26-10-10 9 28 3 26 4169

3418

0.558″ piston o-ring PTFE 12 SP9/128-E-5p/2-KT24/TE20-24-24 10 24   20 3418

375

17.37mm piston o-ring PTFE 12 SP11-E-150-12-TEE20-20CM-20CM 12 20     375

2391

17.37mm piston o-ring PTFE 12 SP11L-E-150-12-TEE20-12-12IN 12 20     2391

4416

¾” piston o-ring PTFE 12 SP12-E-150-12-ET26-36-6 12 26     4416

4042

25.37MM piston o-ring PVC 12 SP16-E-150-12-PC18-10-37 12 18     4042

430

1″ piston o-ring PVC 12 SP16-E-150-12-PC18-X-Y 12 18     430

1719

1″ piston o-ring PTFE 12 SP16-E-150-12-TE20-36-36 12 20     1719

2289

1″ piston o-ring PVC 12 SP16-E-150-6/6-PC22/14-4-4 6 22 6 14 2289

5058

1″ piston o-ring ETFE 12 SP16-E-200-8/4-TZ18/14-3-3 8 18 4 14 5058

2967

1″ piston o-ring PTFE/shield 12 SP16-E-150-6TSP-TE20-48-96 12 20     2967

4608

25.3mm o-ring piston seal FEP 12 SP16-E-150-12-FEP18-480/120-18 12 18     4608

4216

1″ piston o-ring PTFE 12 SP16-E-200-12-TEE18-24-24 12 18     4216

3152

1″ piston o-ring GXL 12 SP16-E-200-12-GXL20-50-50cm 12 20     3152

3189

31.67mm piston o-ring PTFE 12 SP20-E-150-8/4-TEE10/20-2-2m 8 10 4 20 3189

1792

½” piston o-rings PTFE 12 SP8H-E-150-12-ET24-12-12 12 24     1792

1277

½” piston o-rings PVC 12 SP8H-E-80-12-PC30-50CM-50CM 12 30     1277
  ½” piston o-rings PTFE 12 SP8L-E-100-6P-TE28-24-105 12 28     1300

2568

¾” piston o-rings PTFE 12 SPF12-E-150-10/2-EE24/EE18-12-60 10 24   18 2568

2366

¾” piston o-rings PTFE 12 SPF12-E-150-11/1-TEE24/RG179-120-30cm 11 24 1   2366

1829

¾” piston o-rings PTFE/shield 12 SPF12-E-150-12-TEE22-24TST-36PST 12 22     1829

3842

1″ piston o-ring seal PTFE 12 SP16-E-200-12-TEE18-3-8 12 18     3842

4025

39.45 pistion o-ring PVC 12 SP25-E-150-12-PC20-300mmT-300m 12 20     4025

2600

¾” face seal 5kV xlpe 12 VS12L-AL-150-12-Judd24-24-15 12 24     2600

4850

1¼” o-ring face seal ETFE 12 VS15L-SS-200-12-TZ16-12-12 12 16     4850

4778

1¼” o-ring face seal PVC 12 VS18-SS-150-3-USB-6ftUSBA-10ft USB B 12 26     4778

4431

1⅝” o-ring face seal PVC ETFE 12 VS22-SS-150-12-PC10/TZ10-40FT-3 12 10     4431

4355

⅝” o-ring face seal EFTE 12 VS22-304SS-150-12-TZ12-96-72 12 16     4355

2503

¾” NPT PVC/shield 13 PT12-SS-150-9/1-PC18/Alpha9504C-24-24 9 18 4 22 2503

1935

1″ NPT PTFE 13 PT16-SS-150-1-AWC1165-13J-240-72 13 22     1935
  ¾” SAE PVC 13 S012-SS-150-5/8-PC18/22-10-22 13 18     1160

1385

1-1/16″ SAE PTFE/shield 13 S016-SS-150-6TSP/1-TE28/22-72-36V 13 28     1385

2394

¾” piston o-rings PTFE 13 SP8S-E-150-13-TE28-5-5 13 28     2394

3940

17.37mm piston o-ring seal PTFE 13 SP11M-E-150-2TPT/4TP/3-TE24/TE26/MMFO-220-12         3940

4384

20,65mm piston o-ring ETFE 13 SPF13-AL-150-19-TZ22-17T-7T 13 22     4384

2604

¾” o-ring face seal PTFE 13 VS12L-AL-150-13-TE22-48-48 13 22     2604

1424

1″ o-ring face seal PTFE/shield 13 VS15L-SS-150-4C/4C/3C/2C-6-6 13 22     1424
