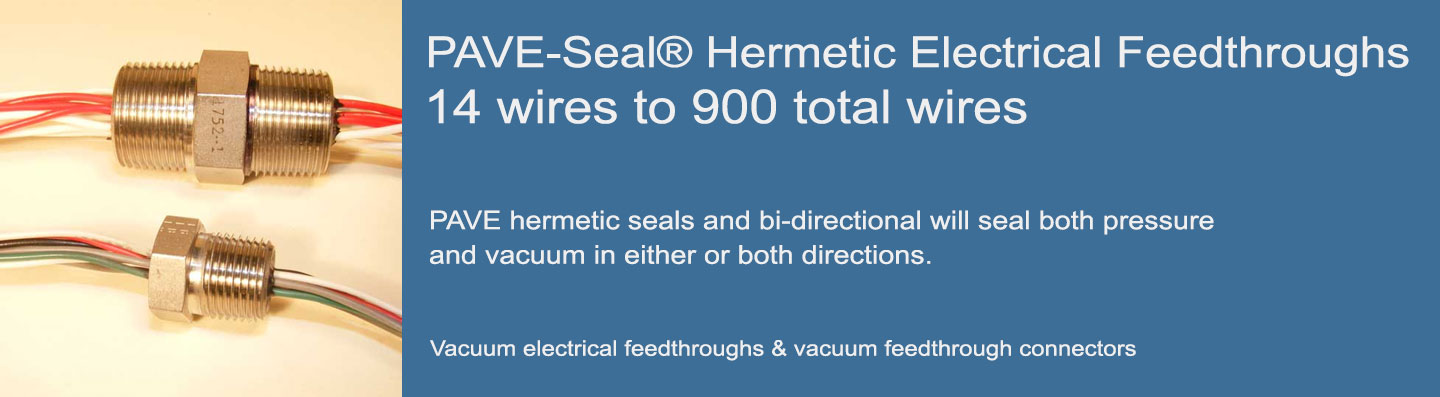

PAVE-Seal® Hermetic Electrical Feedthroughs

Hermetically Sealed Wire or Cable Harness Feedthrough Bulkhead Connectors

14 wires to 900 total wires

Any type of commercial or military type insulated electrical wire or jacketed cable is available as a hermetic, gas-tight, fluid-tight, vacuum-tight bulkhead pass through seal for both low and high Pressure And Vacuum Electrical seals including bi-directional pressure direction uses. Operating temperatures can vary and be modified depending on the design and materials from -200C to 200C depending upon the design and customer requirements. All our seals are hermetic, meaning they will pass a very low helium leak test (10^-9cc/sec depending on design), regardless of the leak test shown on the drawings that also can be modified. In most cases, the seals are also capable of significantly higher pressure as well than what may be shown on the drawings if so requested. There is no detectable leakage of gasses or fluids anywhere in the seal including through the interior of the wires and the wires can be cut shorter with no effect on the seal.

Both standard and custom design hermetic seal designs are available for both small and large quantities with a variety of mounting styles and cost-efficient and compact high wire density space-saving designs, most using o-rings either piston or face seal with NPT seals and electron or laser weld designs also available. Our hermetic epoxy wire seals are highly resistant to chemicals of all types including solvents, fuels, oils and gasses and are NASA and AMAT approved for low outgassing in high vacuums to 10^-8 Torr. Epoxy samples are also available for customer testing as well.

The below listing has PDF links to our current designs, arranged in ascending order of the number of wires or conductors grouped in mounting style. If you need a customized hermetic wire feedthrough seal, please either mark up any PAVE drawing for your desired changes or send your own drawing or sketch for quoting and we will be glad to quickly assist you in your hermetic seal design requirements.
Hermetic Electrical Feedthroughs

Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.

Summarized listing of Hermetic Designs by number of conductors, sizes and types

14 wires to 900 total wires

Thumbnail Installation Wire Type Total Wires PAVE Description Wires 1 AWG # Wires 2 AWG # Part #

4746

¾” NPT PTFE 14 PTN12-SS-150-14-TEE18-24-480         4746

2892

1″ NPT nipple PTFE 14 PT16-SS-150-1-14#22-15-6FT 14 22     2892

2328

1″ NPT PTFE 14 PT16-SS-150-14-TEE22-72-72 14 22     2328

2904

1″ NPT nipple PTFE 14 PTN16-SS-150-14-TEE22T-72-72 14 22     2904

1210

¾” SAE PTFE 14 S012SR-SS-14-TE24-2-36 LO PROFILE 14 24     1210

5056

17.37mm piston o-ring PTFE 14 SP11L-E-150-9/5-TE24/20-600-270mm 9 24 5 20 5056

4822

¾” o-ring piston seal PTFE 22 SP12-E-150-2/3/6-RG316/TSP26/TE20-500-220-500mm double seal 2 RG316 12 26/20 4822

4823

¾” o-ring piston seal PTFE 21 SP12-E-150-1/2/6-RG316/SMFO/TE20-500-220-500mm 1 RG316 SM fiber 26/20 4823

4852

¾” o-ring piston seal PTFE 14 SP12-E-150-2/3/6-RG316/TSP26/TE20-250-500mm 2 RG316 12 26/20 4852

2521

¾” piston o-ring PTFE/coax 14 SPF12-E-150-1/2/14-RG179/TE20/TE24-120-6 14 24     2521
  ¾” piston o-ring PTFE 14 SPF12-E-80-12/2-TEE28/22-TABLE-3 14 28     1255

4697

¾” piston o-ring PTFE 14 SPF12-E-150-10/4-E22/E24-16-9 10 22 4 24 4697

3837

¾” piston o-ring PTFE 14 SPF12-E-150-14-TE28-12-12 14 28     3837

1689

¾” piston o-ring PVC 14 SPF12-E-80-14-PC28-165-25CM 14 28     1689

4811

1″ piston o-ring PPE 14 SP16-E-150-14-MPPE24-2T-38T 14 24     4811

4846

1″ piston o-ring PPE 14 SP16-E-150-14-MPPE24-3-40 14 24     4846

2696

1⅝” o-ring face seal ETFE 14 VS22-304SS-150-14-TZ14-72-24 14 14     2696

2688

1⅝” o-ring face seal ETFE 14 VS22-SS-150-14-TZ14-168-72 14 14     2688

2276

1⅝” o-ring face seal PTFE 14 VS22-SS-150-6/8-TEE10/14-72-72 6 10 8 14 2276

3112

¾” SAE PTFE 15 S012-SS-150-15-TE28-12-12 15 28     3112

4364

¾” piston o-ring PTFE 15 SPF12-E-150-7TP/1-EE26/RG179-1200MM-300mm 15 26 1 RG179 4364

4996

¾” piston o-ring PTFE 15 SPF12-E-150-15-TEE22-36-15 15 22 4996

1814

¾” piston o-ring PTFE 15 SPF12-E-150-15-TEE22-13-13 15 22     1814

2244

0.610″ o-ring face seal PTFE 15 VS9CON610-N-15-TE26-6-6 15 26     2244

5027

NW40 flange ETFE 15 SP20S-E-150-15-TZ20-1.5-0.5m 15 20     5027

4649

NW40 flange PTFE 16 NW40-SS-150-16-TE18-72-20 16 18     4649

2004

¾” NPT nipple PTFE 16 PTN12-SS-200-16-TEE24-8-8 16 24     2004

4365

1″ NPT nipple PVC 16 PTNL16-B-150-8/8-PC14/18-12-26 8 14 8 18 4365

2923

17.37mm piston o-ring PTFE 16 SP11M-E-150-8TP-TE26-72-72 16 26     2923

1965

1⅞” piston o-ring PVC 16 SP26-E-80-1/10/6-RJ45/PC22/16-192-24 Ethernet 10 22 6 16 1965

1627

0.558″ piston o-rings PTFE 16 SP9/128-E-200-8TP-ET24-36-36 16 24     1627

3372

¾” piston o-ring PTFE 16 SPF12-E-200-16-TEE22-6-24 16 22     3372

4627

¾” piston o-ring PVC 16 SPF12-E-150-16-PC26-18-6 16 26     4627

1794

¾” piston o-ring PVC 16 SPF12-E-150-16-PC24-18T-6 16 18     1794

1589

¾” piston o-ring PVC 16 SPF12-E-80-16-PC28-50-400CM 16 28     1589

4872

¾” piston o-ring seal PTFE 16 SPF12W-E-150-16-TE28-18-18 16 28     4872

4806

1″ piston o-ring PPE 16 SP16-E-150-16-MPPE24-11T-48T 16 24     4806

4810

1″ piston o-ring mPPE Ecco wire 16 SP16-E-150-16-MPPE24-12-50 16 24     4810

4050

31,67mm piston o-ring PTFE 16 SP20-E-200-16-TEE16-72-12 16 16     4050

4842

1″ o-ring face seal PE/PVC 2 VS15L-SS-150-2-CAT5-20M-10M CAT5e RJ45 8 24     4842

4575

1″ o-ring face seal ETFE 16 VS15L-SS-200-4/4-TSP22/10599-36-60 shielded 8 22 8 22 4575

4576

1⅝” o-ring face seal ETFE 16 VS22-304SS-200-15-TZ16-48-48 15 16     4576

3223

1⅝” o-ring face seal ETFE 16 VS22-304SS-150-16-TZ14-96-24 16 14     3223

4449

flange 1×2″ PTFE 17 FL32/23-SS-150-17-TE26-24-24 17 26     4449

2903

¾” piston o-ring PTFE/coax 17 SPF12-E-150-1/4/12-RG188AU/TE20/24-120-6 16 20 1 rf 2903

1243

1″ piston o-ring PTFE 17 SPF16L-E-200-3/3/9/2-TE10/12/14/22-20-30 17 10     1243

1185

¾” NPT nipple PTFE 18 PTN12-SS-200-1-12W CABLE-10FT   12 18   1185-1

4911

1″ NPT nipple PTFE 18 PTN16-SS-150-6-TST18-240-24 shielded triads 18 18 shielded   4911

4478

1″ NPT PTFE 18 PTN16-SS-150-6-TST18-72-180 shielded triad 18 18     4478

1801

1″ NPT nipple PTFE 18 PTN16-SS-200-18-TEE18-24-48 18 18     1801
  1″ NPT nipple PTFE 18 PTN16-SS-200-18-TEE18-24-48 18 18     2596
  1⅞” SAE PVC 18 S026-PS-150-18-PCC12-130CM 18 12     1275

2859

17.37mm piston o-rings PTFE 18 SP11M-E-200-18-TE24-6-24 18 24     2859

4024

39.45mm piston o-ring PVC 18 SP25-E-150-18-PC24-300mmT-300mmT 18 24     4024

3536

¾” o-ring face seal USB PVC 19 CONXALL-150-2/2/11/1-PC20/22/26/USB-X-Y 15 22 1 usb 3536

3621

1″ NPT PTFE 19 PT16-B-150-19-TE14-48-48 19 14     3621

2638

½” SAE ETFE 19 S08X-AL-150-19-TZ30-15-15 19 30     2638

1516

17.37mm piston o-rings PTFE 19 SP11M-E-80-19-TE26-180CM-7CM 19 26     1516

4849

1¼” o-ring face seal ETFE 19 VS18RH-SS-200-19-TZ16-12-12 19 16     4849
  ¾” NPT PTFE 20 PT12-SS-80-20-TEE20-24-24 20 20

4859

2¾” o-ring face seal PVC 19 VS44-SS-150-1/6/12-THHN2/10/12-300-240 1   6 & 12 10 & 12 4859

3472

¾” o-ring face seal USB PVC 20 CONXALL-150-2/7/7/1-PC20/22/26/USB-24-24 16 22 1 USB 3472

2149

1″ NPT PTFE 20 PT16-SS-200-20-TE16-24-24 20 16     2149

1947

¾” piston o-ring PTFE 20 SPF12-E-150-20-TE28-24-10 20 28     1947

2278

¾” o-ring face seal PTFE 20 VS12L-SS-80-20-TE28-60-20cm 20 28     2278
  1⅝” o-ring face seal PTFE 20 VS22-SS-150-20-TEE14-48-48 20 14     1932

4658

1⅞” o-ring face seal PFA 20 VS26-SS-150-10-TSP24-39-39 20 24     4658

915

1⅞” o-ring face seal PTFE 20 VS26-SS-150-20-TE16-1.2M-1.2M 20 16     915
  1″ NPT PTFE 21 PT16-B-80-21-TE28-12-12 21 28

2298

17.37mm piston o-rings PTFE 21 SP11M-E-200-21-TET26-180CM-7CM 21 26     2298

3198

1¼” NPT nipple Kapton 22 PTN20-SS-150-24-K22-60-60, Kapton wire 24 22     3198

4445

25,55mm piston o-rings PRFE 22 SP16-E-150-22-TE20-28-18 22 20     4445

2959

1″ piston o-rings 3kV Silicone 22 SP16-E-150-22-HV22-18-18 22 22     2959

930

¾” piston o-rings PVC 22 SPF12-E-150-19/3-PC24/TFCPO15-48-12 22 24     930

4630

¾ piston o-ring PVC 22 SPF12-E-150-19/3-PC26/TFCP015-48-12 19 26 3 30 chromel 4630

4887

¾” piston o-ring PVC 23 SPF12-E-150-2/13/1-PC20/PC28/CAT5-12-12 RJ45 1 & 13 20 & 28 Cat5   4887

4936

1″ NPT PTFE 24 PT16-SS-150-24-TE20-65-65 1900 psi 24 20     4936

5003

  ETFE 12 SO16-SS-200-8/4-TZ18/14-3-3 8 18 4 14 5003

4714

¾” piston o-ring seal PVC & PTFE 24 SPF12-E-150-21/3-PC26/TFCP015-48-12 21 26 thermistor 30 4714

5008

31.7mm piston o-ring PTFE 24 SP20S-E-150-24-TE18-28-28 24 18 5008

2116

o-ring face seal flange PTFE 24 BPE1.5-SS-150-24-TE22-180-120 24 22     2116

2045

1⅞” SAE PVC 24 S026L-SS-150-1-CABLE-500FT-6FT 24 18     2045

4779

1¼” o-ring face seal CAT5e RJ45 LAN 24 VS18-SS-150-3-CAT5E-12ftT-10ftT CAT5e RJ45 ethernet 3 Cat5e     4779

3416

1¼” o-ring face seal PTFE 24 VS18-SS-200-24-TEE20-72-72 24 20     3416

4494

1⅞” o-rings face seal PTFE 24 VS26-SS-150-24-TE22-60-60 24 22     4494

2204

1⅞” o-rings face seal PTFE 24 VS26-SS-200-24-TE20-240-240 24 20     2204

1823

1″ NPT PTFE 25 PT16-SS-200FR-25-#22CABLE-18-18 25 22     1823
  1″ NPT PVC 25 PT16-SS-80-25-PC22-120T-120T 25 22     1654

2571

0.89″ piston o-ring PTFE 25 SP15X-E-150-25-TE26-29-6T 25 26     2571

4782

1¼” o-ring face seal ETFE 25 VS18RH-SS-200-14/5/6-TZ16/20/22-12-12 14 16 11 22 4782

1617

2½” o-ring face seal PVC dsub 25 VS32-SS pc & mic cable assembly 25 26     1617

1617

1¼” o-ring face seal PTFE 28 VS18-SS-150-12/16-TEE18/26-20-20 12 18 16 26 1981

4863

2¾” o-ring face seal PVC 28 VS44-SS-150-1/12/9/3/1-THHN2/10/12/ 1   21 10 & 12 4863

4857

2¾” o-ring face seal PVC 40 VS44-SS-150-4/4/2-CAT6A/RG58U/6MMFO Cat6a 40 cat6a rg58 fiber   4857

2251

¾” piston o-ring PTFE 29 SPF12-E-150-29-TEE24-24-24 29 24     2251

1985

2½” o-ring face seal PTFE 29 VS32-SS-150-7/5P/12-TES24/KT20/TE20-360-240 19 24 10 20 1985

4832

2¾” Conflat flange PVC 30 shielded 3/C CF275-SS-150-10-TST22-120-120 30 22     4832

1852

Double ended cable assy Urethane 30 005 CABLE 38999×2 15P W/COAX PLUG 30 22     1852
  Custom flange PTFE 30 fl1567-AL-150-4/26-COAX/AW29-*-* 4   26 29 2270

1509

NW 40 flange PTFE 30 nw40KF40-SS-150-3P/30-KT24/TE24-108-36 30 24     1509

2151

1″ NPT PTFE 30 PT16-SS-200-30-TE20-24-24 30 20     2151

1822

1″ NPT PTFE 30 PT16-SS-200FR-30-#22CABLE-18-18 30 22     1822

1733

1¼” piston o-ring ETFE 30 SPF18-E-80-30-TF22-15-14 30 22     1733

4876

1″ o-ring face seal PTFE 30 VS15XL-SS-150-4/26-TE22/TE30-12-12 4 22 26 30 4876

1701

1″ o-ring face seal PTFE 30 VS15L-SS-150-30-TE30-600mm-600mm 30 30     1701

2112

1¼” o-ring face seal PTFE 30 VS18-SS-80-30-TEE24-72-8 30 24     2112

1793

1⅝” o-ring face seal XL polyolefin 30 VS22-SS-150-30-IPO18-24-72 30 18     1793

3305

1⅝” o-ring face seal PTFE 32 VS22-SS-150-32-TEE18-144-72 20 18     3305

1489

1⅝” o-ring face seal PTFE 32 VS22-SS-150-20/4/4P-TEE22/18/22 20 22 12 18 1489

3810

4×1″ o-ring face seal FEP 68 SP64/20-E-150-1-68-T30-36-36 SCSI cable seal68 68 30     3810

681

2½” o-ring face seal PTFE 33 VS32L-AL-150-33-TE10-480-480 33 10     681

2879

⅜” NPT PTFE 34 PT6H-SS-200HV-34-TE30-48-48 34 30     2879

4833

2¾” Conflat flange PVC 35 shielded CF275-SS-150-7C-5PC22-120-120 35 24     4833

1644

2¾” Conflat flange PTFE 35 CF275-SS-150-35-TE24-48-24 35 24     1644

3669

2 ¾” conflat PTFE 36 CF275-SS-150-18TP-E18-18-36 36 18     3669
  2¾” Conflat flange PTFE 36 CF275-SS-200-18TSP-TE26-20CM-20CM 36 26     988

1477

1″ o-ring face seal PTFE 36 VS15L-SS-80-18TP-TE26-48-44 36 26     1477

3290

Custom 2″ flange PTFE 36 FL20-SS-150-24/12-E24/EE16-31- 24 24 12 16 3290

3291

Custom 2″ flange PTFE 33 FL20-SS-150-24/9-E24/EE16-55-7 24 24 9 16 3291
  1⅝” o-ring face seal PTFE 36 VS22GD22-AL-150-32/4-TE18/20-6-26 32 18 4 20 2285
  1⅝” o-ring face seal PTFE 36 VS22GD22-AL-150-32/4-TE18/20-6-26T 32 18 4 20 2286

1612

1-1/16″ SAE PTFE 37 S016-SS-150-37-TE28-10-1Ocm 37 28     1612

1791

1¼” o-ring face seal PTFE 37 VS18-SS-150-37-TEE20-48-48 37 20     1791

2301

1⅝” o-ring face seal PTFE 37 VS22GD22-AL-150-32/3/5-TE18/20/22-6-26T 32 18 5 22 2301

2467

1″ piston o-ring PTFE 38 SP16-E-150-38-TE26-36-36 38 26     2467

3673

1 3/16″ -12 SAE w/o-ring PTFE 40 S019-PS-200-40-TEE22-96-96 40 22     3673

2283

1⅝” o-ring face seal PTFE 40 VS22GD22-AL-150-32/3/5-TE18/20/22-6-26 32 18 8 22 2283

3619

1″ NPT PTFE 41 PT16-B-150-41-TE24-48-48 41 24     3619

2527

2¾” Conflat flange PTFE 42 CF275-SS-150-42-TEE22-36-36 42 22     2527

1776

1⅝” o-ring face seal PTFE 45 VS22-SS-150-45-TEE20-72-72 45 20     1776

2754

1⅝” o-ring face seal ETFE 46 VS22-SS-150-46-TZ24-106/3-36/31 46 24     2754

4577

1⅝” o-ring face seal ETFE 48 VS22-304SS-200-28-TSP22-48-48 shielded pairs48 48 22     4577

4861

2¾” o-ring face seal PVC CAT6a 48 VS44-SS-150-6-CAT6A-240-240 RJ45 ethernet 48 24     4861

4672

1¼” o-ring face seal PTFE 50 VS18-SS-150-50-TE20-4-3m 50 20     4672

2928

1⅞” o-ring face seal PTFE 50 VS26-SS-150-50-TE20-1M-1M 50 20     2928

1711

2¾” Conflat flange PTFE 52 CF275-SS-200-52-TE24-12-12 52 24     1711

914

1⅞” o-ring face seal PTFE 57 VS26-SS-150-57-TE16-48-48 OR -1.2M-1.2M 57 16     914

2427

2¾” Conflat flange PTFE 60 CF275-SS-80-60-TE22-96-96 60 22     2427

3553

2¾” Conflat flange PTFE 60 CF275-SS-150-60-TE26-96-96 60 26     3553

2044

Custom flange PTFE 60 FLFEI-SS/D-80-25P/4TP/1TP-DB25/TE28/TE26-DB25-24 60 28     2044

1415

1⅝” o-ring face seal PTFE 60 VS22-SS-200-60-TE20-72-72 +AMP TERM 60 20     1415

1415

1⅝” o-ring face seal PTFE 60 VS22-SS-150-60-TE20-72-72 60 20     1415

1674

Custom flange PTFE 64 flFEI-SS/D-80-25P/7TP-DB25/E26- 64 26     1674

1510

NW40 flange PTFE 64 nw40KF40-SS-150-32TSP-CWNMUF-96-36 64       1510

1707

1.247″ piston o-rings PTFE 64 SP20-E-200-70-TE26-8-8 64 26     1707
  2¾” conflat flange PTFE 65 CF275-SS-150-65-TEE22-12-12 65 22

681

2½” o-ring seal PTFE 69 VS32L-AL-150-69-TE12-480-480 69 12     681

2502

1.685″ piston o-ring PTFE 71 SP25Y-E-150-65/3P-TEE28/KT30-240-24 65 28 6 30 2502

2130

1⅝” o-ring face seal PTFE 75 VS22-SS-150-25/50-TE20/24-24-24 25 20 50 24 2130

681

2½” o-ring face seal PTFE/shield 76 VS32L-AL-150-38TSP-TE20-480-480 76 20     681

4671

1¼” o-ring face seal PTFE 78 VS18-SS-150-78-TE22-4-3m 78 22     4671

4862

2¾” o-ring face seal PVC 80 VS44-SS-150-20-M4724-240-240 80 16     4862

2722

1.85″ piston o-ring PTFE/shield 84 SP26-E-150-42TSP-TE28-36-36 84 28     2722

1785

1⅞” o-ring face seal PTFE 90 VS26-SS-150-90-TE28-24-24 90 28     1785

3668

2¾” conflat PTFE 90 CF275-SS-150-45TP-E24-18-36 90 24     3668

4858

2¾” o-ring face seal PTV CAT6a 96 VS44-SS-150-12-CAT6A-1800-240 RJ45 ethernet lan 96 24     4858
  1⅞” o-ring face seal PTFE 100 VS26-SS-150-100-TE22-48-20 100 22     1400

1336

2⅜” o-ring face seal PTFE 104 VS31-B-150-104-TE24T 104 24     1336

4573

2½” o-ring face seal ETFE 64 twisted shielded pairs VS32-SS-200-64-TSP22-36-60 128 22     4573

4595

2½” o-ring face seal ETFE 134 VS32-SS-150-48/38-TSP26/TZ26-24-24 96 26     4595

1613

2½” o-ring face seal PTFE/shield 160 VS32-SS-80-80TSP-TE22-48-36 160 22     1613

4595

1½” o-ring face seal ETFE 172 VS32-SS-150-48/38-TSP26/TZ26-24-24 shielded pairs 96 26 76 26 4595

1496

2½” o-ring face seal PTFE tw pairs 190 VS32-SS-150-95TP-TE20 190 20     1496

1497

2½” o-ring face seal PTFE tw pairs 220 VS32-SS-150-110TP-TE24/22/20 220 24     1497

4553

2½” o-ring face seal ETFE 271 VS32-SS-150-36/199-TSP26/TZ26-24-24 shielded 72 26 199 26 4553

4594

2½” o-ring face seal ETFE 281 VS32-SS-150-29/189/3/11-TSP26/TZ26/TSP24/TZ22-24-24   26   24 4594

4593

2½” o-ring face seal ETFE 264 VS32-SS-150-38/205-TSP26/TZ26-24-24 76 26 205 26 4593

4596

2½” o-ring face seal ETFE 244 VS32-SS-150-69/106-TSP26/TZ26-24-24 138 26 106 26 4596

4845

2¾” o-ring face seal PTFE 300 VS44L-SS-150-49/90-TC/SHIELDED CABLES-180-420 200 22 98 24 4845
  2½” o-ring face seal PTFE 300 VS32-SS-200-300-TE22-36-36 300 22     479
  2½” o-ring face seal PTFE 300 VS32-SS-90-300-TE22-60-400CM 300 22

2300

2½” o-ring face seal PTFE 340 VS32-SS-150-340-TE22-600MM-4000mm 340 22     2300

2489

2½” o-ring face seal PTFE 524 VS32-SS-150-524-TE24-36-84 524 24     2489

530

Custom 6½” flange PTFE 540 FL0531-SS-80-266TP-TE24-18T-360T 540 24     530

1681

11″ ASA Flange PTFE 900 ASA11-SS-150-900/1-TE20/T-60-60 900 20     1681

1501

11″ ASA Flange PTFE 900 FLASA11-SS-150-900-TE20-60-60 900 20     1501
