Hermetic D-Sub Connectors

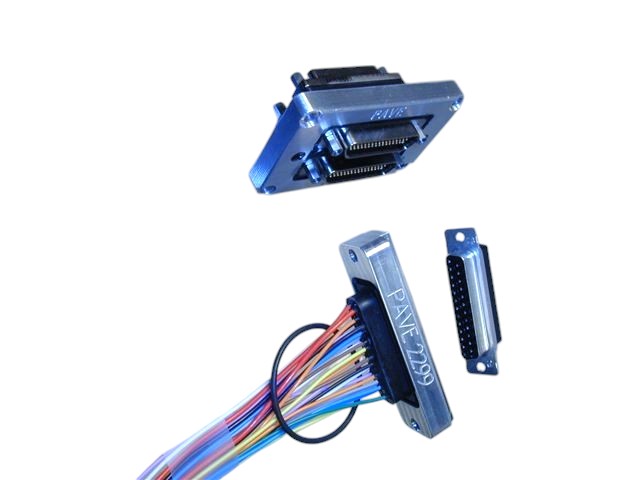

Hermetic Bulkhead Rectangular Connector

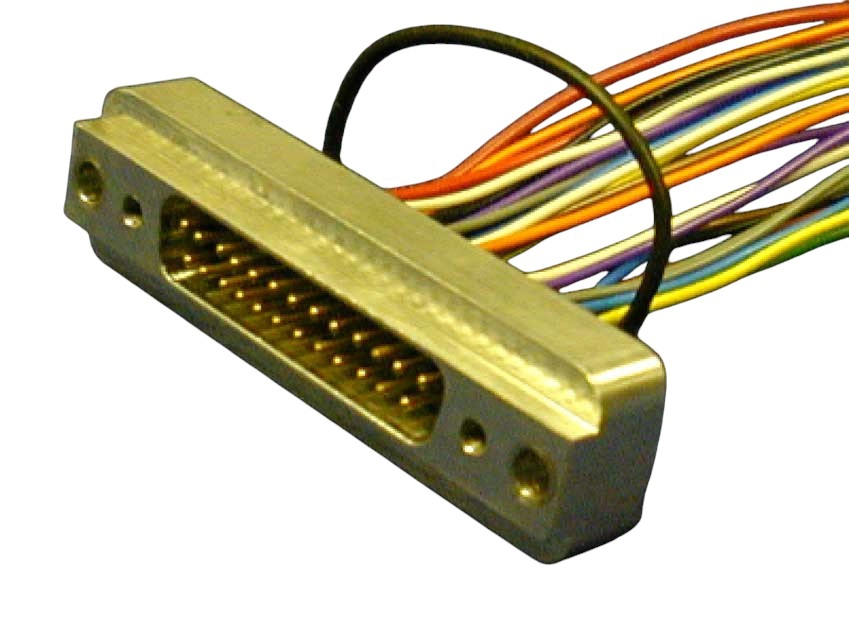

Standard Density D-sub Rectangular Connectors with #20 AWG contacts per MIL-C-24308 — (300V 5A) 9, 15, 25, 29, 37, or 50 contacts — DB9, DB15, DB25, DB37, DB50

High Density D-sub Rectangular connectors with #22 AWG contacts per MIL-C-24308 — (300V 5A) 15, 26, 44, 62, 78 or 104 contacts — DE15, DA26, DB44, DC62, DD78, DB15HD, DB26HD, DB44HD, DC62HD, DD78HD, DE19, DA31, DB52, DC79, DD104

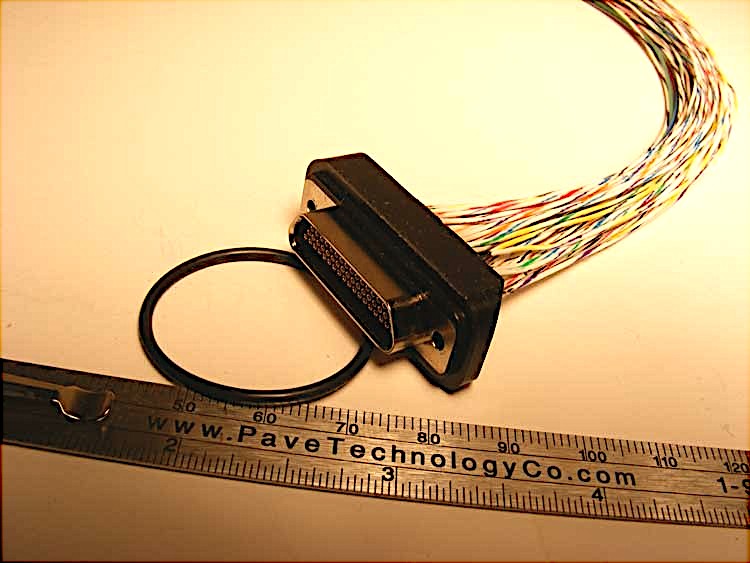

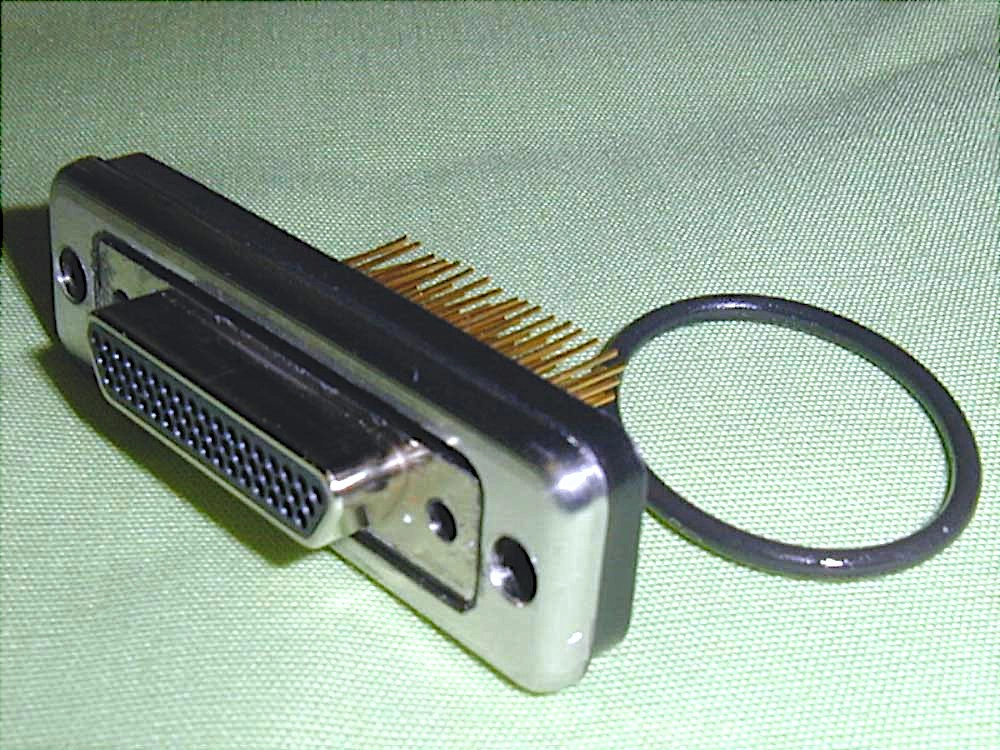

Microminiature D-sub Rectangular connectors with #25 AWG contacts per MIL-C-83513 — (150V 3A) 9, 15, 21,25, 31, 37, 51, 67, 69 or 100 contacts — Micro DB connectors

Hermetic bulkhead rectangular connector versions with thermocouple contacts for Type T, J, K, or E thermocouples are available in standard density d-sub connector versions for 9, 15, 25, 37, and 50 #20 pin arrangements. They are supplied with mating connectors and loose crimp thermocouple-grade contacts. Please contact our sales engineering for quotes and more details for either single—or dual-sided DB connector versions.

Connector shell materials are tin-plated steel for standard and high-density connectors (#20 and #22 AWG contact sizes, respectively) and electroless nickel-plated aluminum or special-order stainless steel for micro d-sub connectors (#25 contact sizes). There is no cadmium or zinc plating.

While all PAVE products will comply with helium leak rating from <10^-6 cc/sec to 10^-9 cc/sec (air equivalent) depending upon design, PAVE also uses more cost effective air bubble in fluid leak testing typically at 80 psi (5 bar). Special high pressure testing up to 10 k psi (600 bar) is also available.

Photos

Hermetic DB Connectors Specifications

Dielectric Strength: >17.4 kV/mm
Dielectric Constant: 5.3@ 1 Mhz
Volume Resistivity: @ 125° C1x1015 Ohm-cm
Dissipation Factor: 0.03 @ 1 Mhz
Hardness, Shore D: 96
Low Vacuum Outgassing: TML: 25% ;CVC<: .01%

High Fungus Resistance: MIL-STD–454J/4
Specific Gravity: @ 25° C 2.3
Compressive Strength: >948 kg/cm²
Compressive Modules: 7.7×104 kg/cm²
Tensile Strength: >470 kg/cm²
Water Absorption (24 hours): 0.03%

HERMETIC EPOXY TEMPERATURE RATING (Epoxy is proprietary and not sold separately)

PAVE Wire Seal® 150	PAVE Wire Seal® 200	PAVE Wire Seal® 200FR
-40° to 150° C	-60° to 200° C	- UL94V-O flame retardant - Toxicity Rating K (NASA MAPTIS) - Odor Rating A - Thermal Vacuum Stability Rating A - Flammability Rating X - FM Class 3600, EExd II 90° C TI

The PAVE-Seal® epoxy is impervious to most oils, solvents, fuels, freons, gases, etc. Epoxy samples are available upon request for customer’s evaluation for any specific chemical compatibility.

DB Contact Density Type	Type	Total Wires - Pins PCB Posts	PAVE Description	Contact or AWG#	Drawing #
combo	dual	2	SP30/13-E-150-2-8-DSUB-DSUB	8	5921
custom	single	2	FL30/10-AL-150-2-TZ16-4PIN-4	16	3824
standard	dual	3	SP37/13-E-150-3-8-DSUB-DSUB combo	8	4869
std	dual	5	SP46/13-E-150-5-8-DSUB-DSUB	8	4526
std dsub	single	RG 178 RG 179	SP47/16-E-150-2/2/1-RG178/RG179/BELDEN8302/39-DSUB	coaxial	4623

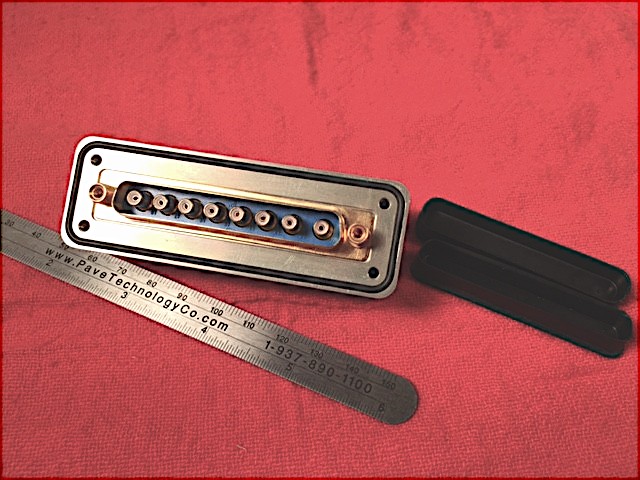

custom coax dsub	dual	8	FL54/18-AL-150-8-RG178 OR 196-DSUB-DSUB combo dsub hermetic	rg178	3205
micro dsub	single	9	FL24/6-SS-150-9-TE26-83513-12	9	4634
micro dsub	dual	9	SP26/11-SS-150-9-26-M83513	26	3501
micro dsub	dual	9	SP26/11-SS-150-9-26-M83513SS sockets both sides	25	5289
std dsub	single	9	SP35/16-E-150-9-BELDEN8305-39-DSUB	22	4624
std dsub	dual	9	CF275-SS-150-9-DSUB-RCPT-PLUG RS232	20	0804
Std. Density dsub	single	9	FL-AL-80-9-TE22-DSUB-12 RS232	22	0960

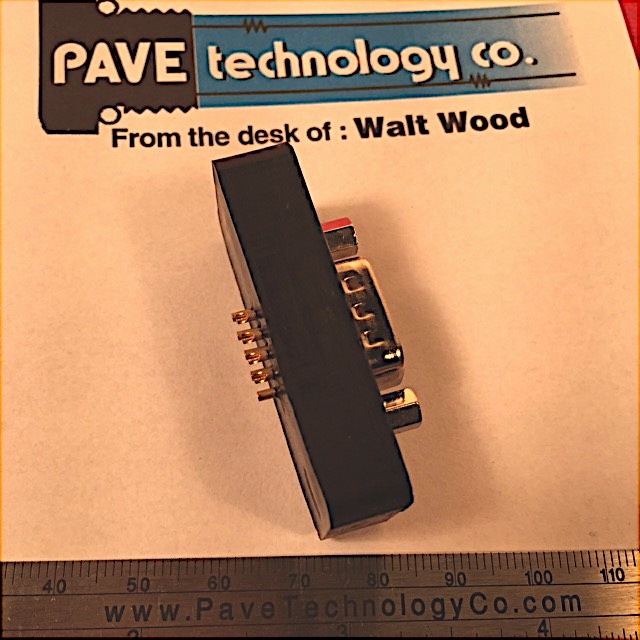

standard	single	9	SP30/13-E-150-9-20-DSUB-SC solder cups one side	20	4696
std dsub	dual	9	SP30/13-E-150-9-20-DSUB-DSUB RS232 See Quick Ship List	20	2748
micro sub	dual	9	SP26/11-E-150-9-26-M83513 sockets both sides	26	5745
micro dsub	dual	9	SP14.1/6.4-E-150-9-26-M83513SS non-hermetic sockets	25	5300
standard	dual	9	SP30/13-E-150-9-20-DSUB-DSUB Male Pin both sides	20	4722
standard combo	dual	9	SP46/13-E-150-4/5-8/20-DSUB-DSUB combo dsub	4 #8 & 5 #20	5169
standard density	single	13	SP47/16-E-150-10/3-BELDEN8305/PC16-39-DSUB	#16 & #22	4625

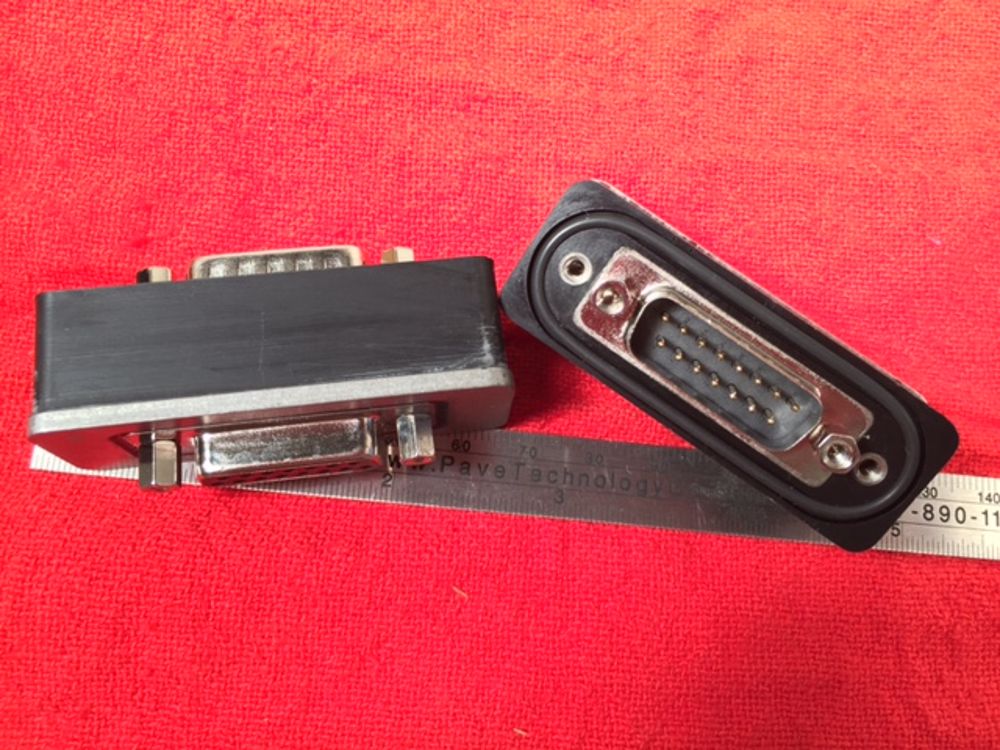

std dsub	dual In Stock	15	SP37/13-E-150-15-20-DSUB-DSUB See Quick Ship List	20	3362
standard density	dual	15	SP37/13-E-150-15-20-DSUB-DSUB pins both sides	15	5365
micro dsub	dual	15	SP30/13-E-150-15-25-M83513	25	3702
micro dsub	single	15	SP16/6-AL-150-15-TE26-30CM-83513	26	3232
hd dsub	dual	15	SP30/13-E-150-15-22-DSUB-DSUB VGA TypeSee Quick Ship List	22	2749
HRS	cable seal	16	VS22-SS-150-16-PC28-20T-95T	26	5115
custom	dual	17	SP46/13-E-150-2/15-8/20-DSUB-DSUB combo	2 #8 15 #20	5479
custom naonnics dualobe	single	18	flFEI1.75-AL-150-18S/1-ET28/COAX-12	28	2280
Mill Max	dual	20	SP29/8-E-150-20-22-PIN-PIN	22	5551
micro dsub	dual	21	SP29/11-SS-150-21-26-M83513SP	26	3500
micro dsub	dual	21	FLMIRCOD-E-150-21-TZ30-7-0 rectangular	30	2191
std dsub STOCK!	single	25	SP44/13-E-150-25-E20-DSUB25-24 RS232 See Quick Ship List	20	3527
standard	single	25	SP44/13-E-150-25-20-DSUB-PCB PINS	20	3941

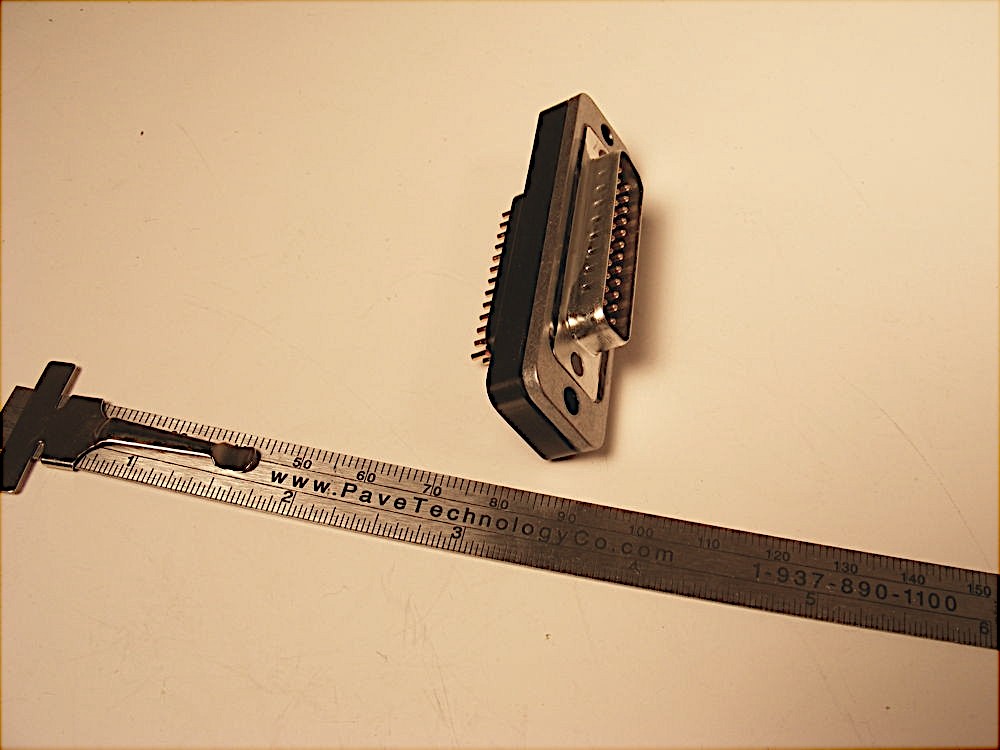

standard	single	25	SP44/13-E-150-25-20- DSUB- SC blind mate	20	3759
standard density	single	25	SP44/13-AL-150-25-TE20-DSUB25-24	20	4357
micro dsub	single	25	SP33/11-E-150-25-ET26-18-M8351302DN	25	5342
std	single	25	SP44/13-E-150-25-TE26-DSUB25-24 RS232	20-26	3871
standard	single	25	SP44/13-E-150-25-20-DSUB-PCB PINS	20	3941
std dsub	dual	25	SP46/13-E-150-25-20-DSUB-DSUB SCSI See Quick Ship List	20	3420
standard	single	25	SP44/13-E-150-25-TE20-DSUB25-24 pin plug	20	5444
standard	dual	25	SP46/13-E-150-25-20-DSUB-DSUB male pins both sides	20	5423
micro dsub	dual	25	SP33/11-SS-150-25-26-M83513SP*	26	3498
standard density	dual sided	25	SP46/13-E-150-25-20-DSUB-DSUB TYPE K CONTACTS	20 Type K	3714

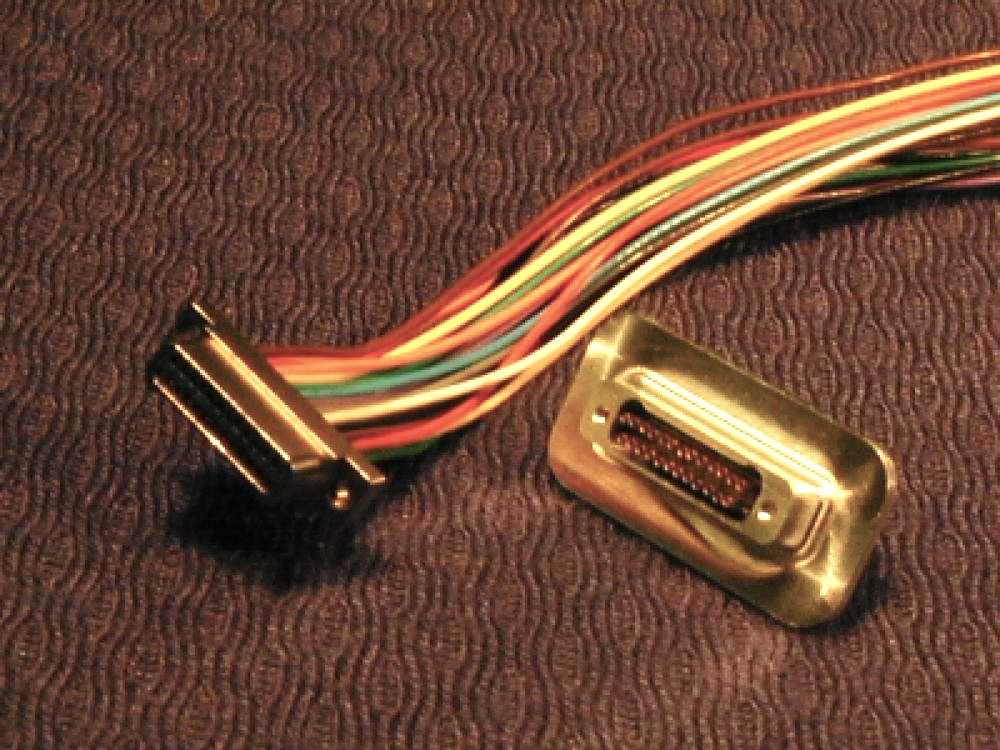

nano dsub laser weld	single	25	LWF-AL-150-25-30-NANOMICS-.5 Nano Bi-Lobe Mil-DTL-32139	30	2224
high density	dual	26	SP37/13-E-150-26-22-DSUB-DSUB	22	5757
HD	cable seal	26	VS32-SS-150-26-XLPE26-20T-97T	26	5103
HDR Honda	cable seal	26	VS22-SS-150-26-PC30-20T-92T	30	5116
micro dsub	single	31	SP33/14-AL-150-31-TZ26-M83513-24	26	5891
micro dsub	dual	31	SP33/14-AL-150-31-25-M83513	25	5274
standard	dual	37	SP58/13-E-150-37-20-DSUB-DSUB	20	4058
standard	single	37 Kapton wire	SP48/15-E-150-37-K22-DSUB-72 Kapton	22	4048
std dsub	dual	37	SP48/15-E-150-1-37RIB-#20 DSUB-48	28	3535
micro dsub	dual	37	SP33/14-AL-150-37-25-M83513	25	3338
custom wire seal	wires both sides	37	SP80/10-AL-200-37-PK26-6-72 custom rectangular	26	4755
standard	single PCB posts	44	SP40/13-E-150-44-20-DSUB-PIN	20	4263
standard	single PCB posts	44	SP40/13-E-150-44-20-DSUB-SOC	20	4287
hd dsub	dual	44	FL-AL-150-44-22-DSUB-DSUB	22	3151
high density	dual	44	SP46/13-E-150-44-22-DSUB-DSUB	22	3761
standard	dual	50	SP58/16-E-150-50-20- DSUB- DSUB	20	4174

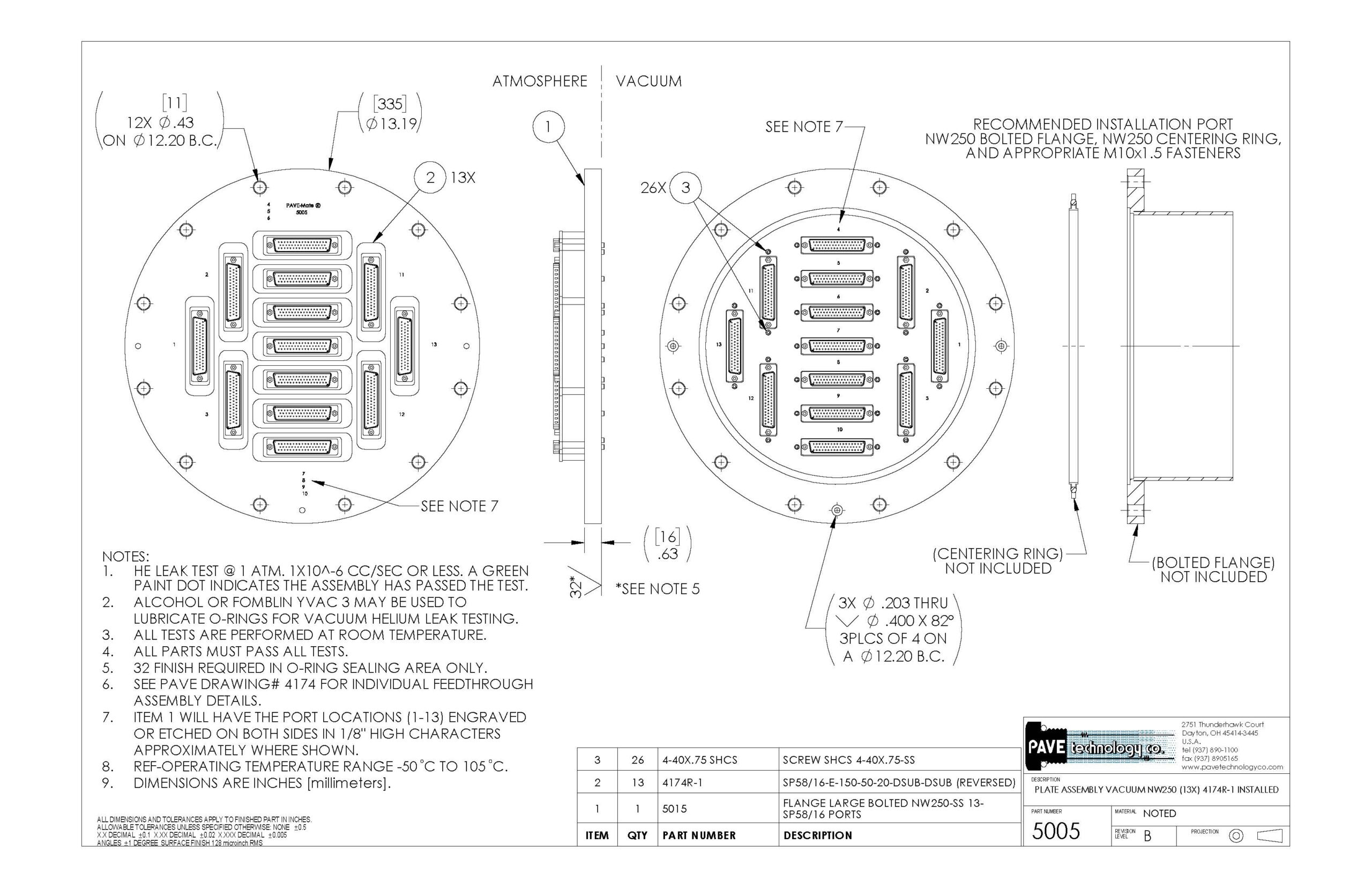

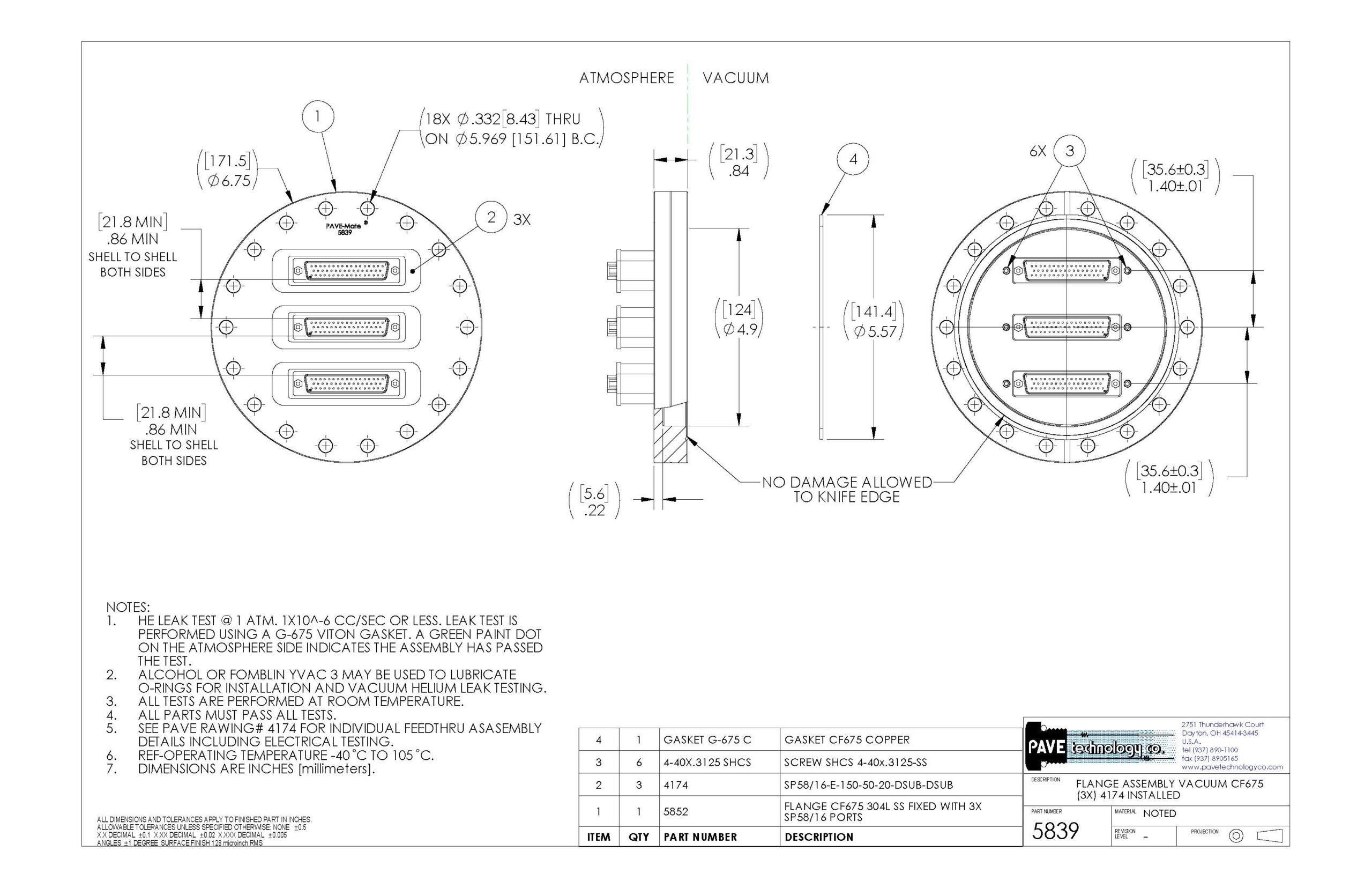

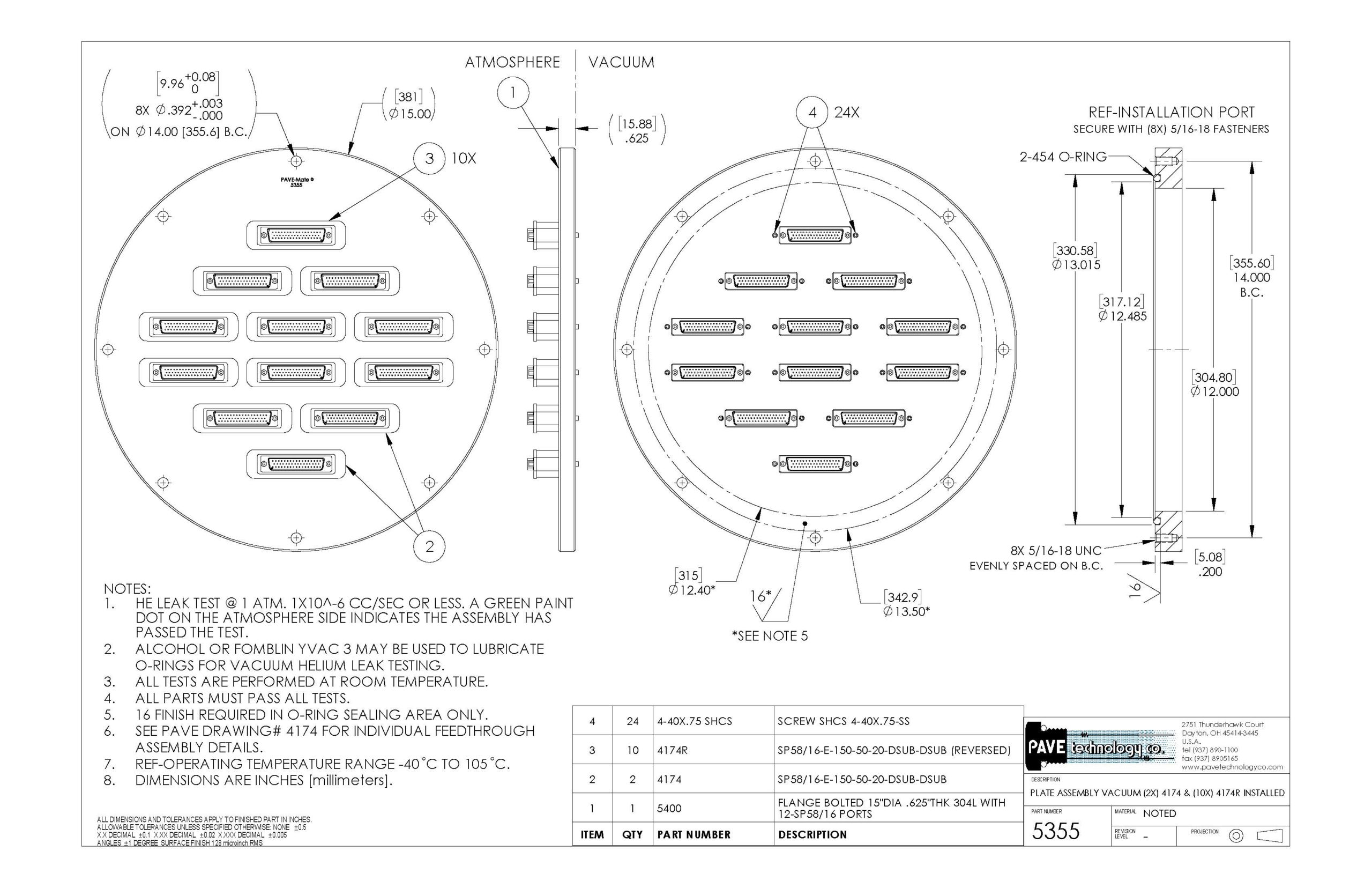

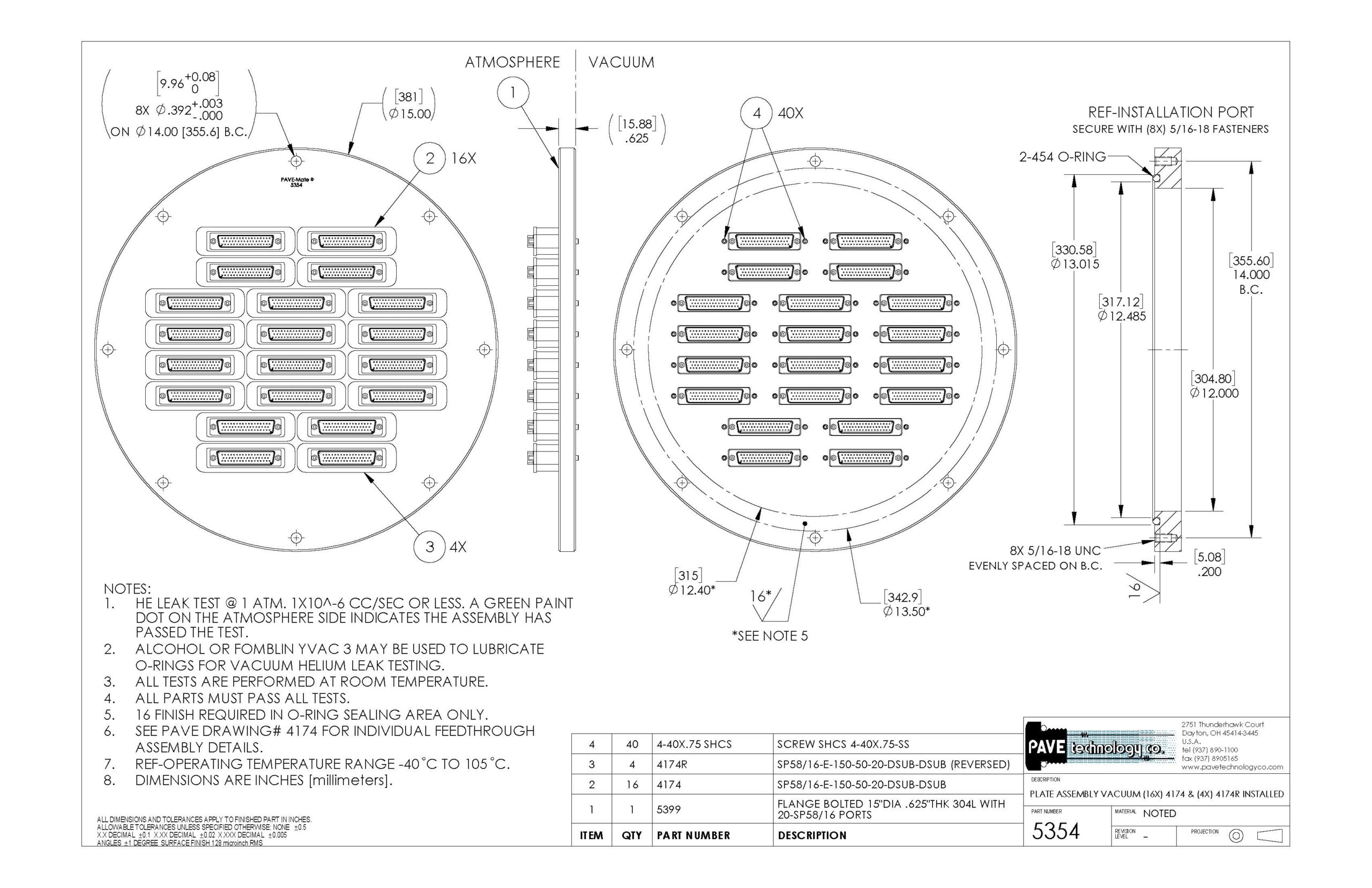

Standard density	dual	13x50	NW250 PLATE WITH 13 INSTALLED PAVE-MATE #4174r CONNECTORS	20	5005
micro dsub	single with pcb posts	51	FLSP31/10-E-80-51-PIN-M8351303/G05N-0.37	26	2522
micro dsub	single	51	SP31/10-E-80-51-E26-24-M8351301/GN	26	2557
micro dsub	dual	51	SP33/14-AL-150-51-25-M83513 keyed 1 right side jack post per drawing	25	4982
micro dsub	dual	51	SP33/14-AL-150-51-25-M83513 keyed 1 right side jack post per drawing	25	4983
micro dsub	dual	51	SP33/14-AL-150-51-25-M83513 both jack posts	25	3142
micro dsub	single	51	SP26/9-E-150-57-E28-16-83513	25	3760
MDR dsub	dual	52	SP36/24-E-150-52-25-DSUB-	25	3220
high density	dual	62	SP58/13-E-150-62-22-DSUB-DSUB	22	5171
hd dsub	single pcb posts	62	SP48/15-E-150-62-BARE24T-DSUB-.05	24	2676
micro	dual	68	SP58/16-E-150-68-26-DSUB-DSUB SCSI hermetic connector	25	4871
micro dsub	dual	69	SP40/14-AL-150-69-25-M83513	25	5296

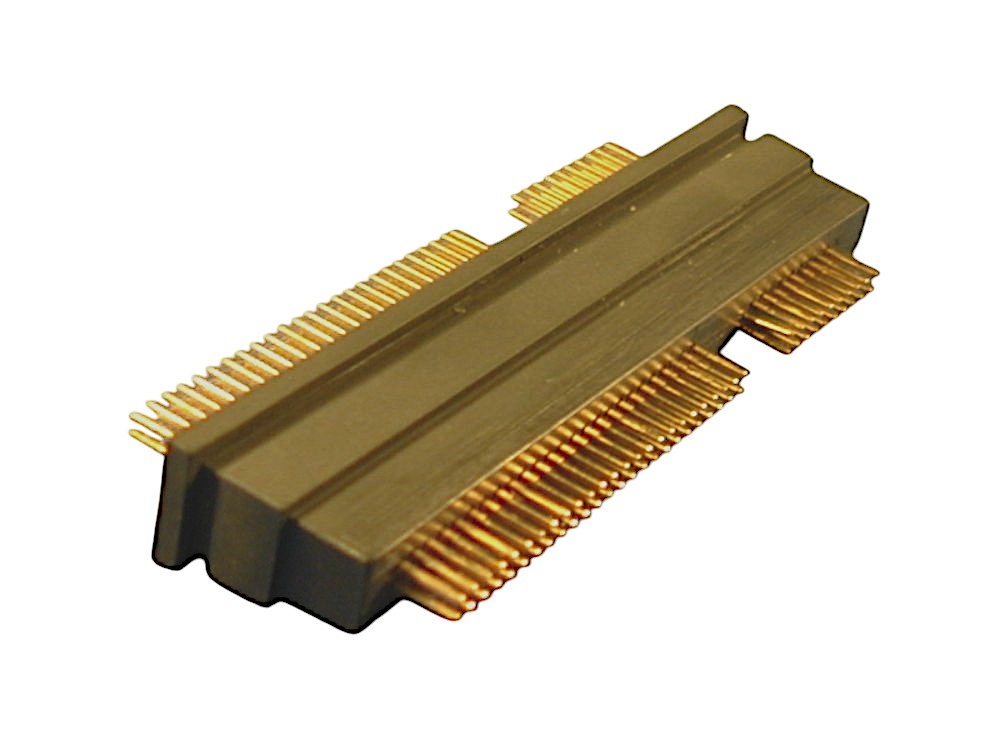

headers	single	70	edgecardTBL-E-150-50/20-SAMTEC rectangular	26	1998
2" wide o-ring face seal	header hermetic	72	SP31/10-E-150-72-26-PIN-PIN hermetic header Samtec	26	3752
micro dsub	dual	74	SP35/19-E-150-74-25-M83513	25	2768
high density	dual	78	SP58/16-E-150-78-22-DSUB-DSUB	22	4802
High density	dual	78	SP58/16-E-150-78-22-DSUB-DSUB IP67	22	5529
micro dsub	single	100	SP43/11-E-80-100-E26-24-M8351301/HN	26	2558
standard density	dual sided	100	SP64/36-E-150-100-20-DSUB-DSUB	20	4663
micro dsub	dual	100	SP52/15-AL-150-100-25-M83513	25	5366

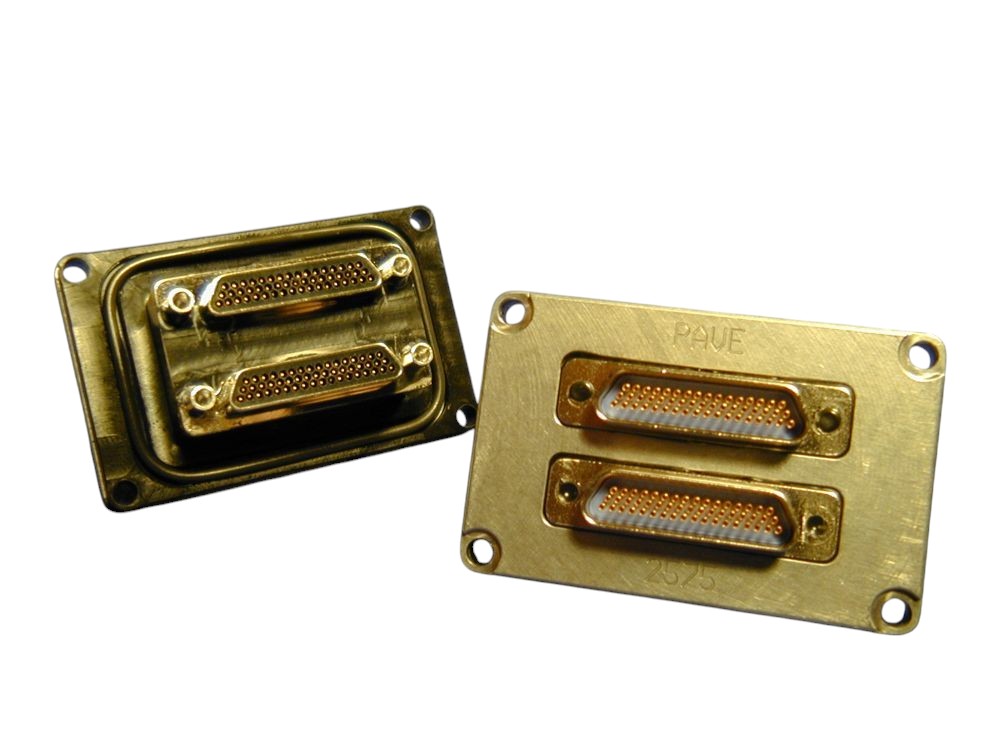

micro dsub	dual	102	SP36/24-E-150-102-25-M83513	25	2575
micro dsub	dual	200 pin& socket contacts	SP52/25-E-150-200-25-M83513	25	4888
micro dsub	dual	200	SP52/25-E-150-200-25-M83513	25	2766
micro dsub	dual	200	SP52/25-E-150-200-25-M83513 reversed	25	2767
