Quick Ship Hermetic Feedthrough Seals
Call +1 937 890 1100 x103 tech sales or x102 for order placement including credit cards.
For Low and High Pressure and Vacuum hermetically sealing fluids or gases
Most of our circular high-pressure hermetic seals can be leak tested and certified upon request for significantly higher pressures than a typical 80 psi (5 bar) air bubble test or vacuum helium leak test shown on drawings.
Lower temperature ranges as low as -200C may also be possible.

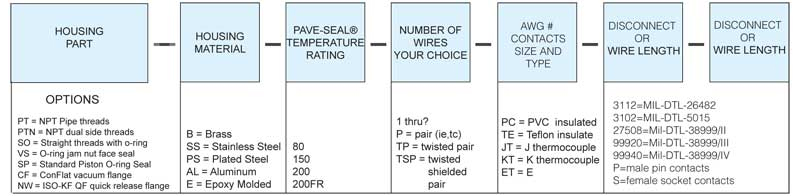

Click on the below-drawing numbers to display the assembly drawing. Please refer to the appropriate online catalog pages for more information or click on the available drawing/part #.
Get Started With PAVE Technology
Whether you’re interested in purchasing hermetic feedthrough seals or low-pressure sealing fluids, the team at PAVE is here to help. Get in touch with our team for technical assistance or a quote request form. If you’d like to purchase one of our exceptional products, then send us an email or give us a call to place your order.
As an industry leader in the manufacturing of standard and custom-designed electrical products, PAVE Technology has a wide range of excellent feedthrough solutions for your business. With our support, you can rest assured that your business needs will be listened to and your standards will be met!
Hermetic Wire Seals Most hermetic seals listed will normally ship within 2-4 weeks (sometimes sooner) from receipt of valid credit approved purchase order, prepaid, or credit card. Ship date will be confirmed during order processing. (VISA/MC/AE) Ascending number of conductors
STOCK # | PAVE Part # & PAVE Description Code | Description. See drawing for details. | Unit Price | |
---|---|---|---|---|
3340 – SP6X-E-200UL94-2-TE26-3-12 | 2 #26 TEFLON WIRES, 3/8” PORT, 3×12” lengths, up to 10k psi | $450.00 | ||
1447 – PT8-SS-150-3-TEE14-18-36 | 3 #14 TEFLON WIRES, ½” NPT, 18×36″ lengths | $150.00 | ||
4661 – SPF8-E-150-4-TEE16-12-12 | 4 #16 PTFE Teflon wires, ½” PORT, 12×12″ wire lengths | $180.00 | ||
1575 – SPF12-E-150-4-TZZ10-24-36 | 4 #10 TEFLON WIRES, ¾” PORT, 24×36″ lengths | $160.00 | ||
5085 – PT12-SS-150-4-TZZ10-22-33 | 4 #10 ETFE wires, ¾” mNPT, 22×33” wire lengths | $240.00 | ||
5084 -VS15L-SS-150-4-TZZ10-22-32 | 4 #10 ETFE wires, 1” o-ring face seal w/nut, 22×32” lengths | $330.00 | ||
2064 – SO8-SS-150-4-TEE24-24-24 | 4 #24 TEFLON WIRES, ½”-20 thread, 24×24″ lengths | $125.00 | ||
4488 – PTN20-PS-150-3/1-PC6/PC8-16-16 submersible pump flat cable | 3 #6 + 1 #8 PVC WIRES, 1 ¼” NPT HEX NIPPLE, 16X16″ wire lengths THW UL 83 flat cable | $280.00 | ||
5203 – PT12-SS-200-4-TZ14-7-6 | 4 #14 ETFE wires, 3/4″mNPT | $230.00 | ||
5202 – VS15L-SS-200-4-TZ14-7-5 | 4 #14 ETFE wires, 1″ o-ring face seal jam nut | $280.00 | ||
3936 – SPF12L-E-200UL94-4-TZ14-7-6 | 4#14 Teflon wires, ¾” PORT, 7×4″ lengths | $65.00 | ||
2411-2 – PT2-SS-150-5-TE24-12-12 | 5 #24 TEFLON WIRES, 1/8″ NPT, 12X12″ lengths | $220.00 | ||
5092SP4X-E-150-6-K34-12-12 Kapton polyimide | 6 #34 Kapton wires, ¼” PORT | $275.00 | ||
4760 – PT4-B-150-6-TE28-18-18 | 6 #28 PTFE WIRES, 1/4″ NPT Port, 18X18″ lengths | $180.00 | ||
1632 – SP6-E-150-6-TZ28-50-50cm | 6 #28 ETFE WIRES, 3/8″ PORT, 50x50cm lengths | $109.00 | ||
5206 – VS8-SS-150-6-TZ28-18-18 | 6 #28 ETFE WIRES, 1/2″ O-RING FACE SEAL JAM NUT | $300.00 | ||
5205 – PT12-SS-150-2/4-TZ16/20-28-2.5 | 2#16 & 4 #20 ETFE wires, 3/4″mNPT | $150.00 | ||
5204 – VS15L-SS-150-2/4-TZ16/20-28-2 | 2 #16 & 4 #20 ETFE wires, 1” o-ring face seal with jam nut Viton o-ring | $180.00 | ||
0597 – SP8L-E-150-9-TZ22-70-70cm | 9 #22 TEFLON WIRES, ½” PORT, 70x70cm lengths | $120.00 | ||
1588 – PT8-SS-200-9-TZ22-24- | “9 #22 Teflon wires, 1/2″” NPT” | $300.00 | ||
2189 – SP16-E-150-12-TEE18-24-24 | 12 #18TEFLON WIRES, 1″ PORT, 24×24″ lengths | $150.00 | ||
4762 – PT16-SS-150-12-TEE18-23-23 | 12 #18 PTFE wires, 1″ NPT Port, 23×23″ lengths | $250.00 | ||
1649 – VS15L-SS-150-12-TEE20-48-48 | 12 #20 TEFLON WIRES 1″ PORT, 48×48″ lengths | $350.00 | ||
1872 – VS15-AL-150-20-TE22-48-48 | 20 #22 TEFLON WIRES, 1″ PORT, 48×48″ lengths | $500.00 | ||
Thermocouple Hermetic Wire Seals |
||||
STOCK # | PAVE Part # & PAVE Description Code | Description. See drawing for details. | Unit Price | |
3285 – PT8-SS-150-8P-TT24-120-40 | 8 PAIRS #24 TYPE T TEFLON THERMOCOUPLE, ½” NPT, 120X40″ lengths | $530.00 | ||
1664 – VS15L-SS-150-9P-JT20-48-48 | 9 PAIRS #20 TYPE J TEFLON THERMOCOUPLE,1″ PORT, 48×48″ lengths | $540.00 | ||
1601 – VS15L-SS-150-9P-KT20-48-48 | 9 PAIRS #20 TYPE K TEFLON THERMOCOUPLE, 1″ PORT, 48×48″ lengths | $540.00 | ||
1650 – VS15L-SS-150-9P-TT20-48-48 | 9 PAIRS #20 TYPE T TEFLON THERMOCOUPLE, 1″ PORT, 48×48″ lengths | $540.00 | ||
Hermetically Sealed Pin Connectors, Single and Dual Double Ended |
||||
STOCK # | PAVE Part # & PAVE Description Code | Description. See drawing for details. | Unit Price | |
0261 – VS15L-SS-150-1-BNC-BNC isolated shield | BNC, 1″ PORT, Floating Isolated shield Dual Sided connector | $330.00 | ||
1162 – VS8-SS-150-SMA-SMA COAXIAL | SMA, ½” PORT, Floating Isolated Shield Dual Sided connector | $430.00 | ||
1518-1– VS15L-SS-150HV-1-SHV-SH 7kVdc | “SHV dual sided connector 1″” o-ring face seal” | $320.00 | ||
3273 – VS18-SS-150-8-24-RJ45-RJ45 CAT5 CAT6 ethernet LAN | CAT5 CAT 6 RJ45, 1 ¼” PORT, ethernet dual sided connector | $440.00 | ||
4884 – VS15L-SS-150-1-USB-A female-USB-A female USB | USB 2.0, 1″ PORT, USB dual sided connector | $550.00 | ||
5114 – VS15L-SS-150-1-USB-A female-USB- A female USB 3.0 | USB 3.0, 1”PORT, USB dual sided connector | $600.00 | ||
5607 – VS15-SS150-1-USB female-USB female USB 3.0 | USB 3.0. 1” PORT, SHORT THREADS DUAL SIDED | $550.00 | ||
5612 – VS12-SS-150-1- USB-C female | USB C, ¾” PORT, DUAL SIDED | $450.00 | ||
1964 – VS26-SS-150-7-8-3102PS | 7 #8 + 2 PLUGS, 1 ⅞” PORT, dual sided threaded coupling connector | $1,450.00 | ||
1837 – VS18-E-150-8-16-3112PS | 8 #16 + 2 PLUGS, 1 ¼” PORT, dual sided bayonet connector | $960.00 | ||
2748 – SP30/13-E-150-9-20-DSUB | 9 #20 dsub Standard density dual sided | $350.00 | ||
1656 – VS15L-SS-150-10-20-3112PS | 10 #20 + 2 PLUGS, 1″ PORT, dual sided connector | $775.00 | ||
1666 – VS12L-AL-150-13-TE22-27508P-48 | 13 #22 TEFLON WIRES, ¾” PORT, single side connector | $385.00 | ||
3362 – SP37/13-E-150-15-20-DSUB-DSUB | 15 #20 STANDARD DENSITY, dual sided DB connector | $380.00 | ||
2749 – SP30/13-E-150-15-22-DSUB-DSUB | 15 #22 HIGH DENSITY, VGA RGB dual sided DB connector | $380.00 | ||
3938 – VS26-SS-150-19-12-99920PS | 19 #12 + 2 Crimp Plugs, 1 ⅞” PORT, dual sided connector | $1,400.00 | ||
1667 – VS22-E-150-21-16-3112PS | 21 #16 + 2 PLUGS, 1 ⅝” PORT, dual sided connector | $1,400.00 | ||
3527 – SP44/13-E-150-25-TE20-DSUB25-2 | 25 #20 STANDARD DENSITY DSUB, single sided connector | $450.00 | ||
3420 – SP46/13-E-150-25-20-DSUB-DSUB | 25#20 STANDARD DENSITY DSUB, dual sided connector | $550.00 | ||
1637-1 – VS18-SS-150-26-20-3112PS (CRIMP) | 26 #20 CONTACTS + 2 PLUGS, 1¼” PORT, dual sided connector | $970.00 | ||
1525 VS18-SS-150-37-22-99920PS | 37 #22 + 2 PLUGS, 1 ¼” PORT, dual sided connector | $1,400.00 | ||
1669 – VS32-E-150-48-16-3102 | 48 #16 + 2 plugs, 2 ½” PORT, dual sided connector | $2,530.00 | ||
1670 – VS22-SS-150-55-20-3112PS | 55 #20 + 2 PLUGS, 1 ⅝” PORT, dual sided connector | $1,515.00 | ||
1671 – VS26-E-150-61-20-3112PS | 61 #20 + 2 PLUGS, 1 ⅞” PORT, dual sided connector | $1,600.00 | ||
1491 – VS22-304SS-150-79-22-999/20PS | 79 #22 + 2 PLUGS, 1 ⅝” PORT, dual sided connector | $2,400.00 | ||
3567 – VS26-SS-150-128-22-99920PS | 128 #22 + PLUGS, 1 7/8″ PORT, dual sided connector | $3,700.00 | ||
Hermetic Threaded Copper Terminal Rod Seals, low & high currents amperage |
||||
STOCK # | PAVE Part # & PAVE Description Code | Description. See drawing for details. | Unit Price | |
1573-1 – PT8-SS-200-.25CU-3-3 | 75 AMP PAVE-SEAL, ½” NPT, ¼ copper threaded rod | $250.00 | ||
1236 – PT12-SS-200HV-.38-1.6-1.6 | 150 AMP PAVE-SEAL, ¾” NPT | $250.00 | ||
1587 – PT16-SS-200HV-.5CU-2.4-3.0 | 200 AMP PAVE-SEAL, 1″ NPT | $345.00 | ||
1565 – VS26-SS-200-1-.75CU-3.7-3.7 | 400 AMP PAVE-SEAL 1-⅞” PORT, JAM NUT & O-RING | $800.00 | ||
Hermetic Fiber Optic Seals |
||||
STOCK # | PAVE Part # & PAVE Description Code | Description. See drawing for details. | Unit Price | |
1271 – VS8-SS-150-1-62/125u-ST-ST | 1 FIBER MULTIMODE FIBER OPTIC ST DUAL SIDE CONNECTORS, ½” PORT | $750.00 | ||
4547 – SP6L-E-150-12-SMFO-18-18 | 12 FIBERS SINGLE MODE SMF28e RIBBON OPTIC SEAL, 9,37mm PORT, 7k psi to vacuum | $800.00 | ||
STK#76 | 2567-1 – VS8N-SS-150-1-MMFO-SNA | 1 multi-mode fiber optic dual sided Delphi connectors, vac to 10k psi | $590.00 | |
STK#76B | 2843-1-1 – SNAP-LOCK FO PLUG PATC | Multi-mode fiber optic patch cord cable 1 meter with Delphi connectors each end | $295.00 | |
Additional In-Stock Hermetic Wire and Pin Connector Seals. Call for status |
||||
Item Code | Item Code Description. See drawing | Product Line | Qty Avail | Unit Price US$ |
1188 | FL2.5-E-150-10-20-1.5-2, VENT | PFX | 1 | $100 |
1491NP | VS22-304SS-150-79-22-999/20PS( | PM1 | 1 | |
1532 | PT8-SS-150-1-BNC-BNC | PM1 | 1 | $300 |
1637 | VS18-SS-150-26-20-3112PS (NP) | PM1 | 6 | |
1667NP | VS22-SS-150-21-16-3112PS(NP) | PM1 | 2 | |
3501R | SP26/11-SS-150-9-26-M83513PS | PM1 | 2 | $350 |
3575 | VS12XL-AL-150-3/6-PC18/26-RCPT | PM2 | 1 | $300 |
3762-1 | FL20/8-AL-150-2-TE24-PIN-2T | PM2 | 5 | $200 |
4094 | VS7-ZA-80-2-TZ26-BUTTON-13.8 | PM2 | 3 | $150 |
0597-7 | SP8L-E-150-9-TZ22-5-16 | PSH | 14 | $200 |
0597-8 | SP8L-E-150-9-TZ22-70-70cm | PSH | 2 | $200 |
1830 | SPF12-E-150-2/4-TEE10/16-24-36 | PSH | 1 | $60 |
2131 | SP8M-E-150-1TSJP-PE22-297-20 | PSH | 1 | $60 |
2390 | SP8L-E-200UL94-2-TEE18-12-6 | PSH | 203 | $50 |
2390-3 | SP8L-E-200UL94-2-TEE18-3.4-6 | PSH | 12 | $50 |
3656 | 3656 – SP9-E-150-2-TZ16-8-6 | 2 #16 Teflon wires, 9/16” PORT | $50 | |
2476 | SP11M-E-200UL94-2/2-TZ14/22-13 | PSH | 41 | $60 |
2501-1 | SP6-E-150-4-TZ22-5-26 | PSH | 1 | $100 |
2624 | SP8L-E-200UL94-2-TZ16-290-150m | PSH | 55 | $50 |
2690-1 | PT6-B-150-2/1SP-TE18/TE26-30-4 | PSH | 4 | $70 |
2859 | SP11M-E-200-18-TE24-6-24 | PSH | 1 | $200 |
2903 | SPF12-E-150-1/4/12-RG188AU/TE2 | PSH | 1 | $300 |
2918-1 | SP8L-E-200UL94-2-TZ16-200mm-20 | PSH | 3 | $50 |
2918-2 | SP8L-E-200UL94-2-TZ16-500mm-50 | PSH | 14 | $50 |
3133 | SO8-SS-150-2-TE20-10-SC | PSH | 1 | $140 |
3187 | SP24-E-150-2/1/1-PC10/20RIB/16 | PSH | 100 | $150 |
3340-1 | SP6X-E-200UL94-2-TE26-3-12 | PSH | 1 | $100 |
3589 | SP8L-E-150-10-TK24-25-50CM | PSH | 15 | $100 |
3635 | SP8C-E-200UL94-2-TE18-2-21 | PSH | 6 | $50 |
3451 | 3451 – SP8C-E-200-2-TEE18-1-4 | 2#18 TEFLON wires, ½” PORT | $50 | |
3764 | SP6L-E-200UL94-2-ETFE24-20-8, | PSH | 71 | $100 |
4042 | SP16-E-150-12-PC18-10-37 | PSH | 2 | $100 |
4087-1 | SPF14-E-150-4-GXL12-32.9-14.2 | PSH | 5 | $60 |
4151 | SP8M-E-150-2-IPC14-7-7 | PSH | 4 | $50 |
4195 | SP8C-E-200UL94-2-TEE18-2-21 | PSH | 4 | $50 |
4216 | SP16-E-200-12-TEE18-24-24, REV | PSH | 1 | $150 |
4218 | SP11/10-E-200UL94-2-TEE18-1-4 | PSH | 50 | $100 |
4492 | SP11M-E-150-4-TZ14-24-24 | PSH | 3 | $100 |
4664 | SP8C-E-200UL94-2-TZ14-4-10 | PSH | 9 | $50 |
4673 | SPF14-E-150-4-GXL12-32.9T-14.2 | PSH | 9 | $100 |
4713 | SP8M-E-200-12-TE28-200mm-200mm | PSH | 6 | $120 |
4714 | SPF12-E-150-21/3-PC26/TFCP015- | PSH | 1 | $150 |
4773 | SP6X-E-200UL94-2-TZ22-10-10 | PSH | 6 | $100 |
4872 | SPF12W-E-150-16-TE28-18-18 | PSH | 2 | $150 |
4882 | SP8L-E-150-7-E24-10-10 | PSH | 2 | $100 |
4887 | SPF12-E-150-2/13/1-PC20/PC28/C | PSH | 2 | $150 |
4966 | SP9.3/4.6-E-150-2-TE14-2-38 | PSH | 2 | $100 |
4967 | SPF12L-E-200UL94-3-TZ18-100-94 | PSH | 13 | $100 |
5045 | SPF12-E-150-6-TZ18-21-8 | PSH | 10 | $150 |
5202-1 | VS15L-SS-200-4-TZ14-7-5 | PSH | 1 | $160 |
5464 | SP11H-E-150-10-TZ22-50-50CM | PSH | 3 | $350 |
5542 | SP8L-E-150-7-TZ22-70-70cm | PSH | 4 | $100 |
5552 | VS15L-AL-150-16P/8-KT28/TE26-1 | PSH | 1 | $500 |
5786 | VS22-SS-150HV-1-HVPC20-15-13 | PSH | 1 | $300 |
STK #24 | 2030, VS22-E-150-PLUG Solid pl | STK | 1 | $100 |
STK #24A | 2189-11 wire, SP16-E-150-11-TE | STK | 1 | $100 |
STK #25 | 4664R. SP8C-E-200UL94-2-TZ14-1 | STK | 178 | $50 |
STK #25A | #3205-7, FL54/18-AL-150-7-RG17 | STK | 1 | $600 |
STK #26 | 5138X, SPF12LTC-E-150-2/4-TZ16 | STK | 131 | $50 |
STK #26A | 2411-X, PT2-SS-150-4-TE24-12-1 | STK | 2 | $100 |
STK #26B | 2633, SP6-E-150-2-TE22-12-12 | STK | 10 | $100 |
STK #27 | #4839-7X, PT12-SS-150-7P-TT20- | STK | 1 | $400 |
STK #27A | 4583-1R, CF275-SS-150-10-RG188 | STK | 1 | $1,600 |
STK #28 | 2316-9X, SP11L-E-150-9-TE24-60 | STK | 1 | $100 |
STK #30A | #1518-1-BLK | STK | 5 | $300 |
STK #30B | 4982-X, 51 pin @ 94.3 angle | STK | 1 | $500 |
STK #31 | 2035-1R, VS8-SS-150-1P-SX20TWS | STK | 1 | $200 |
STK #32A | 1701,VS15L-SS-150-29-TE30-600m | STK | 1 | $400 |
STK #33A | 1667X-20–Pin X has no continuity | STK | 1 | $900 |
STK #34 | 5090X, Wire color loc. wrong | STK | 1 | $200 |
STK #35 | 3536R, CONXALL-150-2/2/11/1-PC | STK | 4 | $250 |
STK #35A | 1588-8X-PT8-SS-150-8-TZ22 | STK | 1 | $200 |
STK #36A | 3187, SP24-E-150-2/1/1-PC10/20 | STK | 30 | $50 |
STK #37A | 4490—43 fibers | STK | 2 | $300 |
STK #37B | 4983-X- Pin Conn.@ 93.5 angle | STK | 1 | $900 |
STK #38A | 3830X, SPF18-E-200-1-TST22-100 | STK | 6 | $100 |
STK #39 | 1733, SPF18-E-150-30-TZ22-15-1 | STK | 18 | $200 |
STK #40 | 2390- short wires 11-5.5″ | STK | 6 | $50 |
STK #46A | 4709X, SP16-E-150-3/4-TZ14/20- | STK | 2 | $100 |
STK #50 | 4714X, 1 missing PC26 wire | STK | 1 | $150 |
STK #65 | 5142X,-thermal cyc- new temp r | STK | 1 | $200 |
STK #65A | 5140X Old desgin w/o butt spli | STK | 2 | $250 |
STK #66 | 1667X, VS22-SS-150-20-3112PS: | STK | 1 | $900 |
STK #67 | 4464X, VS26-SS-150-36-22-27472 | STK | 1 | $1,100 |
STK #67A | 1491X, VS22-304-SS-150-78-22-9 | STK | 1 | $1,900 |
STK #69 | 1398, SP5-P-150-2-TEE26-2-15– | STK | 7 | $100 |
STK #76 | 2567-1, VS8N-SS-150-1-MMFO-SNA | STK | 33 | $400 |
STK #76B | 2843-1, SNAP-LOCK FO PLUG PATCH | STK | 33 | $300 |
STK #77A | 2064-X, S08-SS-150-3-TEE24-24- | STK | 1 | $100 |
STK #78 | 4618X, SP9-E-200UL94-2-PTFE16- | STK | 7 | $50 |
STK #79A | #3232-X, SP16/6-AL-150-14-26-1 | STK | 1 | $500 |
STK #80 | 3935X, SPF12XL-E-200-4-TEE12-1 | STK | 15 | $300 |
STK #81 | 4006X, SPF12XL-E-200-1-2TSP24- | STK | 3 | $200 |
STK #84 | 3527-X, He leak=1 X10^-6 Per N | STK | 1 | $300 |
STK #85 | 5656 13 pairs type T #26 wires | STK | 1 | $800 |
STK #85A | 5587-X-PT12-SS-200HV-.5CU-2-1. | STK | 3 | $500 |
STK #85B | 3567NP-X, VS26-SS-150-127-22-9 | STK | 2 | $2,000 |
STK #86 | 4740X, SP8S-E-200-6-TZ22-10-6 | STK | 6 | $200 |
STK #87 | 5464-X-10K psi no twist or sal | STK | 10 | $700 |
STK #89 | 2316X, SP11L-E-150-10-TE24-60- | STK | 9 | $90 |
Crimp tools for pin connectorsSee instructions at FAQ question 4 |
||||
Part # | PAVE Description Code | Description. See drawing for details. | Unit Price | |
615708-615709 | CRIMP TOOL FOR #20 AND #16 CON | MIL-DTL-26482 #16 & #20 CONTACTS CRIMP TOOL | $820.00 | |
ATML08205B | TOOL INSERTION #20 | MIL-DTL-26482, SERIES II INSERTION TOOL #20 AWG | $160.00 | |
ATML08206B | TOOL REMOVAL #20 | MIL-DTL-26482, SERIES II REMOVAL TOOL #20 AWG | $160.00 | |
ATML08207B | TOOL INSERTION #16 | MIL-DTL-26482, SERIES II #16 INSERTION TOOL | $160.00 | |
ATML08208B | TOOL REMOVAL #16 | MIL-DTL-26482, SERIES II #16 REMOVAL TOOL | $160.00 | |
615717 | TOOL CRIMP M22520/2-01 | MIL-DTL-38999 CRIMP TOOL | $600.00 | |
615723 | POSITIONER FOR #22D SOC | MIL-DTL-38999 POSITIONER FOR CRIMP TOOL | $90.00 | |
M22520/2-09 | POSITIONER FOR #22D PIN | MIL-DTL-38999 POSITIONER FOR CRIMP TOOL | $90.00 | |
ATML0801B | TOOL INSERTION, 38999 | MIL-DTL-38999, INSERTION TOOL | $160.00 | |
ATML0802B | TOOL REMOVAL, 38999 | MIL-DTL-38999, REMOVAL TOOL | $160.00 |
Most products listed above will normally ship within 2-4 weeks (sometimes sooner) from receipt of valid credit approved purchase order, prepaid, or credit card (VISA/MC/AE) Domestic Terms: Open credit once approved is net 30 subject to credit approval or pre-pay. F.O.B. Dayton, Ohio USA via UPS or customer’s account # carrier.
ALL PAVE PRODUCTS ARE NORMALLY BI-DIRECTIONAL SEALS IN USE FOR VACUUMS OR PRESSURES UP TO 20 BAR (300 PSI). FOR HIGHER PRESSURES, PLEASE CONSULT WITH OUR SALES ENGINEERS.
Quotes are valid for 90 days. NRE is Non-Recurring Engineering charge for new or modified designs.
If RoHS/REACH certified materials are required, that must be stated in the customer’s RFQ to be included in any PAVE quotes.
All customer orders are confirmed back in writing to the customer with a PAVE order # when received and accepted. If a new design is quoted, a new PAVE part/drawing 4 digit # will be issued upon request with this new drawing sent a few weeks after order receipt for the customer’s approval.
Send purchase orders to Customer Service for processing or call x100 or x102 or fax for MC/VISA/AE credit card orders (no card data via unsecure email!). A 4% service charge applies to all credit card orders. Credit charge orders must be charged no later than time of shipment. Please also supply your shipper’s account # All shipments F.O.B. Origin Freight Collect or EXW Ex Works.
3D CAD STP files available upon request.
TEL +1 937 890 1100 x103 Eastern Zone
FAX +1 937 890 5165
PAVE-Seal® & PAVE-Mate® connectors
ISO 9001:2015 Certified
PAVE Technology Co.®
2751 Thunderhawk Court Dayton OH 45414-3445 USA
TERMS AND CONDITIONS OF SALE: All tooling is proprietary and the property of PAVE. Cancellation or restocking charges of a minimum of ~30% will normally apply on any customer’s cancellation after the purchase order has been accepted by PAVE Technology Co subject to PAVE agreeing to any order cancellation. Any blanket orders or large quantities quoted must be shipped complete within 12 months of the first shipment release date to avoid price adjustments. Material supplied to PAVE by a customer is supplied at the customer’s own risk with 10% spares required to cover prototype development. Any below listed one-time non-recurring engineering changes (NRE) are invoiced at 50% upon receipt of the purchase order with the balance due upon the acceptance of the first article. 4-8 weeks minimum notice is normally required on existing PO shipment changes. New orders typically have 8-12 weeks ARO minimum lead time to begin shipments, check with the factory if rush service is needed to see if available. PAVE warrants its products free from defects for one year from the ship date and no warranty, whether merchantability, fitness for purpose,or otherwise is made beyond the repair or replacement of PAVE’s products or refund of purchase price at the sole discretion of PAVE Technology Co. Terms and conditions of sale shall be interpreted according to the laws of the State of Ohio USA. In the event of a dispute regarding the terms of this purchase or in the event of PAVE Technology collects the unpaid balance, exclusive jurisdiction thereof shall be the State of Ohio with the venue in Montgomery County.
CREDIT TERMS: net 30 days on credit-approved accounts. Otherwise, terms are VISA/MC/AE credit cards, prepaid bank wire or Fed x COD. New accounts to supply 3 references including bank references or D&B rating. All prices are in US dollars.
SHIPPING: F.O.B. Origin Freight Collect or EXW Ex Works Dayton, Ohio USA via UPS, FedX, DHL, or the customer’s designated freight forwarder. The customer’s shipper account # may be required for shipments and are required for international shipments unless prepaid.
For Contact insert pin out lettering or number identifications, please click on the appropriate link below:
For PAVE-Mate Type 3112 bayonet disconnects based on MIL-C-26482 pin arrangements
For PAVE-MATE Type 3102 threaded coupling disconnects based on MIL-C5015 pin arrangements
For PAVE-MATE Type 27466, 27508, 99920, 99940 bayonet, threaded or push-pull disconnects based on MIL-C-38999 Series 1, 2, 3, or 4
