Coaxial RF Seals – Hermetic Coaxial Connectors

Request a Quote

All electrical shields are isolated or floating with electrical continuity end to end unless otherwise indicated on the drawings.

PAVE’s hermetic coaxial connector RF seals are bi-directional and will seal pressure or vacuum in both directions. For pressures above 300 psi (20 bar), please check with the sales engineer if changing the pressure direction shown on the drawing.

An almost unlimited selection of either hermetic coaxial electrical pin connector types or shielded RF coaxial cables seals are available for either low or high pressures from 1 bar to 1000 bar and low vacuum seals to high vacuums of 10^-8Torr with temperature ranges from cryogenic -200C to 200C, depending upon the design and customer’s actual operating and test requirements.  PAVE hermetic epoxy seals replace the hermetic glass to metal connector seals with many more electrical connector design options. In most cases, higher pressures, lower leak rates, and wider temperatures can be accommodated on existing design drawings as well if so needed.

Hermetic coaxial connectors include BNC 50 ohm and 75 ohms, SMA both low and high frequency (+2-100 GHz use requires special designs), SHV, SMB, SMC, N, twin axial, and more, either dual-sided connectors or single-sided styles.  Most hermetic coaxial connector shields are isolated or floating from the housing or can be ordered grounded. Also, hermetic multi-pin circular connectors and hermetically sealed rectangular combo D-Sub connector designs are also available.

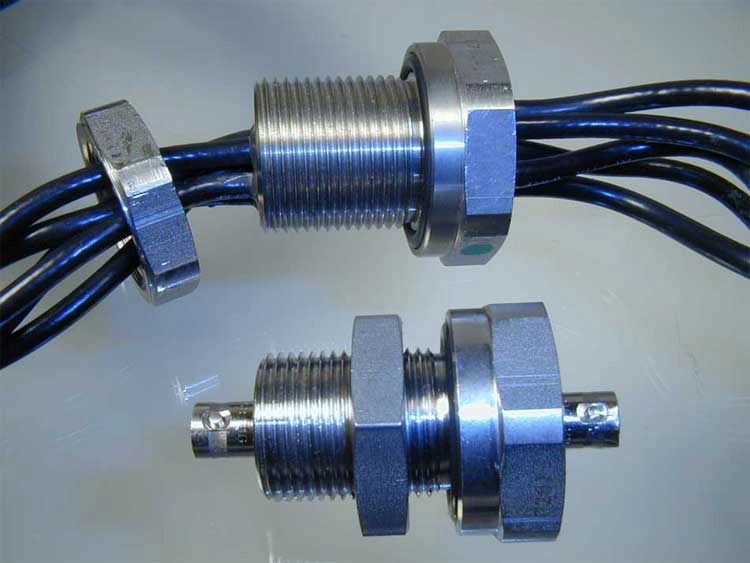

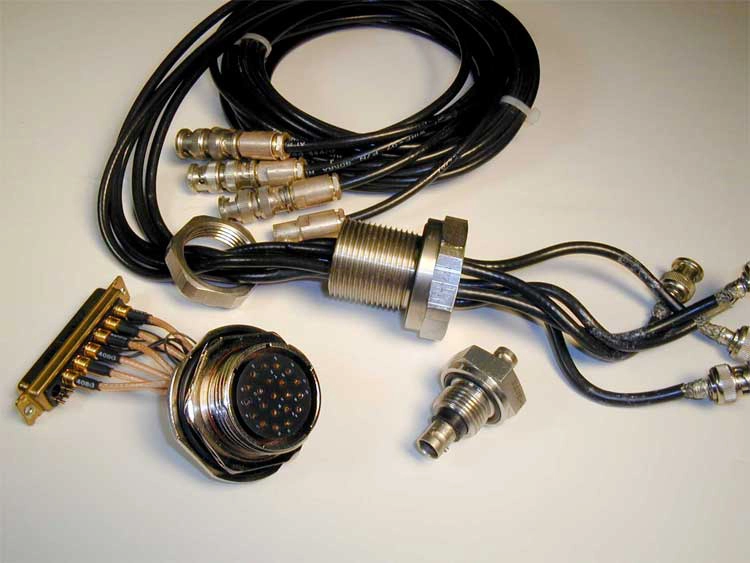

 Virtually any type of hermetic coaxial connectors or shielded cable can also be hermetically sealed in almost any combination and wire lengths. A wide variety of hermetic feedthrough mounting styles to the bulkhead are available from jam nut o-ring, NPT, piston o-ring, Conflat® flange, and more including custom engineered.  There is no detectable leakage of gas or fluids through or around the cables.  We are available to assist with selecting the proper cost-effective hermetic seal design.

In a hurry, see our quick ship hermetic seals listing.

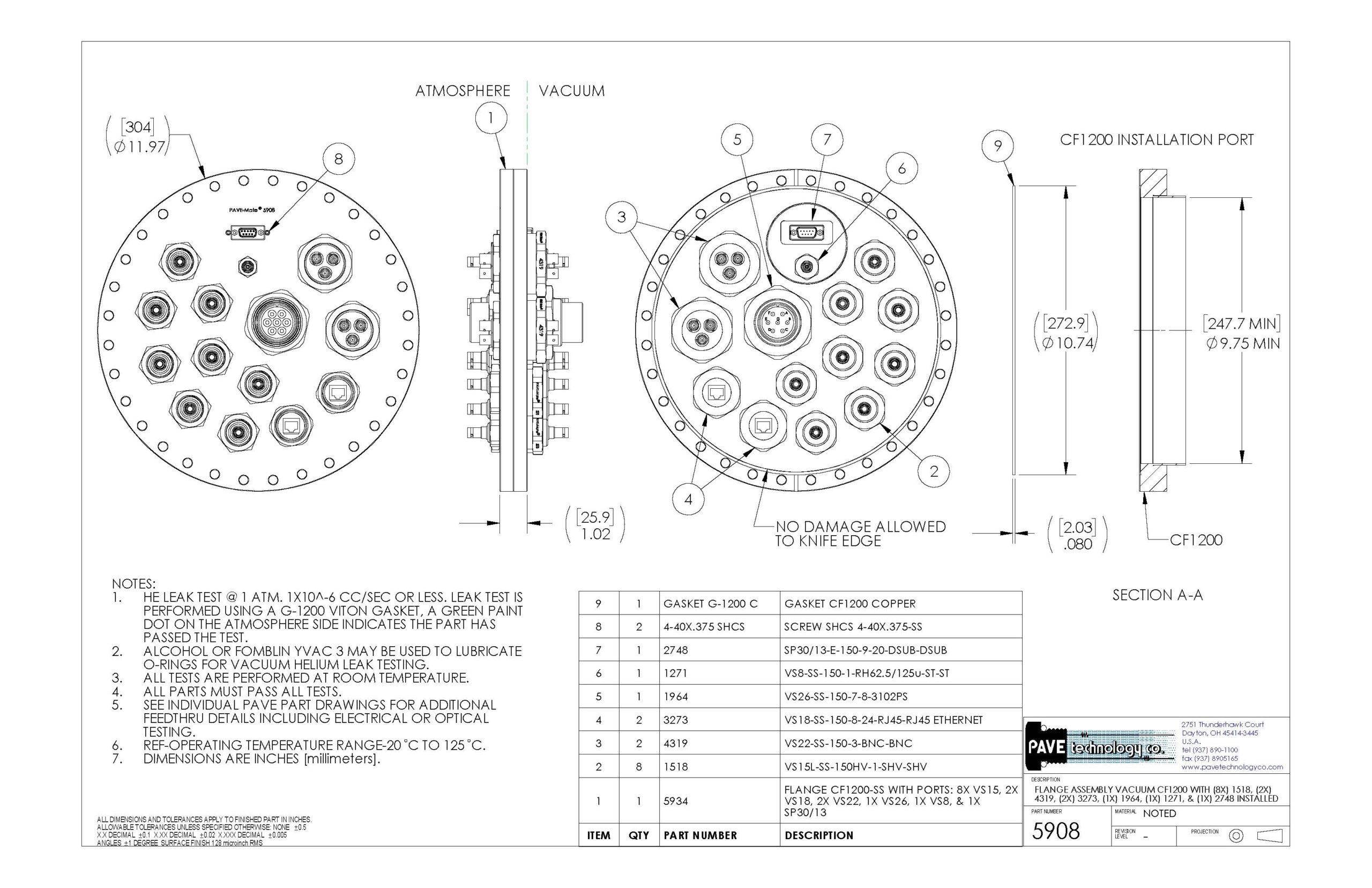

Coaxial, EMI Shielded Description Codes

Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.

Installation Port and Size Dual or Single sided hermetic connector or hermetic cable seal or pins Total Wires PAVE Description Codes, Housing & Wires Wires 1 AWG # Wires 2 AWG # DRAWING #
¾” o-ring piston seal cable seal RG 178 SP6H-E-150-1-RG178-18-18 25k psi 1 RG 178     4792
3/8″ piston o-ring hermetic cable seal 1 SP6H-E-150-1-RG316-18-18 1 RG 316     5752

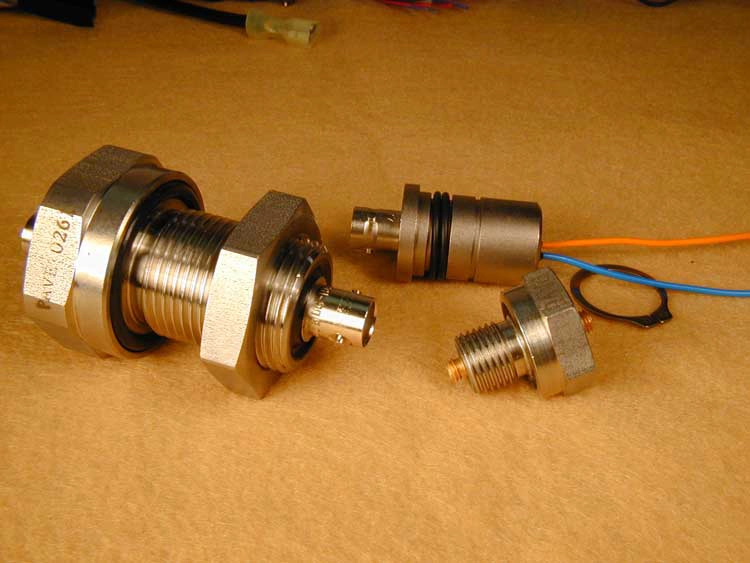

1″ o-ring face seal Dual In-Stock 1 VS15L-SS-150-1-BNC-BNC isolated shield         0261
½” NPT dual 1 PT8-SS-150-1-BNC-BNC 1       1532
½” NPT dual 1 PT8-SS-150-BNC-BNC (XL) 1       2095
½” NPT threads dual or single 1 PT8-BNP-150-1-BNC-BNC 75 OHM 1 75 ohm 18   4424

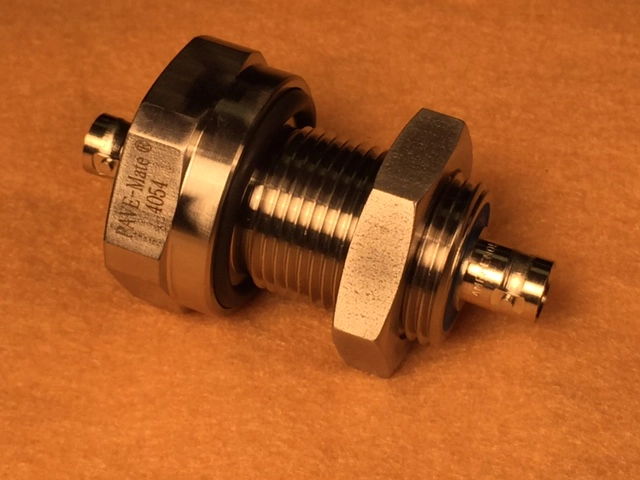

1” o-ring face seal dual side connect 1 VS15L-SS-150-BNC-BNC 1       4054
1″ o-ring face seal dual 1 VS15L-SS-150HV-1-BNC-BNC GROUNDED SHIELD 1 BNC     5302
½” o-ring face seal connector 1 VS8-SS-150-1-BNC-PIN 1 probe     4523

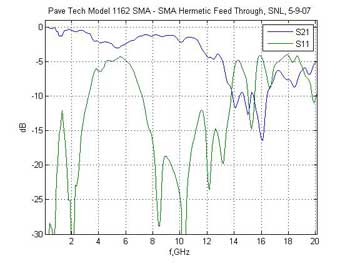

½” o-ring face seal dual in-stock 1 VS8-SS-150-SMA-SMA isolated shield See Quick Ship List 1       1162
½” 2x o-ring face seal dual connect 1 VS8x2OR-SS-150-1- SMA- SMA 1       3817
½ o-ring face seal dual capacitance seal 1 VS8-SS-150-1-SMA-SMA 26 GHz 100% shielding isolated 1 20     4708
1″ o-ring face seal PAVE-Mate® II 2 VS15L-SS-150-2-2.92-2.92 40GHz SMK 2.92mm 2 coaxial     5240
3/4″ o-ring face seal PAVE-Mate® II 1 VS12L-SS-150-1-65GHZCOAX-F-30F SMK 1.85mm 12 coaxial     5251
¾ o-ring face seal cable 1 VS12L-SS-150-1-100GHZCOAX-2.5F-20F SMK 1.0mm 1 100 GHz     4765
¾ o-ring face seal cable 1 VS12L-SS-150-1-100 GHZ COAX-2.5-20 1mm SMK SMA 1 100 GHz     4567
3/4″ o-ring face seal single 2 VS12L-SS-150-2-100GHZCOAX-F-24F 1.0mm 2 1.0mm     5230

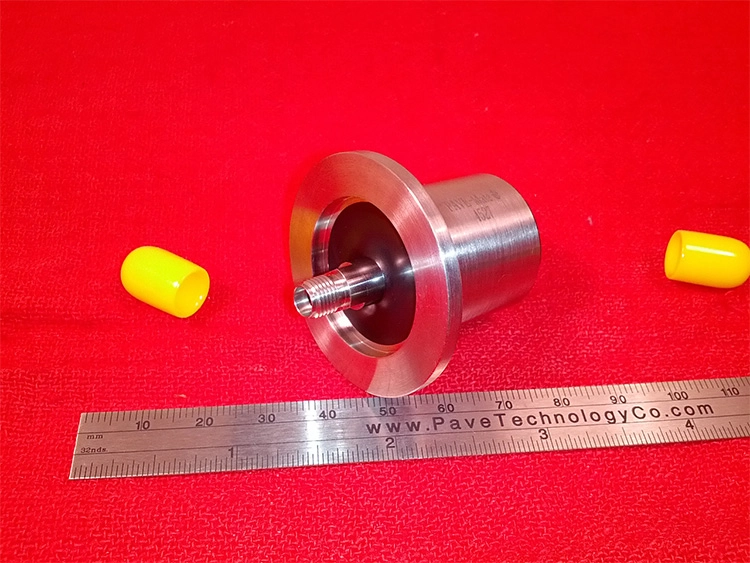

KF25 NW25 QF25 DN25 flange dual 1 NW25-SS-150-1-2.92mm-2.92mm Ka-Band SMA 2.9mm SMK 40 GHz 1 22     4527
1/16″ NPT Cable Seal 600 bar 2 PT1-SS-2-RG178-1-1M 2 rg178     3473
1″ NPT dual UHF coax 1 PT16-SS-150-1-UHF-UHF 1       1768
¼” NPT single side disconnect 1 PT4-SS-150-SMA-RG196-60mm LOW TEMP 1 rg196     4023
¼” NPT single side connect 1 PT4-SS-150-SMA-RG196-50mm 1       2410
1″ NPT dual side connect 1 PT8-SS-150-TNC-TNC 1       2172
½” SAE thread single 1 SO8S-SS-200-1-TE26-SMB-6 1 PTFE 26   4830
½” SAE dual side connect 1 SO8-SS-150-SMA-SMA (grounded) 1       1646
1/2″ o-ring straight thread cable seal 2 shielded SO8-SS-150-1-TPS28100RF-3T-7T twinax Samtec 2 twinaxial 28   5730
½” SAE dual side connect 1 SO8S-SS-150-1-TWINAXE20-60-6         1330
½” o-ring piston seal cable 9 SP8/100-E-150-8/1-PC24/RG178-16-16 8 24 1 RG 175 4582
½” piston o-ring attenna seal 1 SP8A-E-150-1-STORM421710-POST-35 SMA 1 sma cable     3748
1/2″ o-ring piston seal RG178 cable 1 SP8L-E-150-1-RG178-45-30 1 RG178     5126
¾” piston o-ring hermetic cable seal 1 SPF12-E-150-1-RG142/RG316-6-18 1 rg142/316     2808
¾” o-ring face seal dual side connect 2 VS12-SS-150-1-TWINAX/Triax 2 20     1155
1;” p-ring face seal dual 2 VS15L-SS-150-1-TWINAX-TWINAX twinax       4948
1 ¼” o-ring face seal jam nut dual side connect 2 VS18-SS-150-2-TWINAX-TWINAX   20     5335
¾” piston o-ring single side connect 2 SPF12L-B-80-2-TE20-TWINAX/Triax-2 2 20     2220
1″ o-ring face seal cable seal 2 VS15L-SS-150-1-TWINAX24-264-72 100 ohm twinax 2 26     4894
7/16″-28 o-ring seal single side connect 2 SP5.5-E-150-2-TE20-TWINAX-12 2 20     2664
17.37mm piston o-ring cable seal 3 SP11L-E-150-2/1-PC24/RG405/U-12-38 2 PVC 24 RG 405 4330
¾” o-ring face seal cable seal 7 VS12-SS-150-1/6-RG316/TE26-24-24 1 RG 316  6 26 5661
¾” o-ring face seal dual side connect 1 VS12-AL-150-F-F 1       2577
¾” o-ring face seal single side connect 1 VS12L-SS-150-1-BNC-SC 1       1861
1″ o-ring face seal dual side connect 1 VS15L-SS-150-BNC, 75 OHMs 1 75 ohms     2800
1″ o-ring face seal dual side connect 1 VS15L-SS-150-MHV-MHV 1       2954
1″ o-ring face seal dual side connect 1 VS15L-SS-150-1-MHV-MHV GROUNDED SHIELD 1 MHV     5303
1″ o-ring face seal dual side connect 1 VS15L-SS-200-TNC 1       1527
1″ o-ring face seal dual 1 VS15L-SS-150HV-1-BNC-BNC 1   18   2964
1¼” o-ring face seal dual side connect 1 VS18-SS-150-BNC-BNC 1       1750

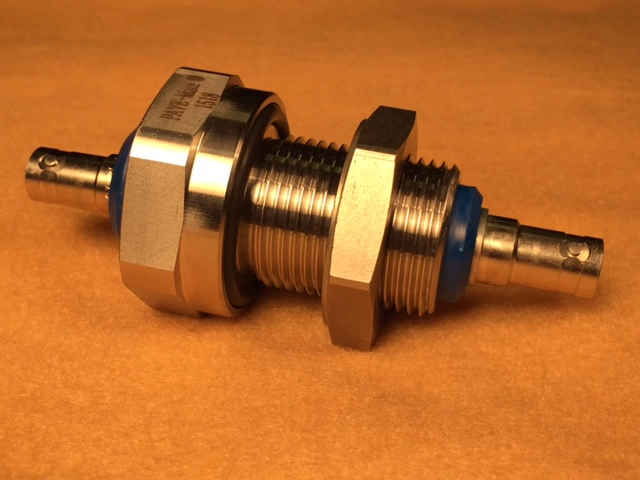

1″ o-ring face seal dual sided 1 VS18-SS-150-SHV-SHV isolated shield See Quick Ship List 1       1518
1¼” o-ring face seal dual side connect 1 VS18-SS-200-N-N 1       1526

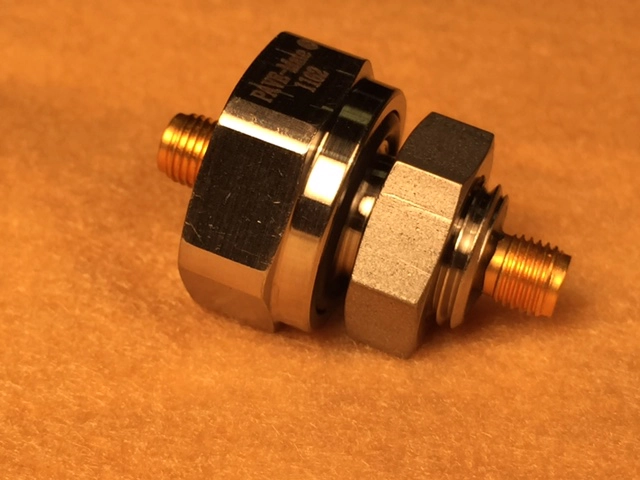

½” o-ring face seal dual side connect 1 VS8-SS-150-SMA-SMA 1       1162-1
NW40 KF40 dual 8 NW40-SS-150-4-BNC-BNC 8 single SMA   5149
¼” o-ring face seal single 1 VS4N-SS-150-1-22-RPSMA-2 reverse polarity SMA 1 single SMA   4546
½” o-ring face seal hermetic cable seal 1 VS8-SS-80-1-RG179-96-48 75 ohm 1       1557
½” o-ring face seal dual side connect 1 VS8-SS-150-1-SMC MICRODOT 1       3349
½” o-ring face seal dual side connect 1 VS8-SS-150-1-SMB 1       2144
13mm o-ring face seal single side connect 1 VSBNC-SS-200-1-CRTFE18-BNC-13 1 18     2628
custom flange seal single side connect 2 CONNECTOR FUEL GAGE NSN 5935-00-673-8388 57F908572-3 Blackhawkcopter 2       0075
½” NPT hermetic cable seal 1 PTN8-SS-150-1-RG62U-48-6 93 ohm 1 rg62     3271
¾” SAE hermetic cable seal 2 SO12L-SS-80-2-RG316-10-30 2       1504
1.25″ o-ring face seal connector 4 VS18-SS-150-2-TWINAX-TWINAX dual twinax       5490
1″ NPT cable seals   PT16-SS-200-3-RG59-18T-18T RG59       5476
1⅝” o-ring face seal dual side connect 3 VS22-SS-150-3-BNC-BNC 3 BNC     4319
1⅜” o-ring face seal dual side connect 3 VS22-SS-150-2/1-BNC/MHV-BNC/MHV 3       1699
½” piston o-ring cable seal 3 SPF8-E-150-3-MICROCOAX-11-14 3 micro coax     3722
1″ o-ring face cable seal 3 VS15-SS-150-3-RG178-24-24 3 RG 178      5736
1″ o-ring face cable seal 3 VS15-AL-150-1/2/1-RG174/RG58-72-18 RG174       5483
1″ o-ring face cable seal 3 VS15L-SS-150-3-USB-96 USB A-48 USB B   3 USB A to B   3819
 l single 3 VS22-SS-150-3-J3 COAX-BNC-425 BNC J3 coax Wilcoxon     4377
M24 o-ring face seal low noise cables 3 VSM24XL-SS-150-3-AC0005-433-39         5100
NW40 flange dual 4 NW40-SS-150-4-TWINAX-TWINAX 4 twinax     4803
1″ o-ring seal cable seal 4 VS15L-SS-150-1- ESATA-16M-18M Esata E-SATA       4018
1″ piston o-rings cable seal 7 SP16-E-200-5/2-RG316/PVF20-1-2m         4088
1″ piston o-ring seal coax cables 4 SP16-E-150-4-0024A0311-7-78 coax       3650
1″ o-ring face seal dual 2 VS15L-SS-150-1-RCA-RCA 2 RCA     5158
1″ o-ring face seal cable 5 VS15-AL-150-1/2/2-RG174/RG58/KE30-72-29 1 RG174 2 RG58 2 Type E TC pairs       5482
3/4″ mNPT cable 4 PT12-SS-150-4-RG316-144-144 4 RG 316     5267
17,37mm piston o-ring cable 5 SP11L-E-150-5-RG316-60-24 5 RG 316     5211
1-1/16″ SAE single side connect 5 SO16L-SS-80-3/2-RG316/18HV 5       1306
1″ o-ring face seal hermetic cable seal 5 VS15L-SS-150-3-RG58-6T-6T 5       2435
1¼” o-ring face seal hermetic cable seal 5 VS18-SS-150-5-RG58-6T-6T 5       1774
M24 metric thread cable seal 6 VSM24XL-SS-150-6-AC0005-433-39 low noise 6 Low Noise     5127
1¼” o-ring face seal hermetic cable seal 5 VS18-SS-150-5-RG59-6T-72T 75 ohm 5       2505
1″ piston o-ring cable seal 6 + 2 gas lines SP16-E-150-6/2-RG174/.125SS-18 6 rg174     3860
1¼” o-ring face seal hermetic cable seal 6 VS18-SS-150-5/1-RG316/REYNOLDS HV-36-36 rg316   18kv 26 3509
1¼” o-ring face seal hermetic cable seal 6 VS18-SS-150-5/1-RG174/1788022- 5 rg174 1 hv 2963
1¼” o-ring face seal hermetic cable seal 6 VS18-SS-150-6-RG178-48-48 6       2393
1¼” o-ring face seal hermetic cable seal 6 VS18-SS-150-6-RG316-180-40FE6PA 6       1540
1¼” o-ring face seal hermetic cable seal 7 VS18-SS-150-7-RG174+C-12-120 7       1461
1/2″ piston -ring seal cable seal 1 SP8A-E-150-1-STORM421710-POST-12 SMA 1 COAX     5386
Flange o-ring face seal PCB antenna 12 SPF14X-T-150-3/9-RG178/24 printed circuit board antenna 3 RG178 9 26 5277
NW40 KF40 dual side connector 7 NW40-SS-150-7-SMA-SMA         5686
custom flange seal dual side connect 8 FL54/18-AL-150-8-RG178 or 196-DSUB-DSUB combo dsub hermetic 8 coax     3205
½” piston o-ring PVC/PTFE 9 SP8/100-E-150-8/1-PC24/RG178-16-16 8 24 1 rg 178 4582
1-1/16″ SAE hp 8 SP16-E-200-8-RG178-1-2M 8 rg178     3530
    8 coax+2 #26 SP16S-E-150-8/2-RG178/E26-39-3 8 RG175 26 2 4942
25.3mm piston o-ring seal hermetic cable seal 8 SP16-E-80-2/1/5-RG178/RG179/TE28 50 ohm 75 ohm 8       1574
1-¼” o-ring face seal cable seal 8 VS18-SS-150-7/1-RG174/REYNOLDS2896-85FT-10FT 7 RG174 1 HV 4333
2¾” conflat flange Servo stepper cables 9 plus shields CF275-SS-150-1/1-CBLPW/CBLFB-125T-229T 4 14 5 20 4756
M24 metric thread cable seal 9 VSM24XL-SS-150-9-AC0005-433-39 low noise 9 Low Noise     5128
1⅝” conflat flange cable seal 9 VS22-SS-150-3/6- TWINAX /COAX-60-60 3 twinax 6 rg178 4172
2¾” conflat flange hermetic cable seal 10 CF275-SS-150-10-HVC-36-36 10       1470
2¾” conflat flange cable 10 CF275-SS-150-10-RG188DS-48-48 10 rg 188 RG 188DS   4583
2¾” conflat flange hermetic cable seal 10 CF275-SS-150-10-RG178-36-36 10       1471
NW40 flange cable 10 NW40/VS18-SS-150-10-RG174-84BNC-12SMB 10 rg 174     5281
1¼” o-ring face seal hermetic cable seal 10 VS18-SS-150-10-RG178-36-36 10 rg178     2915
1¼” o-ring face seal hermetic cable seal 10 VS18-SS-150-10-RG58/U-8-12 10       2537
1¼” o-ring face seal cable 10 VS18-SS-150-10-RG174-72-72 10 RG174     4520
1 1/2″ o-ring face seal single 11 D38999/24-AL-150-11-5024A1311-30 8 Cheminax      5224
1⅝” o-ring face seal hermetic cable seal 11 VS22-SS-150-11-RG178-60-60 11       1389
2¾” piston o-ring hermetic cable seal 11 SPF12-E-150-4/5/1/1-TEE24/26/RG179/ USB-120-30cm 75 ohm 9 24-26 USB rg179 3833
1.25″ o-ring face seal cable 16 VS18-SS-150-11/5-CCSC/K34-20-91cm 11 ultra coax FEP cables #32 5 #34 Kapton 5543
1⅝” o-ring face-seal cable 12 VS22-304SS-150-12-J3-4T-300 12 J3 coax     4517
1-1/5″ o-ring face-seal cable seal 14 VS22-304SS-150-12-RG316-4T-165T 12 RG316     4358
1⅞” o-ring face seal cable seal splice 12 VS26-SS-150-12-RG316/RG58-4T-115T 12   12 RG58 4684
M24 o-ring face seal low noise cables 12 VSM24XL-SS-150-12-AC0005-433-39         5099
2¾” conflat flange hermetic cable seal 13 CF275-SS-150-13-R24A0024-30-30 13       1416
2½” o-ring face seal hermetic cable seal 13 VS32L-AL-150-13-RG59U-480-480 13       0681
1-⅝” o-ring face seal cable seal 16 VS22-SS-150-15/1-RG178/REYNOLD 15 RG174 1 HV 4334
1¼” piston o-ring custom hermetic connector 17 SP20-E-150-16/1-COAX/TE24-#22P-18 16   1 coax 2948
⅝” o-ring face seal submersible + hermetic cable seal 16 VS10-ss-150- 15 24 1 coax 1456
D38999/23Y single side connect 16 D38999/23Y*-E-150-6/10-RG179/TZ24-P247PS1 75 ohm 16 20     2635
2.75″ o-ring face seal hermetic connector 16 VS44-SS-150-4-RCN900724-76T-66T twinax quadrax Twinax cables Quadrax connector quadrax twinax twinax 5582
1⅝” o-ring face seal dual sided 16 VS22-SS-150-4-9- QUADRAX PS quadrax twinax 100 ohm 4 quadrax #9   4874
1⅝” o-ring face seal dual sided 16 VS22-SS-150-4-QUADRAX-PIN-PIN quadrax twinax 100 ohmethernet 4 rugged d-sub 100 ohms   4886
1⅝” o-ring face seal single side connect 16 VS22-SS-150-16-RG316-240-40FG1 16 rg316     3199
1⅝” o-ring face seal single side connect 16 VS26-SS-150-16C-RG179-240-40FG 75 ohm   rg179     2887
1″ NPT with DSUB PTFE 17 PT16-B-150-1-AXO PATCH200B-70-48 17 24     3618
1⅞” o-ring face seal coaxial cable seal 18 VS26-SS-150-18-RG316/RG58-4T-115T   18 RG316 RG 58   4703
1 1/4″ mNPT nipple cable seal 19 PTN20-SS-150-19-RG174-35T-35T MICRODOT 19 RG 174     5755
1⅝” o-ring face seal cable twinax 100 ohm 20 shielded VS22-304SS-150-10-SP28-96-96 100 ohm twinax 20 twinax 28   4725
1⅝” o-ring face seal cable twinax 100 ohm 20 shielded VS22-SS-150-10-TWINAX30-96-96 20   twinax 100 ohm   4776
1⅝” o-ring face seal single side connect 20 VS22-SS-150-20-RG178-60-60 20       2529
M36 o-ring face seal low noise cables 18 VSM36XL-SS-150-18-AC0005-433-39         5098
NW40 flange hermetic cable seal 29 VS26-SS-150-29-RG179-144-QDB 75 ohm 29       0880
2½” o-ring face seal single side connect 29 VS32-SS-150-29-CX-3899940RN 29 COAX     3254
2½” o-ring face seal hermetic cable seal 30 VS32-SS-150-30-RG316-2-2m 30       2482
70mm flange single 32 D38999/20-SS-150-32-RG178-5.3-20278102R18 32 rg178     4470
flange mount single 32 D38999/20-SS-150-32-RG178-5.5-20278102R18 32 rg178     4436
1 7/8″ o-ring face seal hermetic cable seal 32 VS26-SS-150-32-RG178-42T-42T SMB 32 rg178     5219
1⅞” o-ring face seal cable seal 36 VS26-SS-150-4/32-TZ20/TWINAX-3.5M-3.5M 4 20 32 Twinaxial 4383
1⅞” o-ring face seal cable 37 VS26-SS-150-37-MPA08-22T-48T 1   rg 178   3939
NW40 flange hermetic cable seal 38 NW40-SS-150-38-MICTOR-73-24 38       2751
1.25″ piston o-ring seal data bus cable ETFE 38 SP20-E-200-19-TSP22-0.5M-0.5M Cheminax 10599 22 70 ohm     5112
1⅝” o-ring face seal hermetic PTFE 40 VS22-SS-200-20-TSP20-168-72 twisted pair 40 20     4366
1⅝” o-ring face seal hermetic cable seal 40 VS26-SS-150-40-RG178-24-24 40       2561
2½” o-ring face seal cable 40 VS32-SS-150-40-TE12S-10-10m 40 shielded #12 12   4403
NW50 KF50 cable seal low vac 84 NW50-SS-150-72/12-TWINAX/COAX-37T-21.7T 72 TWINAX 12 Coax 5374
1⅝” o-ring face seal hermetic cable seal 72 VS22-SS-150-36TSP-100 OHM TWINAX-5M-5M 72 TWINAX     2791
