Line Bushings Ex-d Flameproof UL 1203 Wires UL94V-O

Request a Quote

PAVE hermetic seals and bi-directional and will seal both pressure and vacuum in either or both directions. For pressures above 300 psi (20 bar), please check with the sales engineer if changing the pressure direction shown on the drawing.

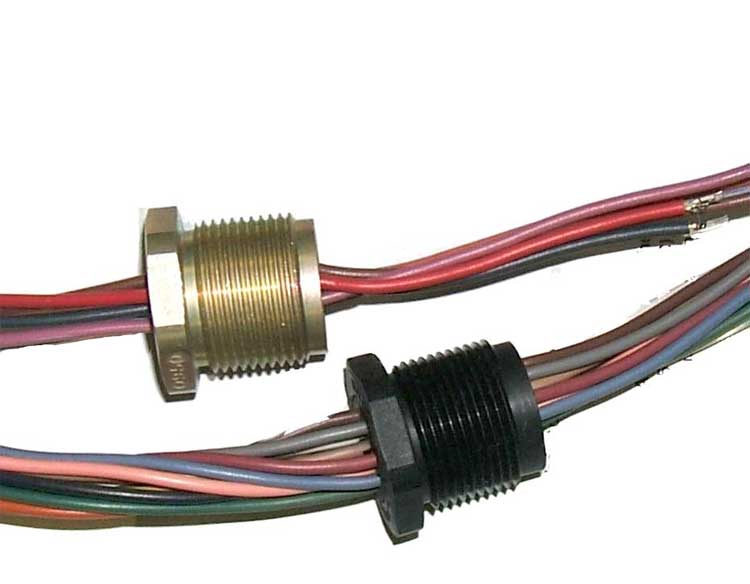

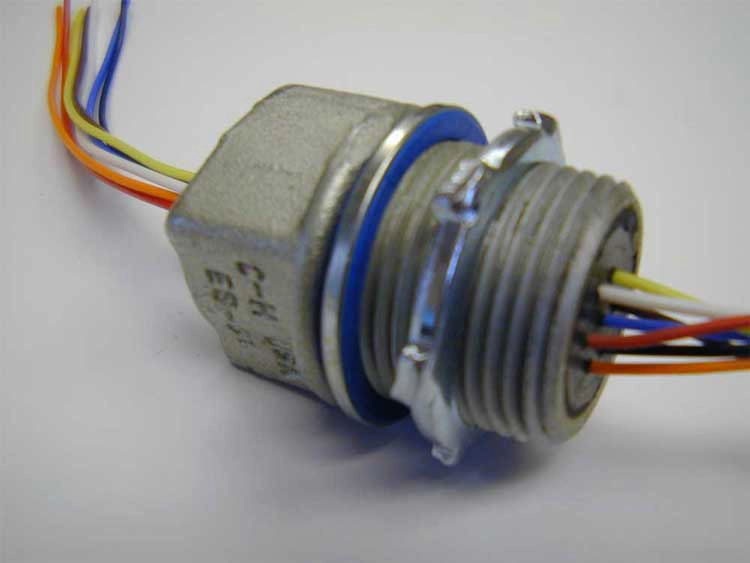

A wide range of either UL 1203 Wires threaded NPT or metric or non-threaded cylindrical metal sleeves, explosion-proof sealed line bushings are available to ATEX, FM, UL and CSA certifications using an almost unlimited choice of wires, cores or cable types, both electrical and fiber optic. -55C to 90C or 200C. EN 60079-0 and EN 60079-1 standards. See below existing line bushing designs with new designs available upon request. PAVE offers hazardous location sealing cable fittings that are explosion-proof, water and oil-tight, dust-ignition proof NPT threaded plated iron alloy ES sealing hub that are potted epoxy electrical wire assemblies. Recognition is available to the requirements for following standards for PAVE-Seal® 200FR hermetic epoxy seals:

  • UL 1203, UL 60079-0,-1,-7
  • UL94V-O flame retardant
  • CAN/CSA C22.2, B60079-7
  • TI value of 90

UL File Number:  E319608

PROJECT SCOPE
The scope of this project will include: Recognition of Model 3352 Sealing Bushing for Use in Class I, Groups C and D; Class II, Groups E, F and G; Class I, Division 2, Groups A, B, C and D Hazardous Locations and ATEX Certification for Protection Methods of Flameproof and Increased Safety (Ex d e IIB).

STANDARD NO.
The following standard will be used:
  • UL 1203 – STANDARD FOR EXPLOSION-PROOF AND DUST-IGNITION-PROOF ELECTRICAL EQUIPMENT FOR USE IN HAZARDOUS (CLASSIFIED) LOCATIONS – Edition 4 – Issue Date 2000-09-01
  • UL 60079-7 – ELECTRICAL APPARATUS FOR EXPLOSIVE GAS ATMOSPHERES – PART 7: INCREASED SAFETY ‘E’ – Edition 2 – Issue Date 2007-03-09
  • CSA C22.2 NO. 30 – EXPLOSION-PROOF ENCLOSURES FOR USE IN CLASS I HAZARDOUS LOCATIONS – Edition 1 – Revision Date 2003-01-01
  • CSA C22.2 NO. 25 – ENCLOSURES FOR USE IN CLASS II, GROUPS E, F AND G HAZARDOUS LOCATIONS (1966 EDITION) – Edition 1 – Issue Date 1966-09-01
  • CENELEC EN 60079-0 – ELECTRICAL APPARATUS FOR EXPLOSIVE GAS ATMOSPHERES PART 0: GENERAL REQUIREMENTS-IEC 60079-0:2004 – Edition 1 – Issue Date 2006-07-01
  • CENELEC EN 60079-1 – EXPLOSIVE ATMOSPHERES – PART 1: EQUIPMENT PROTECTION BY FLAMEPROOF ENCLOSURES “D” – Edition 1 – Issue Date 2007-07-01
  • CENELEC EN 60079-7 – ELECTRICAL APPARATUS FOR EXPLOSIVE GAS ATMOSPHERES. PT. 7, INCREASED SAFETY “E” – Edition 1 – Issue Date 2007-01-01



Explosion Proof Connectors Description Codes



Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.

Installation Port or Size Wire Insulation Hermetic Seal Number of Wires AWG # PAVE Description Codes, Housing & Wires PART-DRAWING #
M16 pvc ATEX Feedthru 4 22 M16-B-150-4-PC20-300-300mm ATEX 3352
½ NPT PTFE feedthru 4 22 PT8TF-SS-200-4-TEE22-24-2 3373
1/2″ mNPT PTFE feedthru 5 1 #18 4 #22 PT8XL-SS-200UL94-1/4-TE18/22-5 5140
1/2″ mNPT PTFE feedthru 7 1 #18m 2 #29 @ #27 2 coax PT8XL-SS-200UL94-1/2/2/2-TE18/20/28/COAX-75-10 5141
1/8″ mNPT PTFE feedthru 5 3 #18 2 #28 3 #18 2 #28 5142
1″ PTFE feedthru 4   PTES31-SG-200-3/1-EE22/RG303 0765
1″ PTFE feedthru 7 22 ES31-SG-200-7-E22-24-51 0769
Custom piston o-ring PTFE feedthru 7 28 FL0712-AL-150-7-EE24-8-24 EXP. PROOF 0710
M24 pvc feedthru 8 20 M24-V-105-8-HARM20-6-5 1204
1″ NPT PTFE feedthru 8   PTES31-SG-200-6/2-EE22/RG303-X-Y 0771
M24 pvc feedthru 12 20 M24-AL-150-12-HARM20-3-4 0840
M24 pvc feedthru 12 20 M24-V-105-12-HAR20-6-5 1512
1¼” NPT SOOW feedthru 12 14 PTN20-PS-200FR-CO9412-54-6 1137
15mm piston seal PTFE feedthru ATEX 15 26 SPF9.5-E-200FR-3/12-EE22/26-16-16 ATEX 3749
15mm piston seal PTFE feedthru ATEX 15 26 SPF8.5-E-200FR-3/12-PC22/26-13SR-12 3755

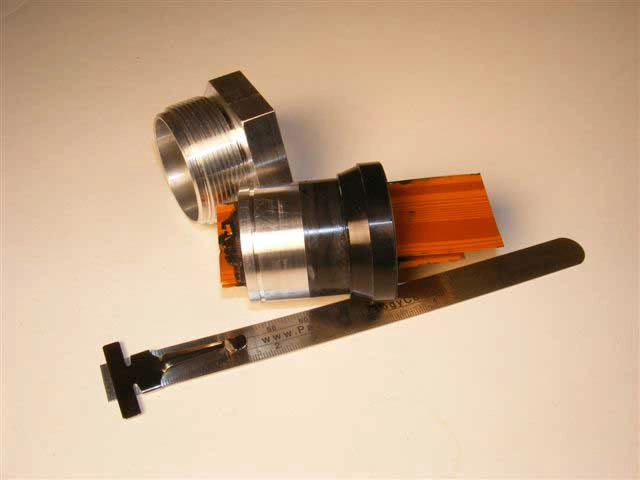

M40 piston o-ring seal Kapton passthru 50 50 ATEX flex cable circuit seal 3684
  Kapton Polyamid piston o-ring   160 SP21.5-E-200FR-2-FLEX ATEX 3745
