PAVE hermetic seals are bi-directional and will seal both pressure and vacuum in either or both directions. For pressures above 300 psi (20 bar), please check with the sales engineer if changing the pressure direction shown on the drawing.

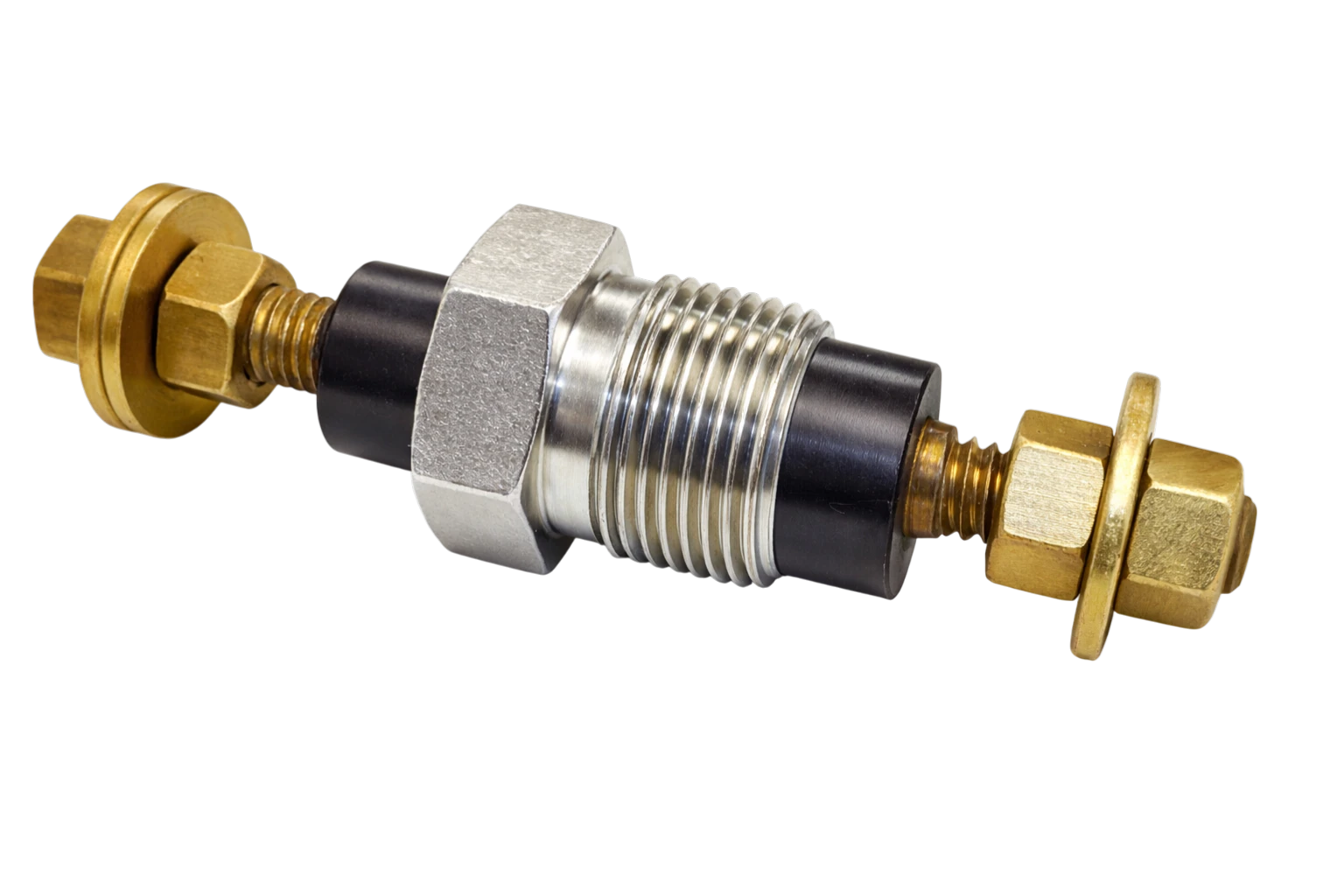

Copper or brass threaded hermetic terminal seals are for the highest electrical ampacity or nickel, aluminum or stainless steel threaded or non-threaded rod pin hermetically sealed feedthrough terminals stud seals are available in a wide variety of styles both standard and custom designed for both low and high operating pressures, vacuums up to 10^-8 Torr, temperature ranges between -200C to 200C, voltages up to 32kV and amperages to 1000 amps. See below standard design threaded hermetic terminal seals drawings and new custom seal designs can also be ordered.
Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.
| Installation Port | Total Terminals or Studs | PAVE Description Codes, Housing & Wires | AWG # | Suggested Max Amperage +600V | DRAWING # |
|---|---|---|---|---|---|
| ½ ” NPT | 1 | PT8-SS-150-1-.25CU-3-3 See Quick Ship List | 0.25 “ | 94 | 1573 |
| 1 ” NPT | 1 | PT16-SS-200HV-.50Cu-2.4-3.0 See Quick Ship List | 0.50 “ | 300 | 1587 |
| ¾ ” NPT | 1 | PT12-SS-200-.5CU-3-2 | 0.50 “ | 300 | 3181 |

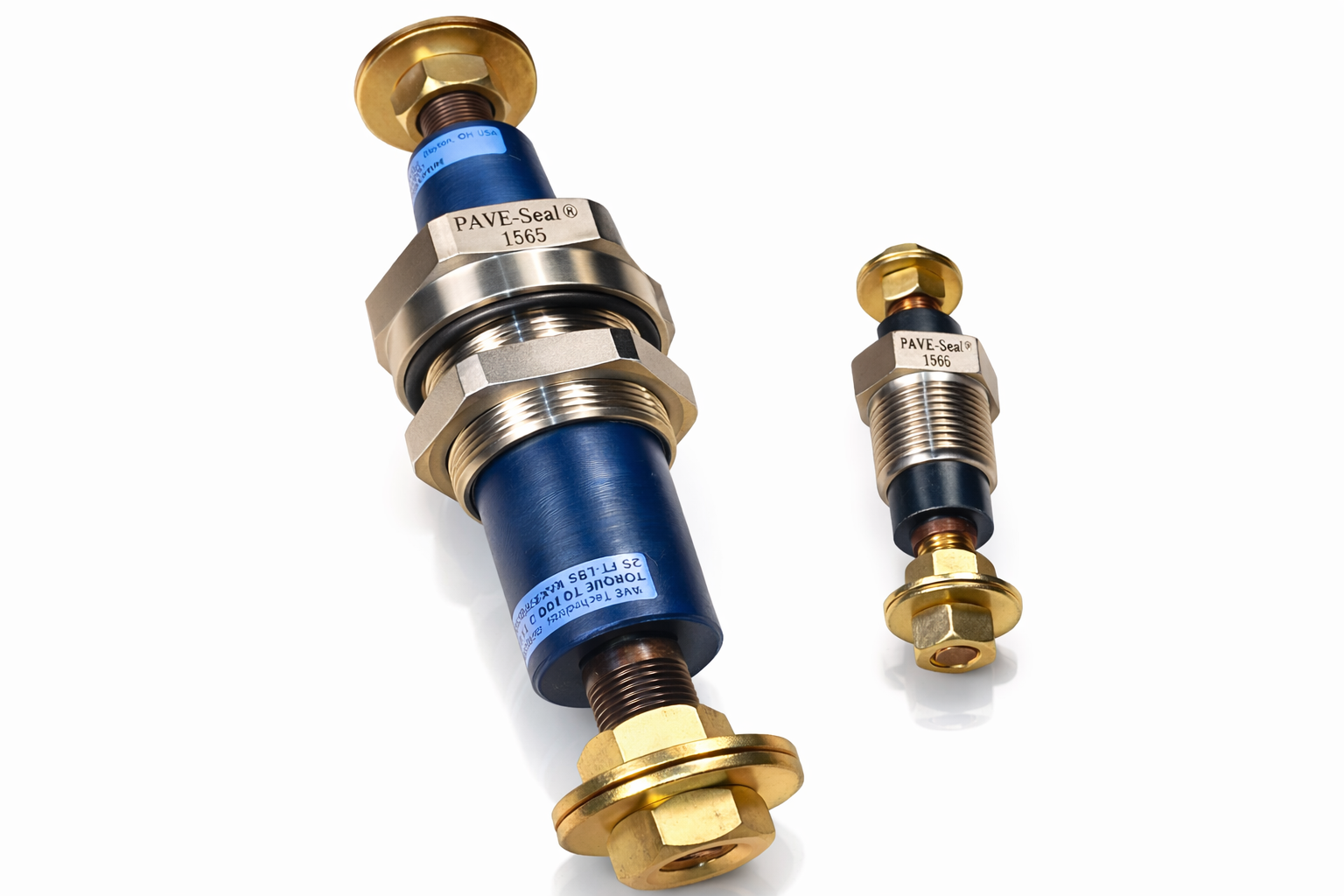

| 1⅞ ” o-ring face seal | 1 | VS26-SS-150-1-.75CU-3.7-3.7 See Quick Ship List | 0.75 “ | 400 | 1565 |
| NW40 KF40 | 1 | NW40-SS-150-1-.75CU-3.5-4.5 | 0.75 “ | 400 | 5034 |
| NW50 Flange | 2 | NW50-SS-150-2-.25CU-2.5-3.3 | .25 “ | 94 | 4056 |
| ⅜ ” NPT | 2 | PT6-B-150-2-NICKEL FILAMENTS | 20 | 7 | 1307 |
| ⅜ ” NPT | 2 | PT6L-SS-80-2-TE18 probe | 18 | 10 | 1340 |
| ⅜ ” NPT | 2 | PT6L-SS-200-2- ALARM PROBE ASY | 24 | 3565 | |
| ½ ” SAE | 1 | SO8-SS-80-1-B6.32CU-1-1 | 0.15 “ | 15 | 2584 |
| ½ ” SAE | 1 | SO8-SS-80-1-B10.32-.5-.5 | 0.17 “ | 20 | 2616 |
| ½ SAE | 1 | SO8-SS-150HV-1-.063NI-.43-.67 | 0.060 ” diameter nickel | 4349 | |
| 9/16 “-20 UN-2A | 1 | SO9-SS-150-1-.25CU-1-1.75 | 0.25 “ | 94 | 4212 |
| 9/16 ” SAE | 1 | SO9-SS-150-1-.39CU-1-1 | 0.30 ” or 7.62mm | 100 | 4051 |
| ¾ ” SAE o-ring | 1 | SO12-SS-200HV-.25CU-.85-.85 | 0.25 “ | 94 | 4721 |
| ¾ ” SAE | 1 | SO12-SS-150-.25CU-.7-.7 | 0.25 | 94 | 2910 |
| ¾ ” SAE | 1 | SO12-SS-150-1-.25-22-33mm | 0.25 | 94 | 3132 |
| 7/8″-14 UNF-2A threads | 1 | SO14L-AL-200-1-.38CU-1-1 | 3/8″ diameter copper rod | 200 | 5647 |
| ½ ” o-ring face seal | 1 | VS8XL-AL-80HV-1-.08CU-1.3-.5 | 12 | 25 | 2053 |
| ¼ ” NPT | 1 | PT4-SS-80-1-.19CU-.94-1.62 | 0.19 “ | 50 | 0926 |
| 2 1/2″ o-ring face seal | 2 | VS32-SS-150-2-SurLok IP67 | 50mm2 copper cable | 200 | 5561 |
| ¾ ” NPT | 1 | PT12-PS-200HV-.38Cu-1-1 See Quick Ship List | 0.38 “ | 200 | 1236 |
| 3/4″mNPT | 1 | PT12-SS-200HV-.38Cu-1.6-1.6 | 3/8″ diameter copper rod | 200 | 5719 |
| 3/4″NPT | 1 | PT12-SS-200HV-.5CU-2-1.75 | 0.50 “ | 200 | 5587 |
| 3/4″mNPT | 1 | PT12-SS-200-.5CU-3-10 | 0.50 “ | 5070 | |
| ¾ ” o-ring face seal | 1 | VS12-SS-200-1-.25CU-3-3 | 0.25 “ | 94 | 0916 |
| 7/8″-14-28 SAE o-ring | 1 | SO14L-SS-150-1-.38CU-1-1 | 3/8″ diameter copper threaded rod | 200 | 5647 |
| 1-3/16 ” SAE | 1 | SO17LH-PS-200-1-.38CU | 0.38 “ | 200 | 2893 |
| 1 ” o-ring face seal | 1 | VS15-SS-150-.38CU-1-1 | 1/2″ copper tubes | 200 | 1444 |
| CF450 Contrlat flange | 2 | CF450-SS-150-2-.5 CU TUBE-4-10 | 0.38 “ | 5553 | |
| 1 ” o-ring face seal | 1 | VS15-SS-80-.38 SS Tube-1-1 | 0.38 “ | 0 | 1568 |
| 1 ” o-ring face seal | 1 | VS15L-SS-150-1-.5CU-2.4-1 | ½” diameter copper rod | 300 | 5447 |
| 1¼ ” o-ring face seal | 1 | VS18-SS-200-.50CU-2.2-2.6 | 0.50 “ | 300 | 917 |
| 1¼” o-ring face seal jam nut | 1 | VS18-SS-150-1-.5CU-2.4-1 | ½” copper rod | 300 | 5314 |
| M45-6g thread o-ring face seal | 1 | VSM45XL-SS-150-1-.67CU-3.5-2 | 0.67 inches 17mm OD copper rod | 350 | 5249 |
| 1½ ” NPT | 1 | PT24-SS-200HV-1-.75CU-3.6-7.9 PEEK 240C | ¾ ” copper rod | 400 | 4743 |
| 1½ ” NPT | 1 | PT24-SS-150HV-1-0.75cu-4-4 | 0.75 “ | 400 | 1629 |
| 2½ ” o-ring face seal | 1 | VS32DSL-SS-200HV-1-1CU-8-4 | 1.25 “ | 800 amps | 3344 |

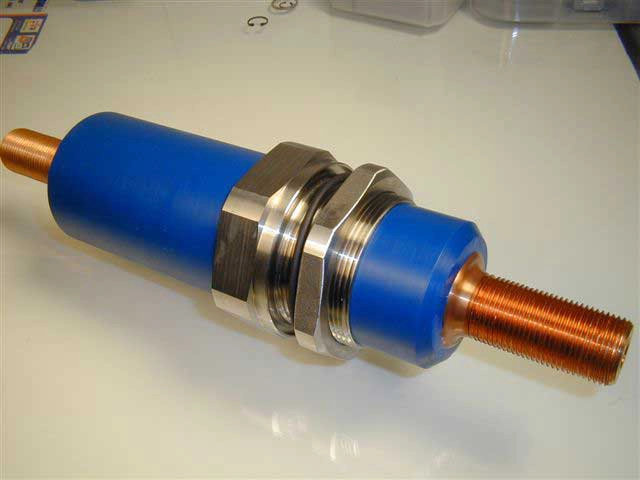

| 2½ ” o-ring face seal | 1 | VS32-SS-200HV-1-1.5CU-4.25-3 | 1.50 “ | 1000 amps | 3296 |
| 3½ ” ASAS flange | 1 | FL2498-PS-200FR-1.50Ni-7-16 | 1.5 “ | 700 | 2477 |
