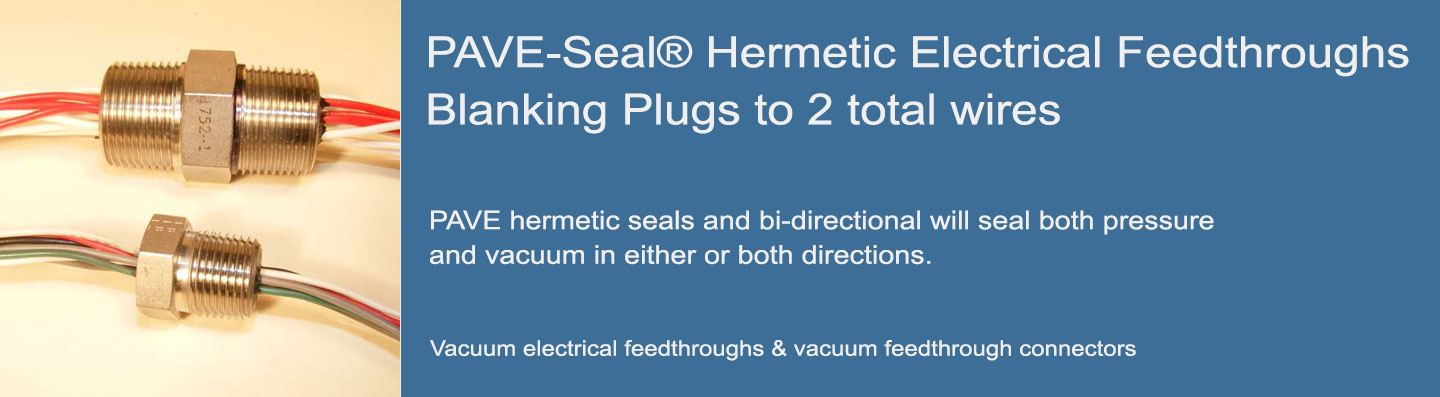

Hermetically Sealed Wire or Cable Harness Feedthrough Bulkhead Connectors

Plugs to 2 total wires

Choose the number of wires required

3 – 5 wires
6 – 13 wires
14 – 900 wires

PAVE hermetic seals and bi-directional and will seal both pressure and vacuum in either or both directions. For pressures above 300 psi (20 bar), please check with the sales engineer if changing the pressure direction shown on the drawing.

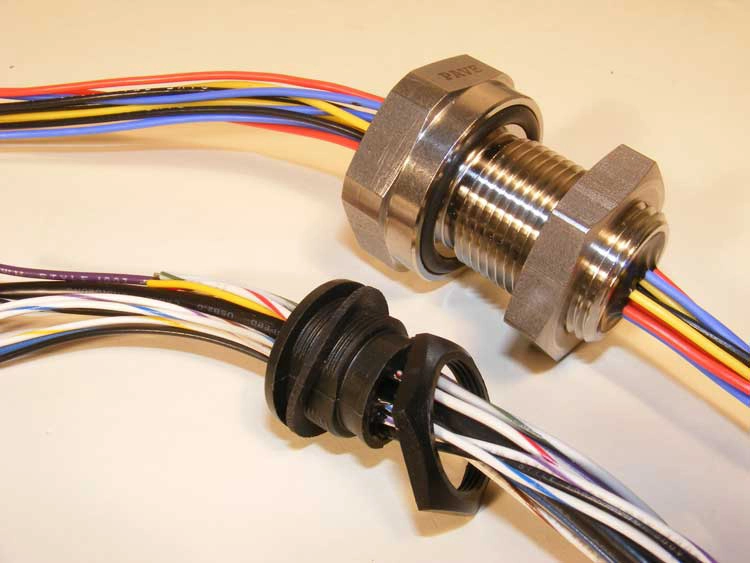

Any type of commercial or military type insulated electrical wire or jacketed cable is available as a hermetic, gas-tight, fluid-tight, vacuum-tight bulkhead pass through seal for both low and high Pressure And Vacuum Electrical seals including bi-directional pressure direction uses. Operating temperatures can vary and be modified depending on the design and materials from -200C to 200C depending upon the design and customer requirements. All our seals are hermetic, meaning they will pass a very low helium leak test (10^-9cc/sec depending on design), regardless of the leak test shown on the drawings that also can be modified. In most cases, the seals are also capable of significantly higher pressure as well than what may be shown on the drawings if so requested. There is no detectable leakage of gasses or fluids anywhere in the seal including through the interior of the wires and the wires can be cut shorter with no effect on the seal.

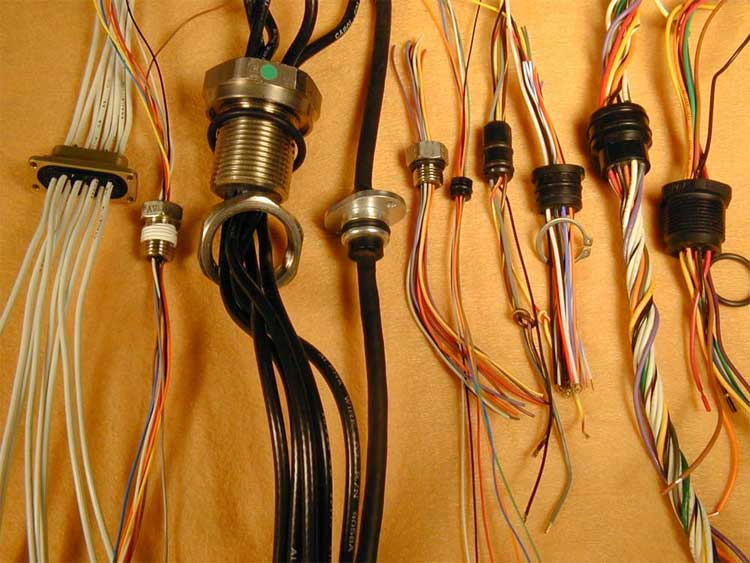

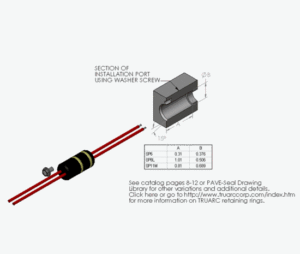

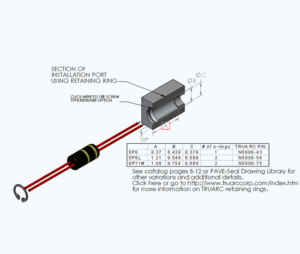

Both standard and custom design hermetic seal designs are available for both small and large quantities with a variety of mounting styles and cost-efficient and compact high wire density space-saving designs, most using o-rings either piston or face seal with NPT seals and electron or laser weld designs also available. Our hermetic epoxy wire seals are highly resistant to chemicals of all types including solvents, fuels, oils and gasses and are NASA and AMAT approved for low outgassing in high vacuums to 10^-8 Torr. Epoxy samples are also available for customer testing as well.

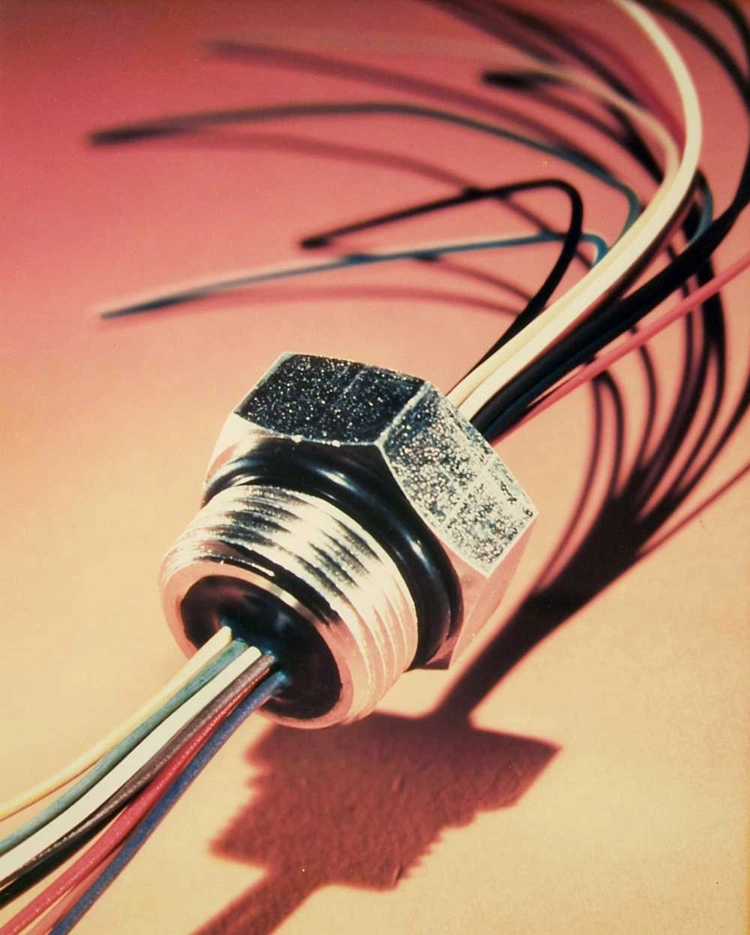

The below listing has PDF links to our current designs, arranged in ascending order of the number of wires or conductors grouped in mounting style. If you need a customized hermetic wire feedthrough seal, please either mark up any PAVE drawing for your desired changes or send your own drawing or sketch for quoting and we will be glad to quickly assist you in your hermetic seal design requirements.
Hermetic Electrical Feedthroughs

Use your keyboard’s shortcut ctrl+ F buttons to bring up your browser’s find dialog box to then enter and go directly to a particular part-drawing #.

Summarized listing of Hermetic Designs by number of conductors, sizes and types

Plugs to 2 total wires

Thumbnail Installation Wire Type Total Wires PAVE Description Wires 1 AWG # Wires 2 AWG # Part #
VS15L-SS-150-PLUG 1″ O-ring face seal none 0 VS15L-SS-150-PLUG blanking plug         2442

3852

1¼” o-ring face seal none 0 VS18-SS-150-PLUG blanking plug 0       3852

2030

1 ⅝” O-ring face seal none 0 VS22-E-150-PLUG blanking plug 0       2030

2054

1 7/8″ o-ring face seal none 0 VS26-E-150-PLUG blanking plug 0       2054

2785

2½” o-ring face seal none 0 VS32-E-150-PLUG blanking plug         2785

4864

2¾” o-ring face seal none 0 VS44-SS-150-PLUG blanking plug         4864

1708

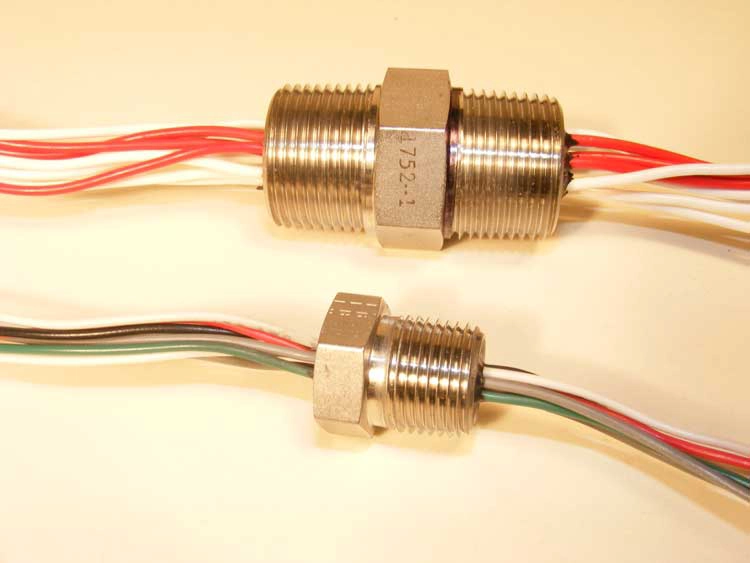

½” NPT PTFE 2 PT8-SS-150-2-TEE14-10-10 2 14     1708

1575

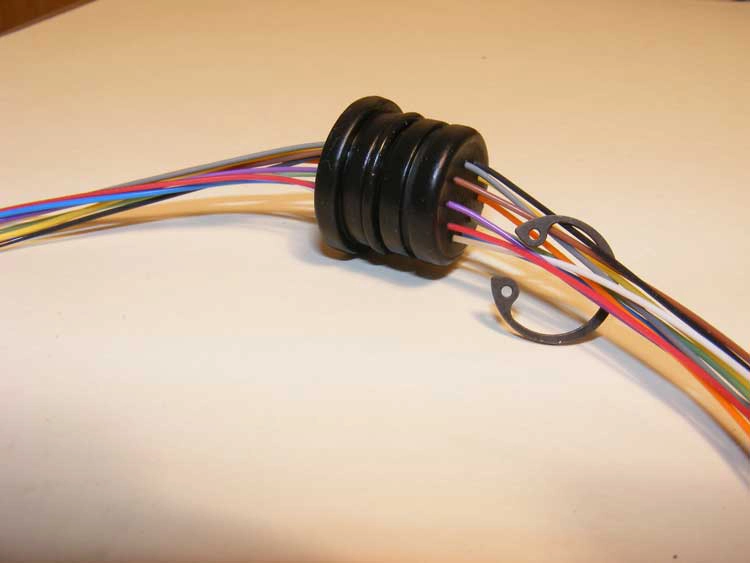

¾” Piston O-ring PTFE 4 SPF12-E-150-4-TEE10-24-36 4 10     1575

1632

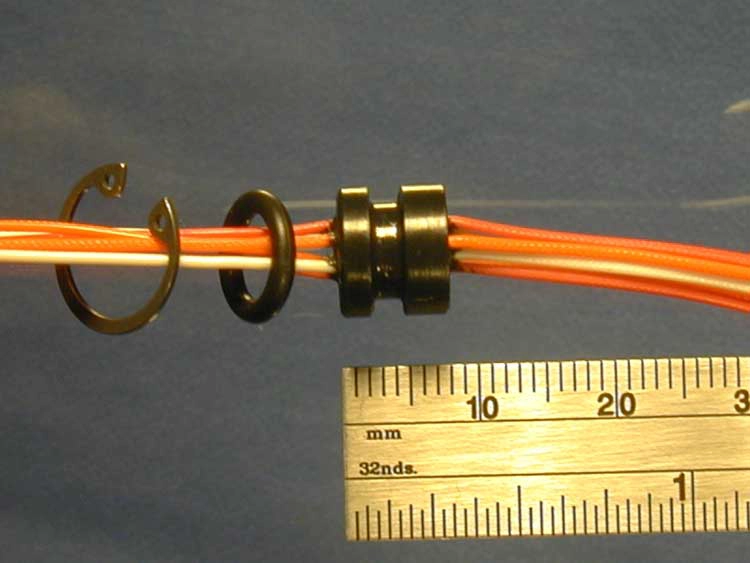

⅜ Piston o-ring PTFE 6 SP6-E-150-6-TE28-50-50cm 6 28     1632

1588

½” NPT PTFE 9 PT8-SS-200-9-TZ22-24-24 9 22     1588

2104

¾” Piston o-ring PTFE 10 SPF12-E-150-10-TE28-12-10 10 28     2104

2189

1″ Piston 0-ring PTFE 12 SP16-E-150-12-TEE18-24-24 12 18     2189

1649

1″ o-ring face seal PTFE 12 VS15L-SS-150-12-TEE20-48-48 12 20     1649

1872

1″ o-ring face seal PTFE 20 PT15-AL-80-20-TE22-48-48 20 22     1872-1

4644

¼” NPT PTFE 1 PT4-SS-150-1-TE20-25-25 1 20     4644

2408

½” NPT PVC 1 PT8-SS-80-1-PC2GRN-120-240 1 2     2408

2508

¾” NPT nipple PTFE 1 PTN12-SS-200-1-TE18-12-24(20) 1 18     2508
  ⅜” SAE PTFE 1 SO6-B-80-1BLK-TEE16-15-10 1 16     047C

3811

7/16″ -20 SAE o-ring PTFE 1 SO7-SS-150-1-TEE12-48-24 1 12     3811

2005

¼” Piston o-ring PTFE 1 SP4S-E-150-1-TE22-12-60 1 22     2005

1870

⅜” Piston o-ring PTFE 1 SP6-E-150-1-TE20-25-25 1 20     1870

5050

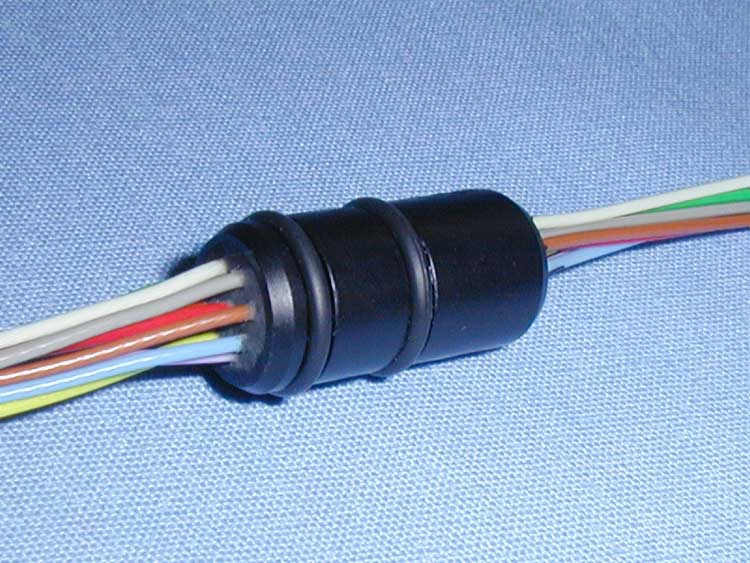

1/2″ piston o-ring seal ETFE 1 SP8A-E-150-1-TZ16-10-10 1 16     5050

2631

½” Piston o-ring PTFE 1 SP8S-E-150-1-R2950062-15-15 1 16     2631

1836

5/16″ Piston o-ring PTFE 1 SPF5L-E-150-1-TEE18-12-12 1 18     1836

2073

.13″ bonded PVC 1 TP1-E-150-1-PC30-4-4 1 30     2073

2111

½” o-ring face seal PTFE 1 VS8-SS-150-1-TEE12-72-24 1 12     2111

4022

1 ⅞” o-ring face seal   0 VS26-SS-150-PLUG 0       4022

3443

.61″ o-ring face seal PVC 2 CON610S-N-150-2-PC26-6-10 2 24     3443

4154

0.81″ o-ring face seal PVC 2 CON610S-N-150-2-PC26-6-7.5 2 26     4154

5013

11.5mm flange PTFE 2 FL4.9-V-150-2-TE30-12-12 Vespel 2 30     5013

2720

Square flange PTFE 2 FL/PTF8-AL-150-2-TE14-3-2.5 2 14     2720

2406

Flange mount PVC 2 MT-SS-200FR-2-KP26-95mm-BLADES 2 26     2406

1658

1″ NPT PVC 2 PT16-B-4-ALPHA 5122C-120-30 2 22     1658

900

⅛” NPT PTFE 2 PT2 SS-80-2-TEE22-20-8 2 22     900

1676

⅛” NPT PVC 2 PT2-B-80-2-PC24-6-6 2 24     1676

2021

⅛” NPT PVC 2 PT2-SS-80-2-PC22-4.5-4.5 2 22     2021
  ⅛” NPT PTFE 2 PT2-SS-80-2-TEE22-6.0-6.0 2 22     2182
  3″ NPT PVC 2 PT32-S-80-2-IPC24-60-84 2 TANK PLUG 2 24     775

3415

⅛” NPT PTFE 4 PT2-SS-200-2/1P-TE24/KT30-6-6 2 24   Type K 3415

4728

¼” NPT PTFE 3 PT4-SS-200-1-TSP26-24-24 twisted shielded pair 2 26     4728

2324

¼” NPT PTFE 2 PT4-B-150-2-TET28-.29GT-2.25 2 28     2324

1515

¼” NPT PTFE 2 PT4-SS-200-1-TSP20/LOOP-1.75-2.5 2 20     1515-1

3730

⅜” NPT PTFE 2 PT6-SS-150-2-TE18-12-12 2 18     3730

1506

⅜” NPT PTFE 2 PT6-SS-150-2-TE14-84-36 2 14     1506

2968

½” NPT PTFE 2 PT8-SS-150-1TSP-TEE18-12-12 2 18     2968

3406

1″ NPT PTFE/PVC 2 PT16-SS-150-1TP-TX22S/ANX22-24-120 2 22     3406

2243

¾” NPT Kapton 2 PTN12-SS-200-2-8K-24-216 2 8     2243

3351

¾” NPT Polyolefin 2 PTN12-SS-150-2-XLPO12-24-24 2 12     3351

3405

1″ NPT PTFE/PVC 2 PTN16-SS-150-2-PC/TZZ18-1200-24 2 18     3405

2337

1″ NPT TPE 2 PTN16-SS-150-2-Alpha45052-24-24 2 18     2337

1756

1″ NPT nipple   2 PTN16-SS-200-2-TEE10-36-240 2 10     1756
  ¾” SAE/NPT PTFE 2 SO12/PT12-SS-150-2-TEE18-24-24 2 18     180

2297

¾” SAE PTFE 2 SO12-SS-80-2-TE12-60-60cm 2 12     2297
  1-1/16″ SAE PTFE 2 SO16-SS-200-2-TEE8-36-18 2 8

4388

5/16″ 24 UNF-2A SAE ETFE 2 SO5-AL-150-2-TZ22-4-4 2 22     4388

3272

5/16″ SAE PTFE 2 SO5-SS-150-2-TE26-18-.02 2 26     3272

2031

5/16″ SAE PTFE 2 SO5-SS-150FR-1TP-TE24-12-4 2 24     2031

4495

½” SAE o-ring PTFE 2 SO8-SS-150-1TSP-TE22-36-36 twisted shielded pair 2 22     4495

1652

½” SAE ETFE 2 SO8-SS-150-2-TZ22-18-18 2 22     1652

1652

½” SAE ETFE 2 SO8-SS-150-2-TZ22-72-36 2 22     1652-2

2585

½” SAE PTFE 2 SO8-SS-80-2-TE18-24-24 2 18     2585

3696

½” SAE o-ring PTFE PTFE2 shielded SO8-SS-150-1TSP-TE20-20-20 2 20     3696

4495

½” SAE o-ring seal PTFE 2 SO8-SS-150-1TSP-TE22-36-36 shielded 2 22     4495

4557

½” SAE o-ring seal PTFE 2 SO8-SS-150-2-TE22-24-24 2 22     4557

1660

½” SAE PTFE 2 SO8-SS-80-2-TE22-6-6 2 22     1660

2782

1-1/16″ SAE PTFE 2 SO16-SS-200-2-TEE8-36-18 2 8     2782

2335

1″ Piston o-rings PTFE 2 SP16-E-150-2-TEE10-16-16 2 10     2335

2128

Ferrule PVC 2 SP1TP-U-100-2C-CW3732REV1-.7-96 2 26     2128

2591

5/16″ Piston o-ring PTFE 2 SP5-P-150-2-TE28-6-6 2 28     2591

1398

5/16″ Piston o-ring PTFE 2 SP5-P-150-2-TEE26-15-5ST 2 26     1398

1877

5/16″ piston o-ring PTFE 2 SP5P-E-150-2-XLP22-.3M-.3M 2 22     1877
  5/16″ Piston o-ring PTFE 2 SP5-PH-150-2-TE28-6-6 2 28     1712

4698

0.310″ Piston o-ring seal PTFE 2 SP5-P-150-2-TEE26-250-60-250mm double wall seal 2 26     4698

3587

⅜” Piston o-ring ETFE 2 SP6-E-150-2-TZZ24-50-50CM 2 24     3587

1546

⅜” piston o-rings PVC 2 SP6-E-150-2-PC24-12-12 4 24     1546

2633

⅜” Piston o-ring PTFE 2 SP6-E-150-2-TE22-12-12 2 22     2633

4642

⅜” Piston o-ring PTFE 2 SP6-E-150-2-TE22-300-12 2 22     4642

1735

⅜” Piston o-ring PTFE 2 SP6-E-150-2-TE24-40CM-40CM 2 24     1735

2771

⅜” Piston o-ring ETFE 2 SP6-E-150-2-TZ22-6-30 2 22     2771

1598

⅜” Piston o-ring PTFE 2 SP6-E-200-1TP-TE26-6-24 2 26     1598

4580

⅜” Piston o-ring PPE 2 SP6L-E-150-2-mPPE26-96-48         4580

3780

⅜” Piston o-ring PTFE 2 SP6-E-200-2-TE22-3-28 2 22     3780

1847

⅜” Piston o-ring PTFE 2 SP6-E-200-2-24-T 2 24     1847

4773

9.42mm ETFE 2 SP6X-E-200UL94-2-TZ22-10-10 5k psi 2 22     4773

4843

⅜” Piston o-ring PTFE 2 SP6H-E-200UL94-2-TZ26-12-12 25k psi 2 26     4843

3764

9.42mm ETFE 2 SP6L-E-200-2-TFEMF24-20-8 2 24     3764

3764

⅜” Piston o-ring PTFE 2 SP6L-E-200-2-TFEMF24-20-8 2 24     3764

3340

3/8″ piston o-ring seal PTFE 2 SP6X-E-200UL94-2-TE26-3-12 10k psi STOCK 2 26     3340

1381

.434″ Piston o-ring PTFE 2 SP7L-E-150-2-TEE20-12-12 2 20     1381

452

.434″ Piston o-ring PTFE 2 SP7L-E-200-2/1P-TE20/KT20-5/4.1-10 2 20     452

4664

½” Piston o-ring PTFE 2 SP8C-E-200UL94-2-TE14-4-10 2 14     4664

3470

½” Piston o-ring PTFE 2 SP8C-E-200 UL94-2-TE18-2-34 2 18     3470

3635

½” Piston o-ring PTFE 2 SP8C-E-200UL94-2-TE18-2-21 hi-test 2 18     3635

3451

½” Piston o-ring PTFE 2 SP8C-E-200-2-TEE18-1-4 2 24     3451

3485

½” Piston o-ring   2 SP8C-E-200-2-TE18-1-34 2 18   20 million pressure cycles! 3485

3578

½” Piston o-ring seal PTFE 2 SP8C-E-200-2-TEE18-3-4 2 18     3578

3678

½” piston o-ring PTFE 2 SP8C-E-200UL94-2-TE18-2-34 2 18     3678

4195

½” Piston o-ring PTFE 2 SP8C-E-200UL94-2-TEE18-2-21         4195

4347

½” Piston o-ring polyamide 2 SP8H-E-200-2-K22-35-6 7k psi 2 22     4347

3396

½” Piston o-ring Sensor 2 SP8HP-E-200-2-TE24-PCB-1 2 18     3396

2055

½” Piston o-ring PTFE foil 2 SP8/83-E-150-2SJ-TE18-12-32 2 18     2055

760

½” Piston o-ring PTFE foil 2 SP8/83-E-150-2SJ-TEE20-3-32 2 20     760

1368

½” Piston o-ring PVC 2 SP8L-E-150-2-PC16-4-6 2 16     1368

3713

½” Piston o-ring ETFE 2 SP8L-E-200UL94-2-TZZ18-50cm-200cm 2 18     3713

1693

½” Piston o-ring PVC 2 SP8L-E-150-2-PC18-4/5-10 2 18     1693

2624

½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ16-200-150mm 2 16     2624

2918

½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ16-4-6 2 16     2918

2550

½” Piston o-ring PTFE 2 SP8L-E-80-2-TE16-4-6 2 16     2550
  ½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ18-4-10 2 18     2620

2752

½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ18-4-20 2 18     2752

2390

½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ18-6-12 2 18     2390

1738

½” Piston o-ring PVC 2 SP8L-E-80-2-PC18-10-9 2 18     1738

3660

½” Piston o-ring PVC 2 SP8L-E-150-2-PC20-6-6 2 20     3660

3813

12.57mm Piston o-ring PVC 2 SP8L-E-150-2-PC26-5-5 2 26     3813

4151

½” Piston o-ring PTFE 2 SP8M-E-150-2-IPC14-7-7 2 14     4151

3555

½” Piston o-ring PTFE 2 SP8M-E-200-2-EE18-37-12 2 18     3555

2131

½” Piston o-ring polyethelene 2 SP8M-E-150-1TSJP-PE22-297-20 2 22     2131

4151

12,57mm piston o-ring seal Irrad PVC 2 SP8M-E-150-2-IPC14-7-7 2 14     4151

1762

½” Piston o-ring PVC 2 SP8M-E-150FR-2-IPC14-12-12 2 14     1762

4536

½” Piston o-ring ETFE 2 SP8S-E-150-2-TZ18-18-6 2 18     4536

1383

½” Piston o-ring polyethelene 2 SP8S-E-100-2-PE20-20CM-20CM 2 20     1383

2177

½” Piston o-ring polyethelen 2 SP8S-E-150-1TJSP-PE22-306-2 2 22     2177

2058

½” Piston o-ring PTFE 2 SP8S-E-150-2-TE28-6-6 2 28     2058

1977

½” Piston o-ring PTFE 2 SP8S-E-200-2-TE22-8-18 2 22     1977

1874

½” Piston o-ring PVC foil 2 SP8S-E-80-1TSJP-PC22-120-3 2 22     1874

3528

14.12mm Piston o-ring PTFE 2 SP9-E-200-2-TEE12-4-4 2 17     3528

4966

14mm Piston o-ring PTFE 2 SP9.3/4.6-E-150-2-TE14-2-38 2 14     4966

3656

9/16″ piston o-ring ETFE 2 SP9-E-150-2-TZ16-8-6 2 16     3656

4350

½piston o-ring ETFE 2 SP9-E-200UL94-2-TZ16-6T-5T 2 16     4350

4618

14mm piston o-ring seal PTFE UL1659 2 SP9-E-200UL94-2-PTFE16-6T-5T 16       4618

3581

piston o-ring PTFE 2 SP11M-E-200-2-TZ22-6-12 2 22     3581

4493

17.37mm piston o-ring ETFE 2 SP11M-E-150-2-TZ14-24-24 2 14     4493

4544

17.37mm piston o-ring ETFE 2 SP11S-E-200-2-TZ22-6-17 2 22     4544

4218

17.46mm piston o-ring PTFE 2 SP11/10-E-200UL94-2-TEE18-1-4 wire splice joint double seal 2 18     4218

2524

¾” Piston o-ring PVC 2 SPF12-E-150-2-PC12-12-12 2 12     2524

1673

½” Piston o-ring PTFE 2 SPF7.5-PH-150-2-TE18-5-12 2 18     1673

4841

27,49mm piston o-ring GXL 2 SPF14-E-150-2-GXL12-32-60 2 12     4841

5125

1″ piston o-ring seal silicone hi-flex 2 SP16-E-150-2-S8-14-20 2 8     5125

2033

.217″ Piston o-ring PTFE 2 TP2-E-150-2-PC30-4-4 2 30     2033

3588

¾” o-ring face seal PTFE 2 VS12-SS-150-2-EE24-24-varian 103488001 2 24     3588

3877

½” o-ring face seal ETFE 2 VS12-AL-200-2-TZ14-12-24 2 14     3877

2725

¾” o-ring face seal PTFE 2 VS12L-SS-150-2-TE12-36-36 2 12     2725

2381

¾” o-ring face seal PTFE 2 VS12L-SS-80-1TSP/2P-TE16/KT27-6-6 2 16     2381
  ⅞” o-ring face seal Tubing 2 VS14-B-150-1/1-TUBE/TUBE-36-X probe 2       2215

2955

1″ o-ring face seal Fiber opt 2 VS15L-SS-150-1-PROFIBUS/DP-3M-3M 2 22     2955

2090

1 ¼” o-ring face seal PVC 2 VS18S-SS-150-2-PC8-10-9 2 8     2090
  ½” o-ring face seal PVC 2 VS8-B-80-2-UL1061-230M-160M UL1061=PC28 2 22     1697
  ½” o-ring face seal PTFE 2 VS8-SS-200FR-1TSJP-2FEP22-6-31 2 22     1397
  ½” o-ring face seal PVC 2 VS8-SS-80-2-PC26-12-4 2 26     1172

1805

½” o-ring face seal PTFE 2 VS8-SS-80-2-TEE18-30-40CM 2 18     1805
